Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | 36 |
| Paso (mm/mil) | 1,00 / 39 |
| Temperatura | -45°C...+250°C |

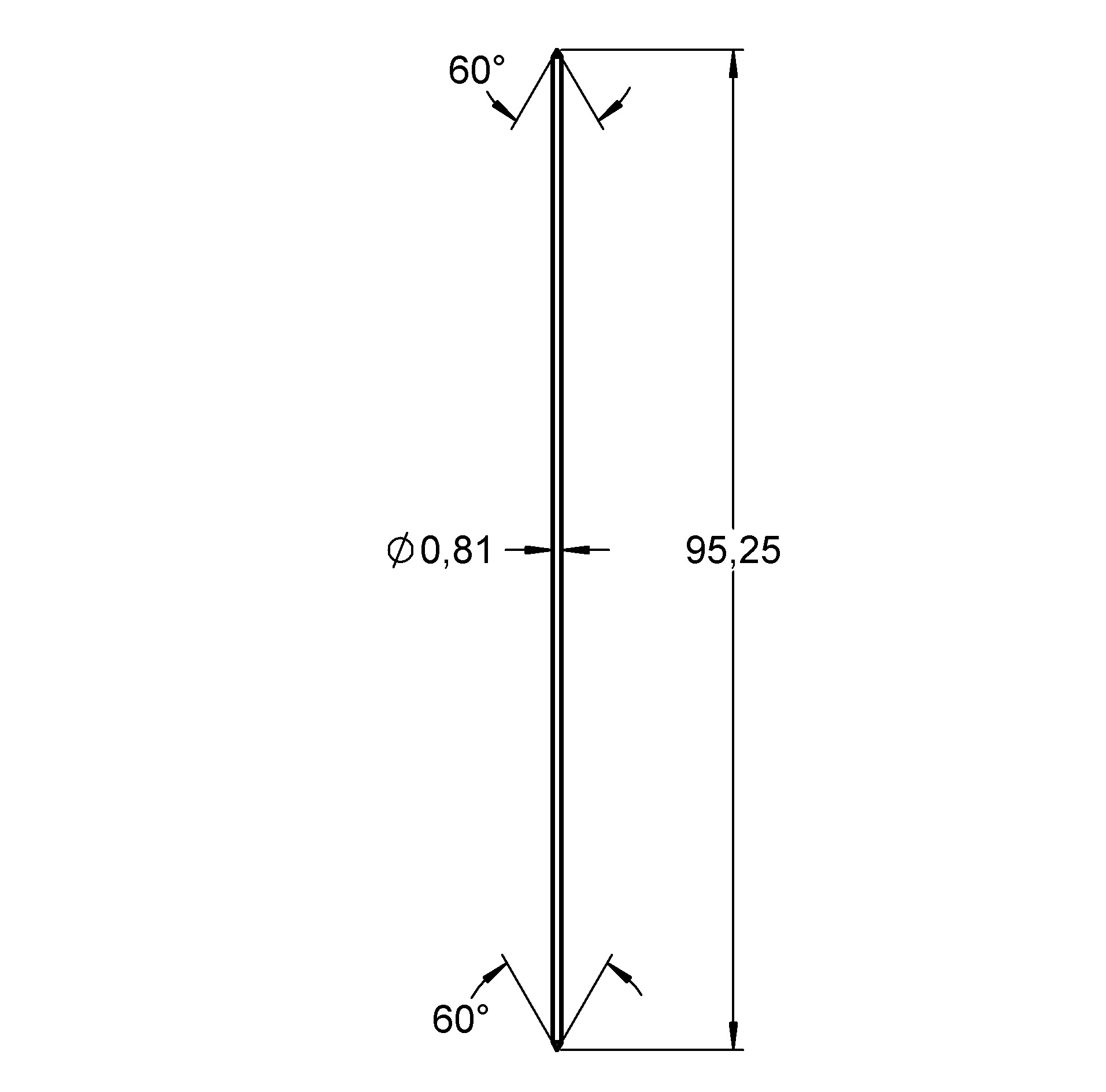

| Dimensiones | |
|---|---|
| Longitud total (mm) | 95.25 |
| Diámetro del estilo de punta (mm) | 0.81 |
| Diámetro del casquillo (mm) | 0.81 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 03 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 50 |
Gráficos
Beschreibung des Produkts

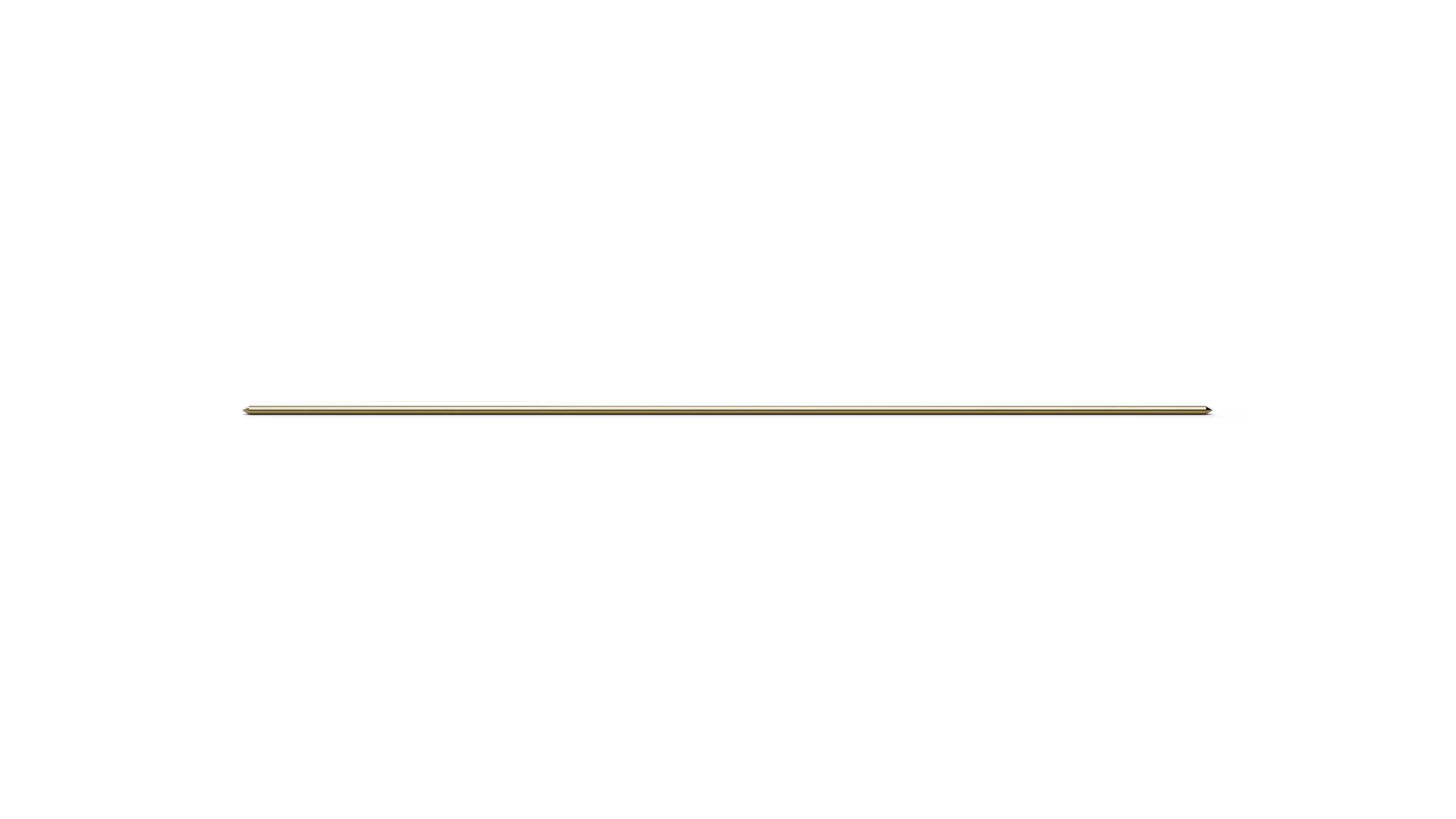

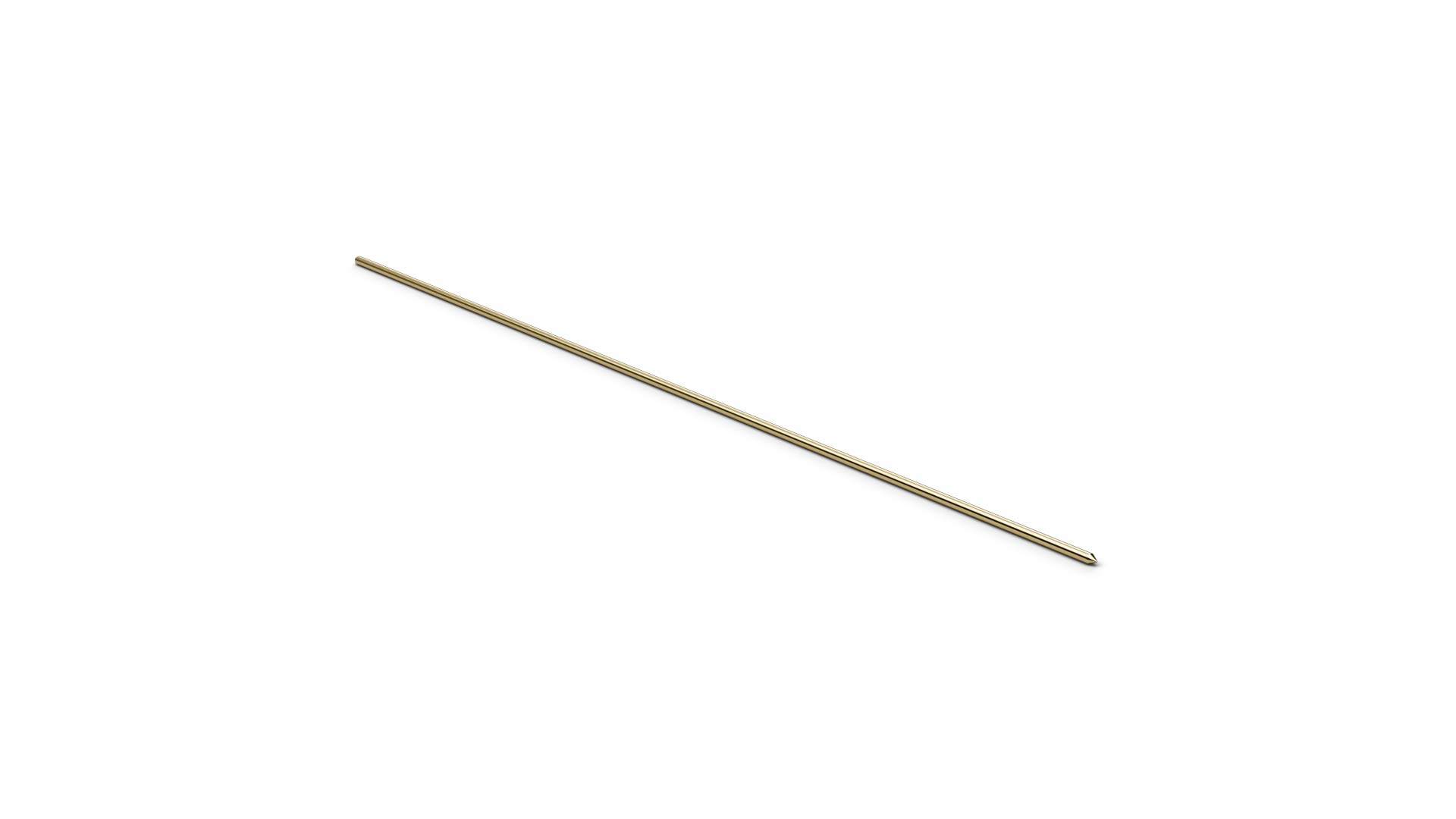

The Interface Probe 36085 (item number 1108326) provides a repeatable electrical connection within the test interface. 36085 supports defined transfer of test and measurement signals between the fixture and test system. The design combines a pitch of 1.00 / 39 with tip style 03 (Conical 60°) and a tip diameter of 0.81 mm. For 36085, the specified continuous current is 3 A. The plunger in 36085 is made of steel and is longtime gold-plated.
