Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F875-NO |
| Paso (mm/mil) | 2,54 / 100 |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 57.1 |
| Altura sobresaliente (mm) | 16.7 |
| Diámetro del estilo de punta (mm) | 0.8 |
| Diámetro del casquillo (mm) | 1.65 |
| Diámetro del collar (mm) | 2.3 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 200 |
| Fuerza del resorte (cN) | 500 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Rosca | M1,6 |
| Tamaño de herramienta (mm) | 1,7 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 65 |
| Recorrido del interruptor (mm) | 1.5 |
| Corriente continua (A) 2 | 1 |
Gráficos
Beschreibung des Produkts

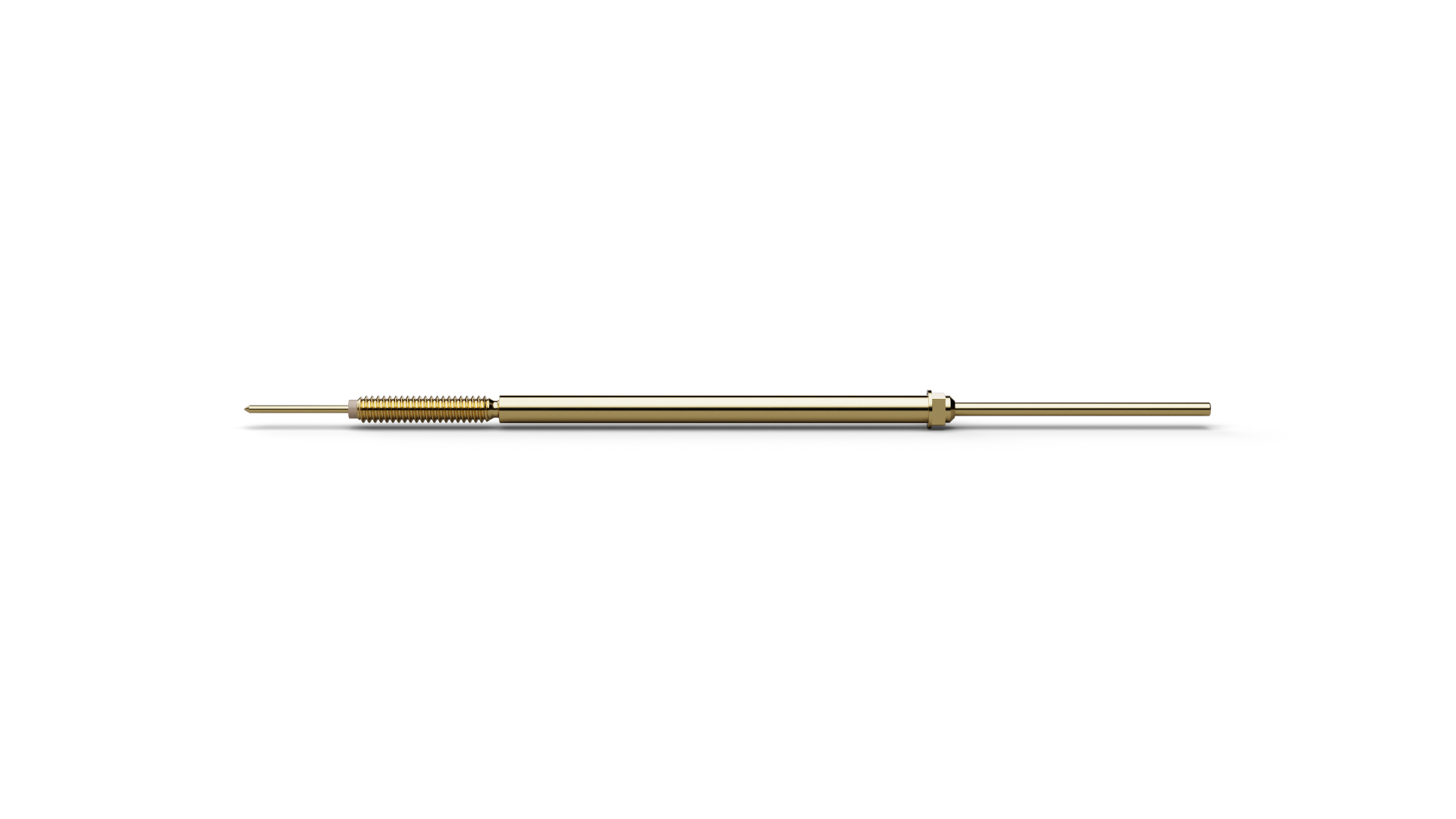

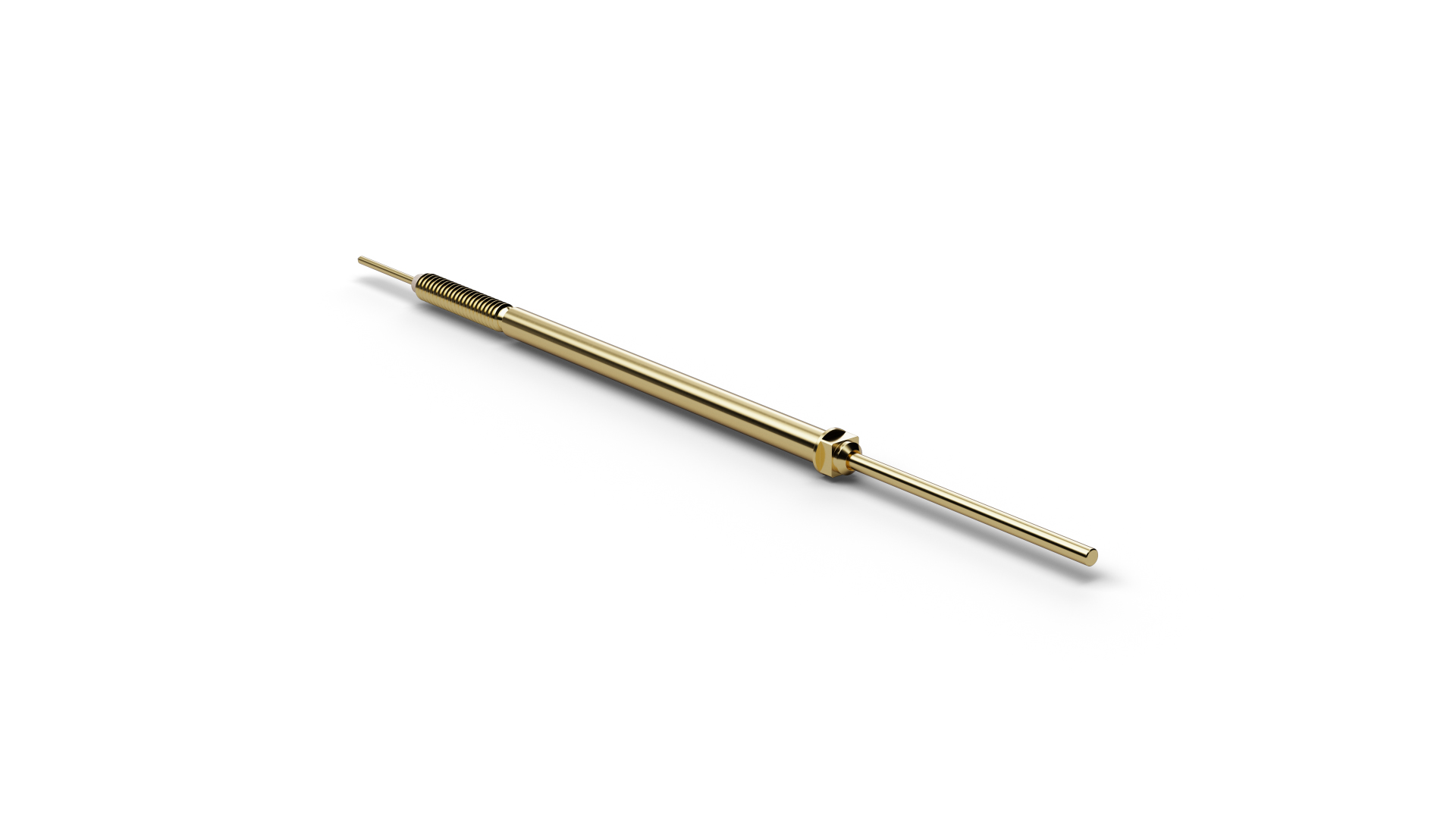

The Normally Open Switch Probe F87516B080G500L (item number 1136205) combines spring-loaded contacting with a defined switching or sensing function. F87516B080G500L combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F87516B080G500L, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F87516B080G500L, spring force is 500 cN at a nominal travel of 4 mm. The electrical rating of F87516B080G500L combines 5 A continuous current with 65 mΩ typical contact resistance. F87516B080G500L combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 0.8 mm.
