Datos técnicos
| General | |
|---|---|
| Estructura | Coaxial Probe |
| Tipo/Familia | HF77 |
| Paso (mm/mil) | 4,00 / 157 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 31 |
| Altura sobresaliente (mm) | 20 |
| Diámetro del estilo de punta (mm) | 2.7 |
| Diámetro del casquillo (mm) | 3.4 |
| Diámetro del estilo de punta (mm) 2 | 0.45 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Estilo de punta 2 | 16 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Material del émbolo 2 | Beryllium copper |
| Recubrimiento del émbolo 2 | Gold |
| Material del resorte 2 | Spring steel |
| Recubrimiento del resorte 2 | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 280 |
| Fuerza del resorte (cN) | 420 |
| Recorrido nominal (mm) | 2.5 |
| Recorrido máximo (mm) | 3.3 |
| Conexión | Plug |
| DUT | KET MINI FAKRA |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 0.5 |
| Impedancia (Ω) | 50 |
| Frecuencia (GHz) | 12 |
| Corriente continua (A) 2 | 0.1 |
| Especificaciones de contactos internos | |
|---|---|
| Recorrido nominal (mm) 2 | 0.5 |
| Recorrido máximo (mm) 2 | 1.8 |
| Precarga (cN) 2 | 95 |
| Fuerza del resorte (cN) 2 | 120 |

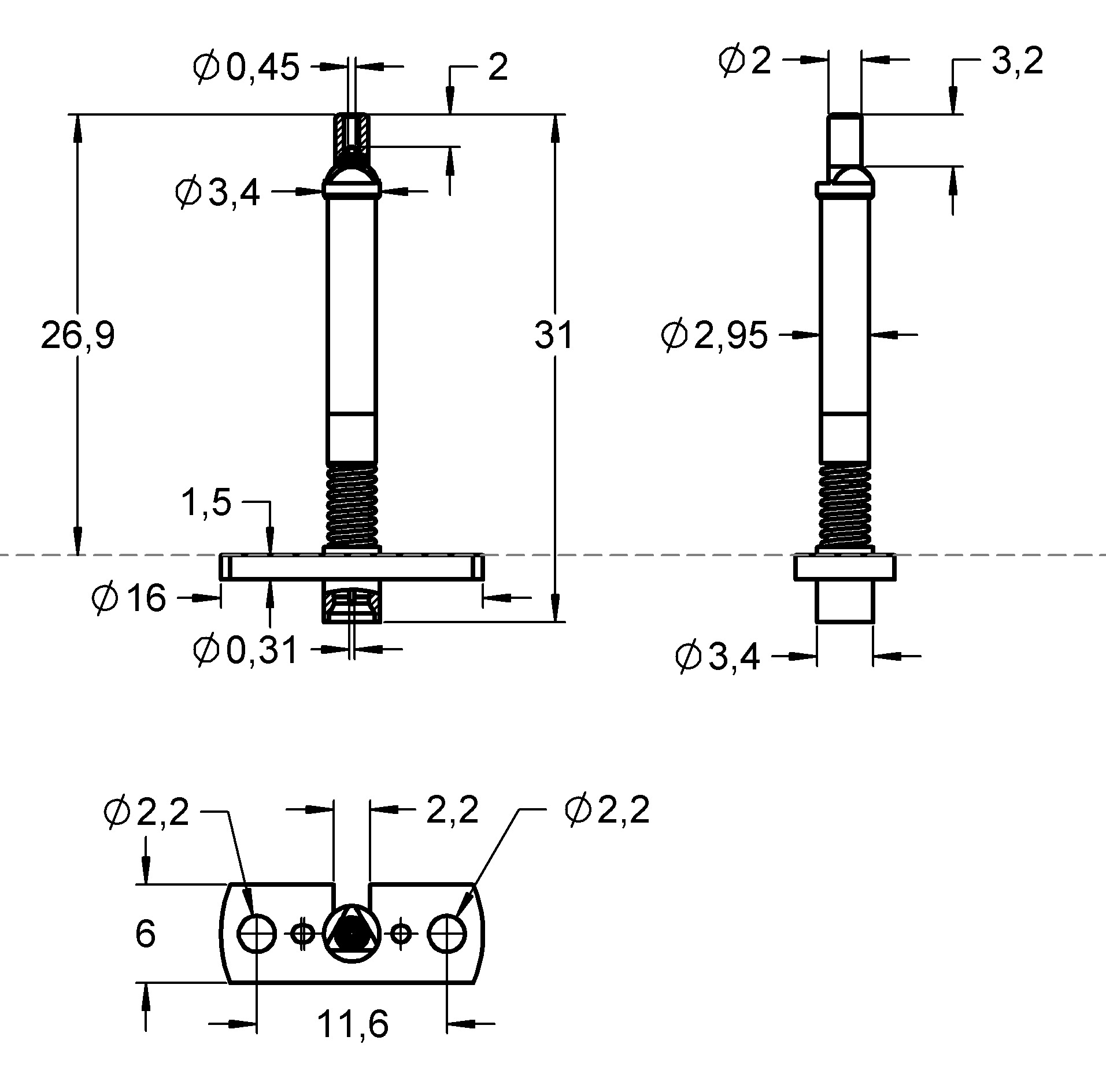

Gráficos
Beschreibung des Produkts

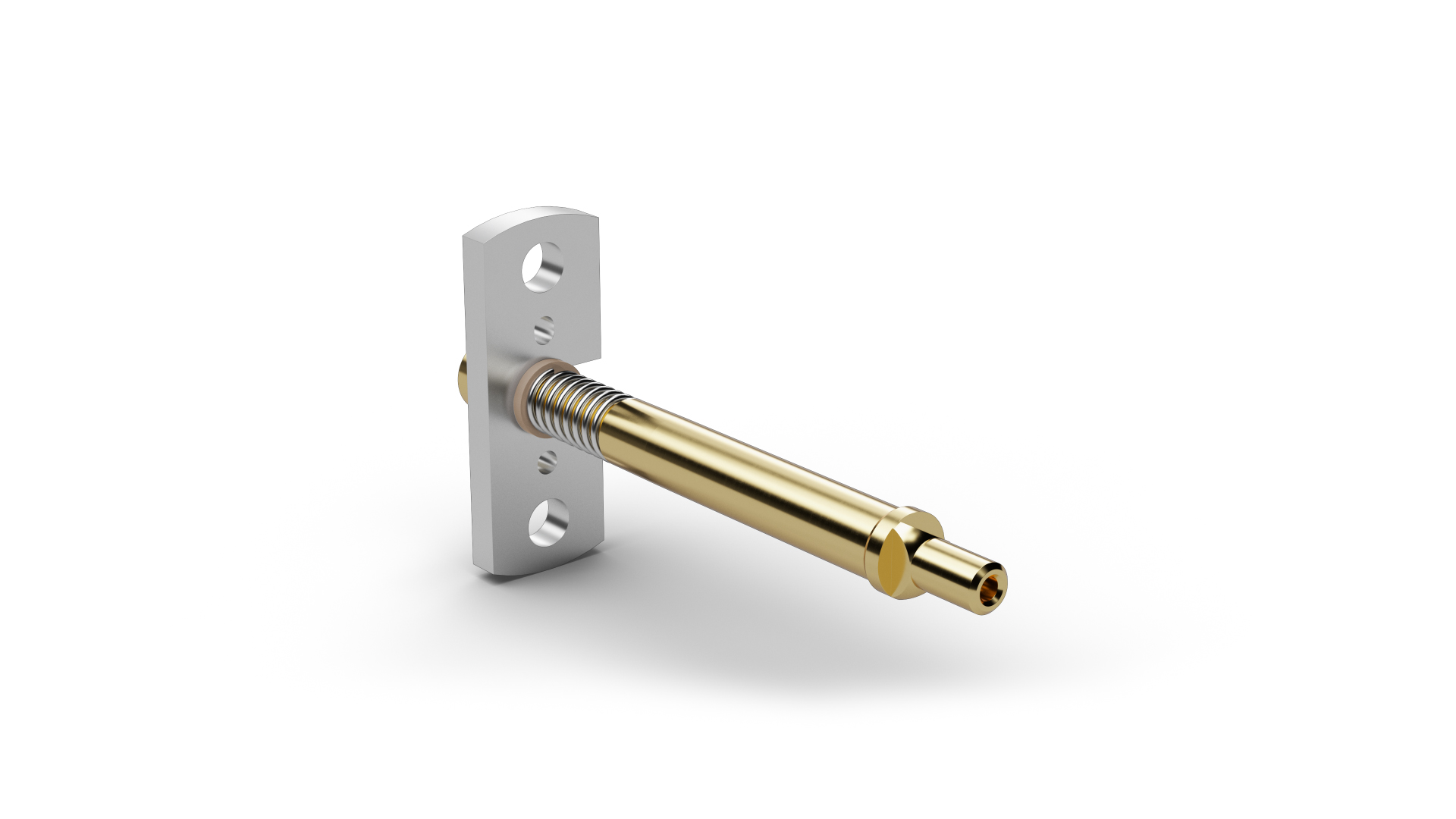

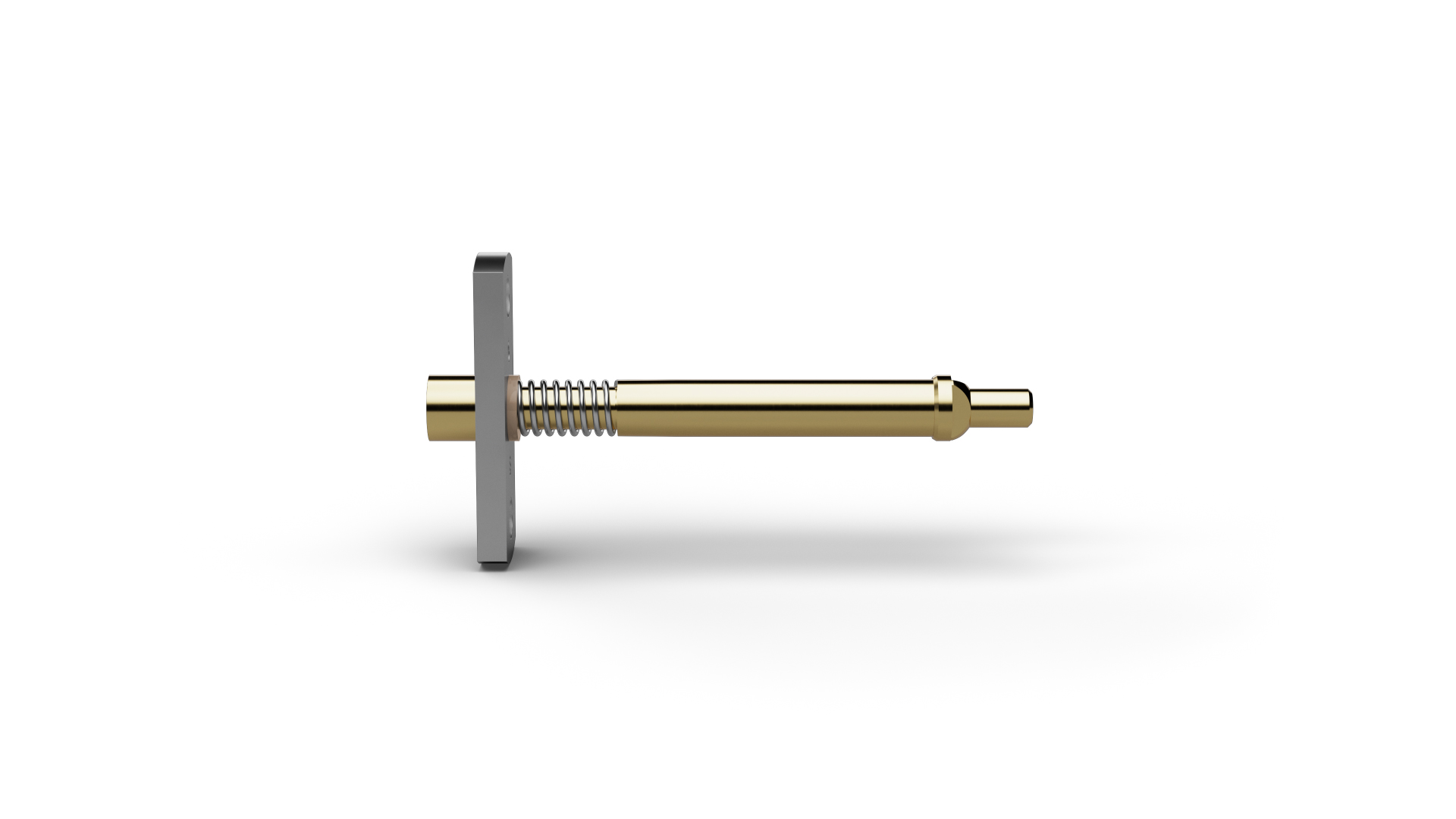

The High Frequency Probe HF77KETMINIFAKRAm0112G540MSMPmF (item number 1141543) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF77KETMINIFAKRAm0112G540MSMPmF supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range of HF77KETMINIFAKRAm0112G540MSMPmF extends up to 12 GHz, and this version is intended for contacting KET MINI FAKRA connectors. On HF77KETMINIFAKRAm0112G540MSMPmF, spring forces of 420 cN on the outer contact and 120 cN on the inner contact provide defined mechanical contacting.
