Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F100HP |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Definición adicional | HP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 33.3 |
| Altura sobresaliente (mm) | 8.4 |
| Diámetro del estilo de punta (mm) | 2 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 05 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Progressive |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 130 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 40 |
Gráficos
Beschreibung des Produkts

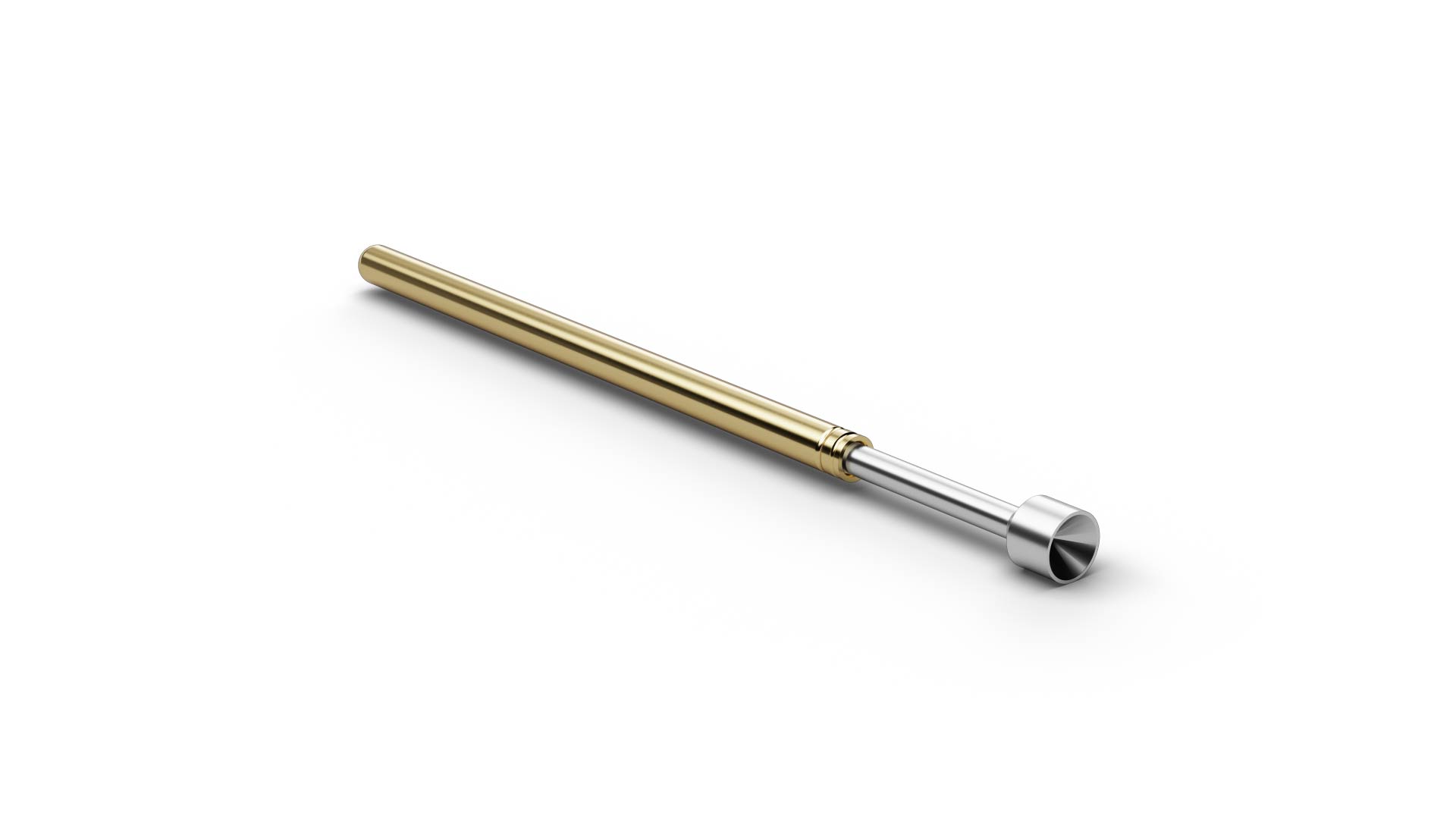

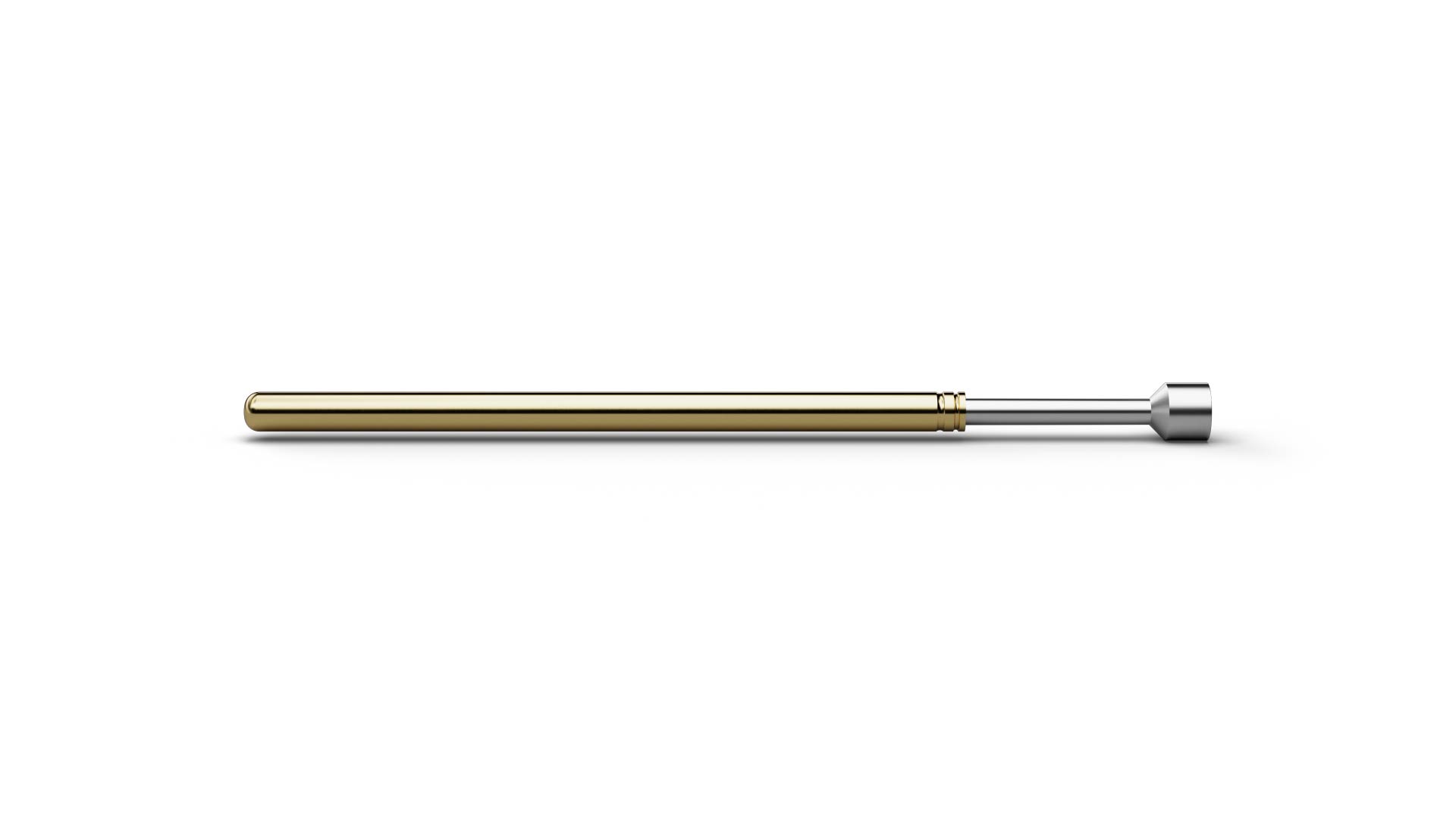

F10005B200P200HP (item number 1142384) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 05 (Concave stepped), F10005B200P200HP combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F10005B200P200HP combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 2 mm. F10005B200P200HP operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F10005B200P200HP combines 5 A continuous current with 40 mΩ typical contact resistance. Two features address difficult surface conditions on F10005B200P200HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
