Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F772 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+200°C |
| Definición adicional | A |

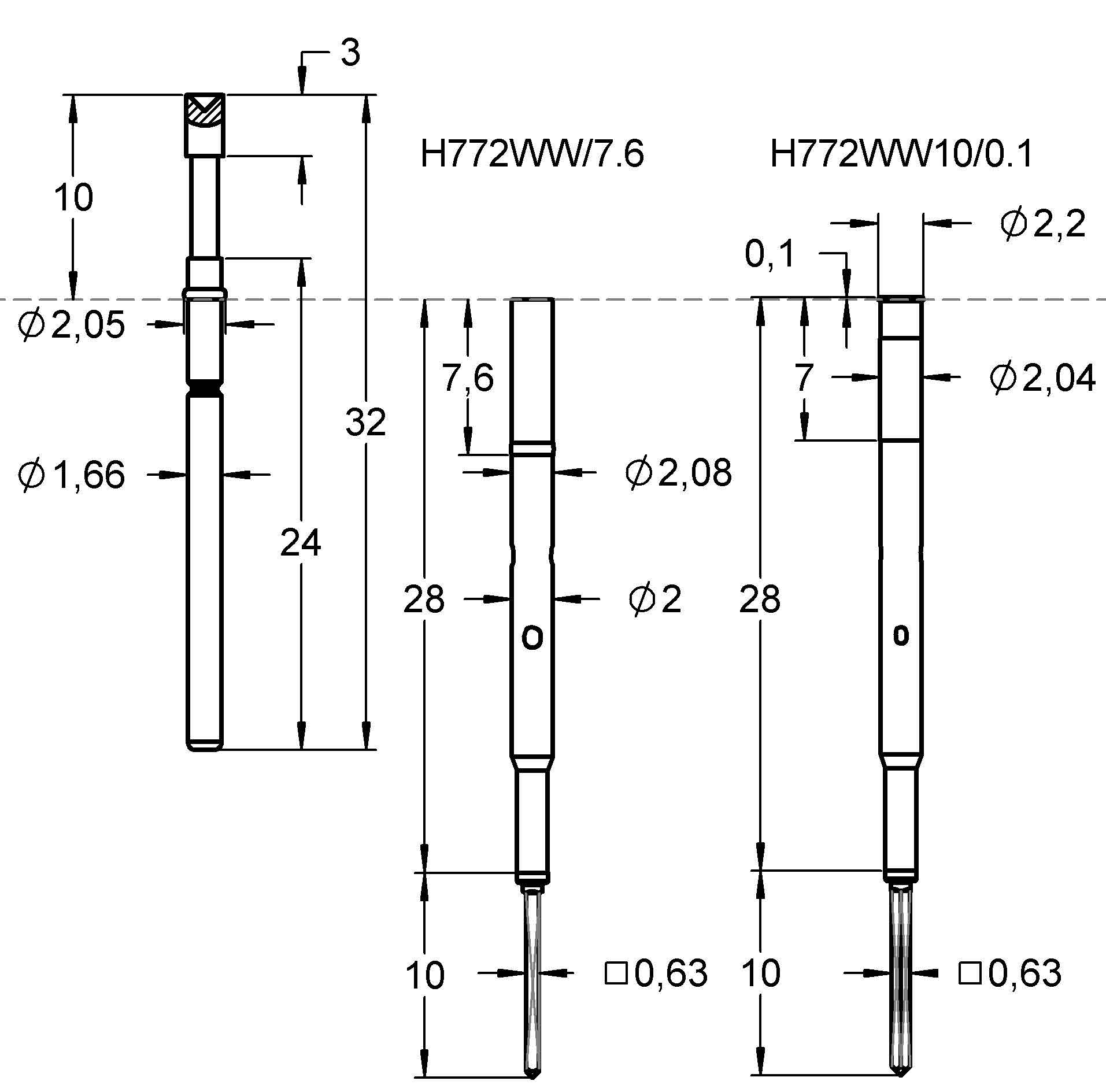

| Dimensiones | |
|---|---|
| Longitud total (mm) | 32.3 |
| Altura sobresaliente (mm) | 10.5 |
| Diámetro del estilo de punta (mm) | 2 |
| Diámetro del casquillo (mm) | 1.66 |
| Diámetro del collar (mm) | 2 |
| Diámetro del anillo de presión (mm) | 2 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Silver |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 60 |
| Fuerza del resorte (cN) | 220 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5.3 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 20 |
| Resistencia de contacto típica (mΩ) | 10 |
Gráficos
Beschreibung des Produkts

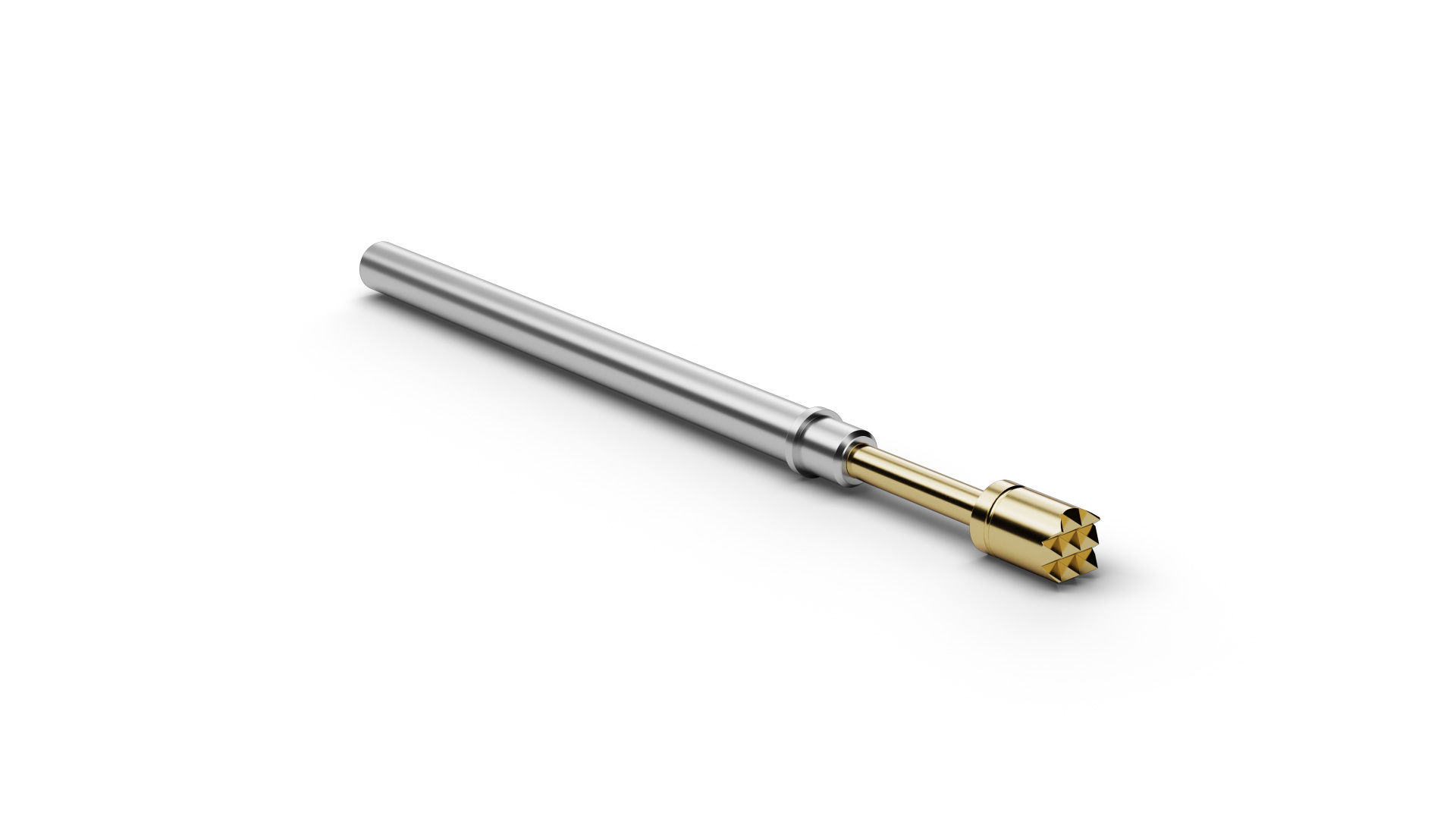

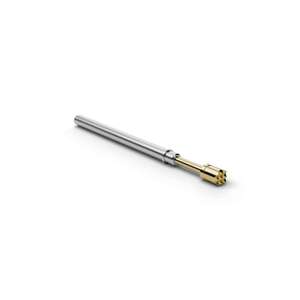

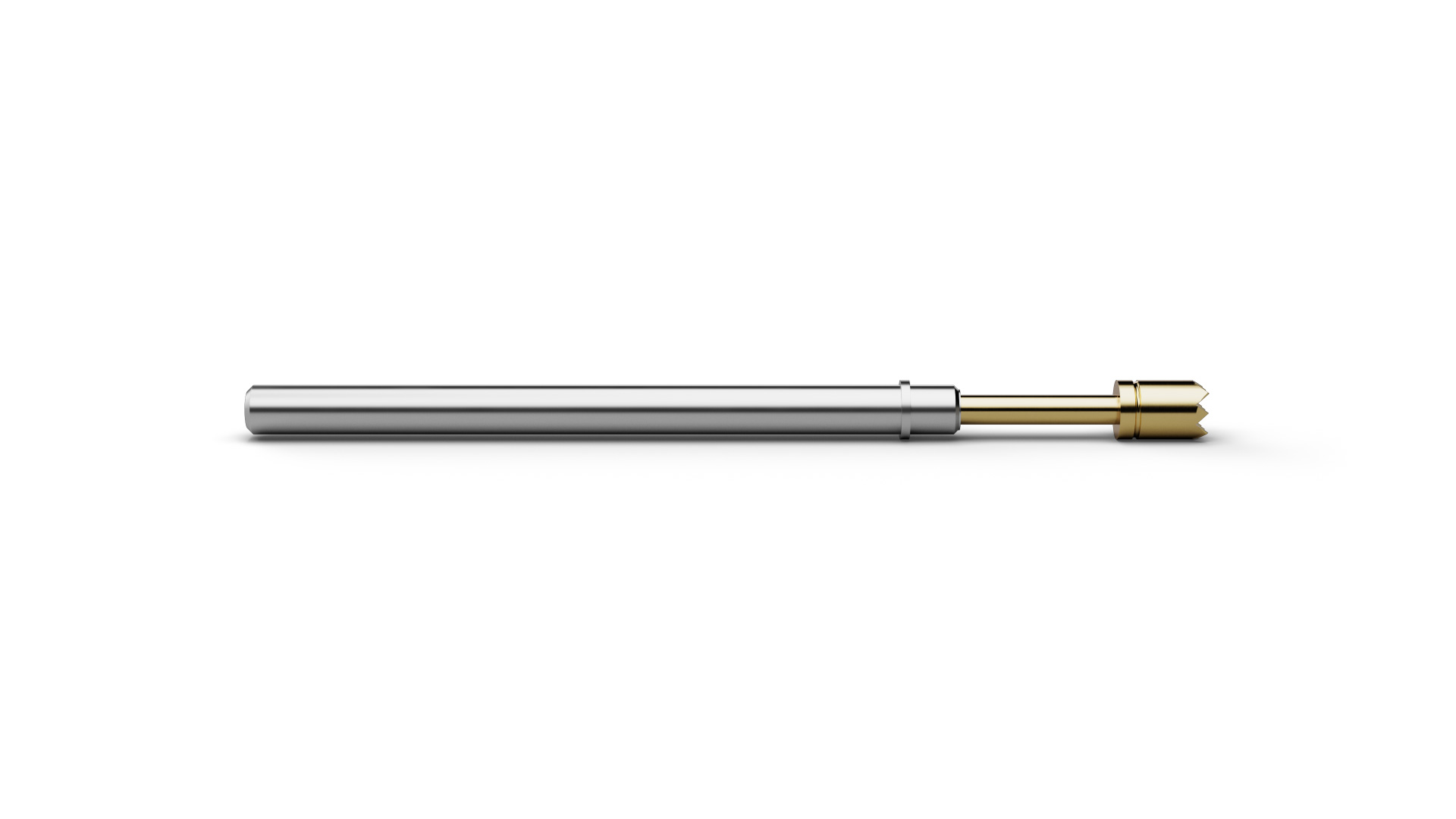

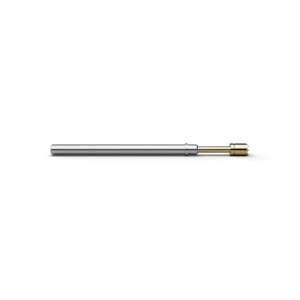

The High Current Probe HCF77206B200G220A (item number 1165640) is designed for safe transmission of high electrical currents in test and contacting applications. HCF77206B200G220A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77206B200G220A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF77206B200G220A includes power-electronics testing. HCF77206B200G220A is rated for 20 A continuous current with a typical contact resistance of 10 mΩ. HCF77206B200G220A operates with 220 cN spring force and 4 mm nominal travel.
