Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCF772 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+200°C |
| Definición adicional | A |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 32.3 |
| Altura sobresaliente (mm) | 10.5 |
| Diámetro del estilo de punta (mm) | 2 |
| Diámetro del casquillo (mm) | 1.66 |
| Diámetro del collar (mm) | 2 |
| Diámetro del anillo de presión (mm) | 2 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 07 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Silver |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 20 |
| Resistencia de contacto típica (mΩ) | 10 |
Gráficos
Beschreibung des Produkts

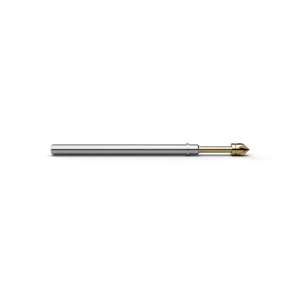

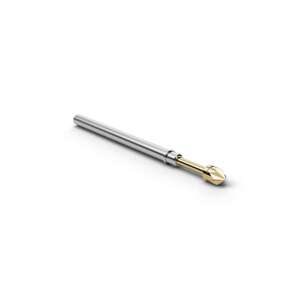

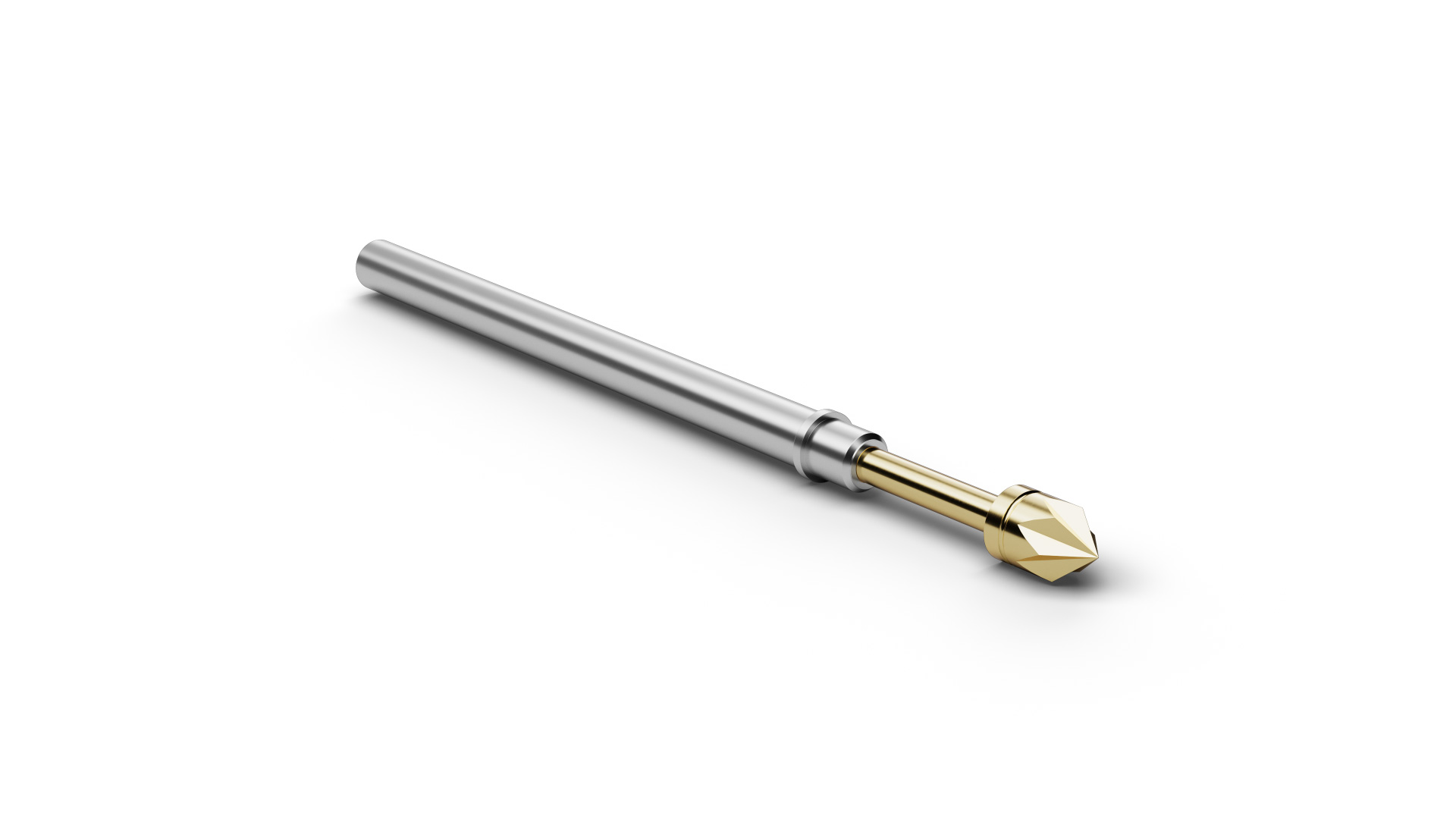

The High Current Probe HCF77207B200G300A (item number 1165644) is designed for safe transmission of high electrical currents in test and contacting applications. HCF77207B200G300A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77207B200G300A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. HCF77207B200G300A is rated for 20 A continuous current with a typical contact resistance of 10 mΩ. For HCF77207B200G300A, spring force is 300 cN at a nominal travel of 4 mm. Tip style 07 (Hexagonal 90° stepped) has a diameter of 2 mm.
