Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F793 |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 36.8 |
| Altura sobresaliente (mm) | 12.2 |
| Diámetro del estilo de punta (mm) | 0.64 |
| Diámetro del casquillo (mm) | 1.02 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 21 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Nickel silver |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 30 |
| Fuerza del resorte (cN) | 120 |
| Recorrido nominal (mm) | 8 |
| Recorrido máximo (mm) | 10 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |

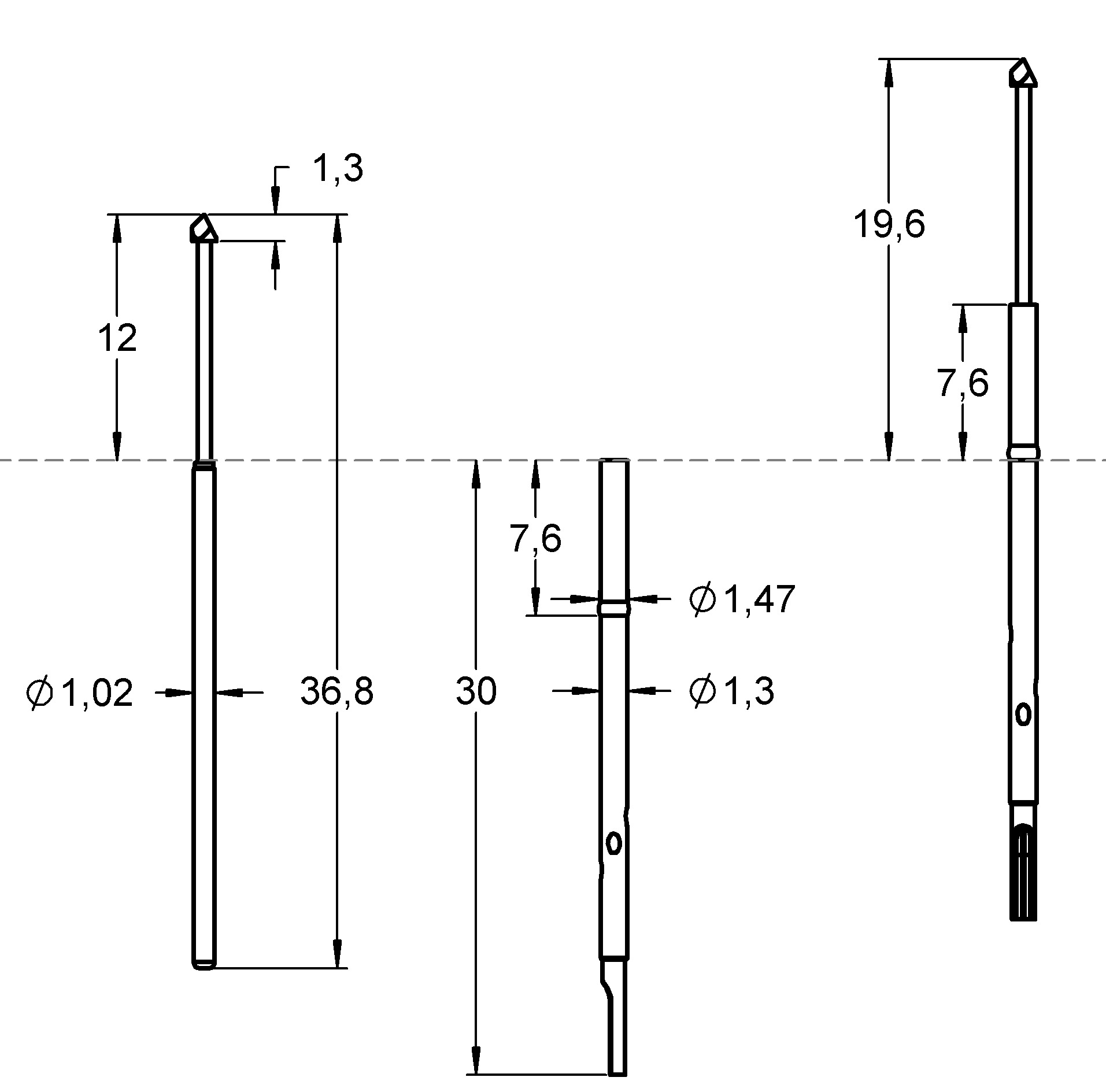

Gráficos

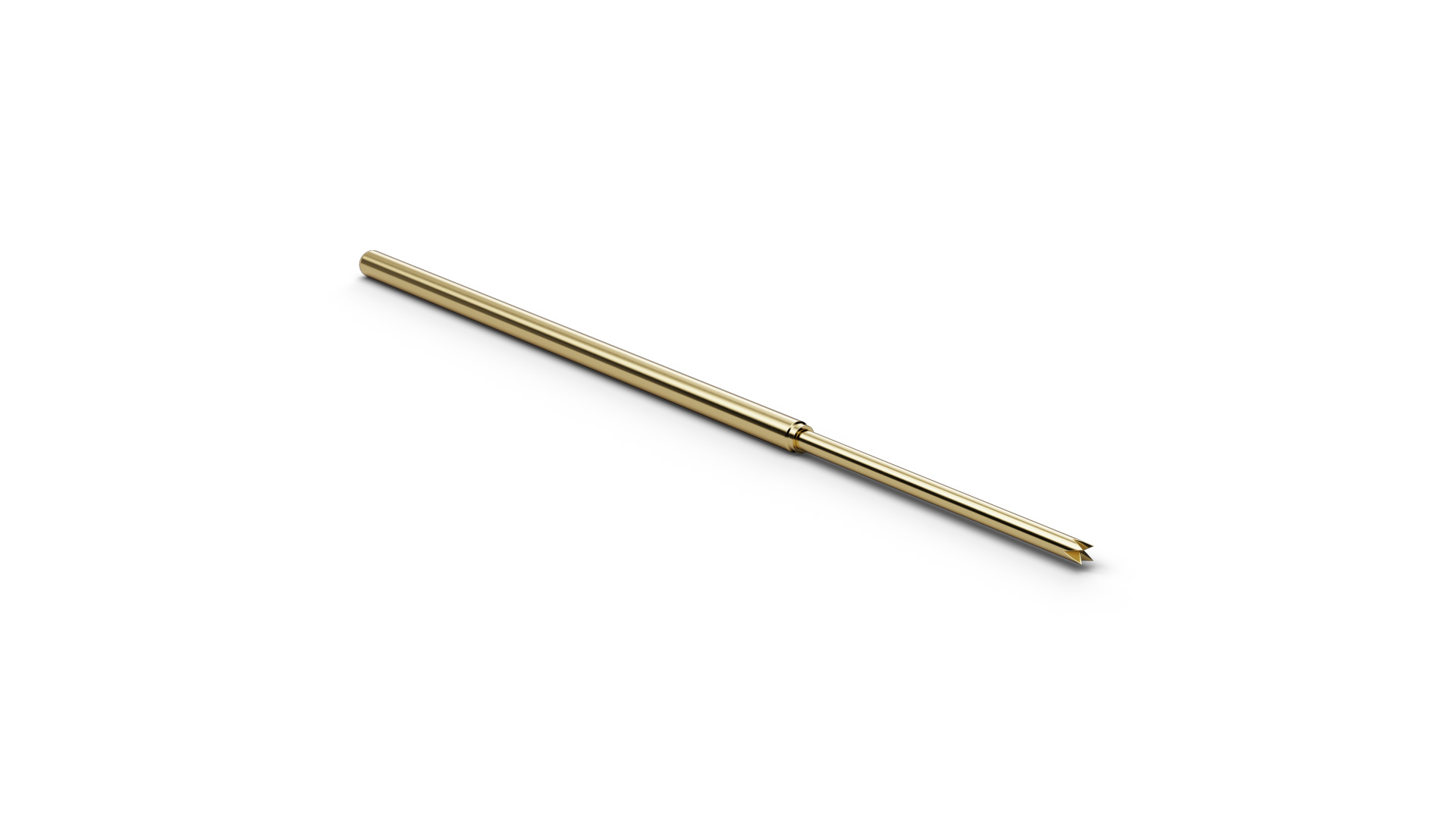

Beschreibung des Produkts
F79321S064L120 (item number 1169451) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 21 (4-point crown (self-cleaning)), F79321S064L120 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F79321S064L120 combines a pitch of 1.9 mm / 75 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.64 mm. For F79321S064L120, spring force is 120 cN at a nominal travel of 8 mm. The continuous-current rating of F79321S064L120 is 4 A.
