Datos técnicos
| General | |
|---|---|
| Tipo/Familia | IB |
| Definición adicional | FL |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 60 |
| Altura sobresaliente (mm) | 1.14 |
| Diámetro del estilo de punta (mm) | 1.95 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 5 |
| Material del estilo de punta | Brass |
| Recubrimiento del estilo de punta | Gold |
| Material del émbolo | Brass |
| Recubrimiento del émbolo | Gold |
| Material del bloque | HGW FR4 |
| Recubrimiento del bloque | Uncoated |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
Beschreibung des Produkts

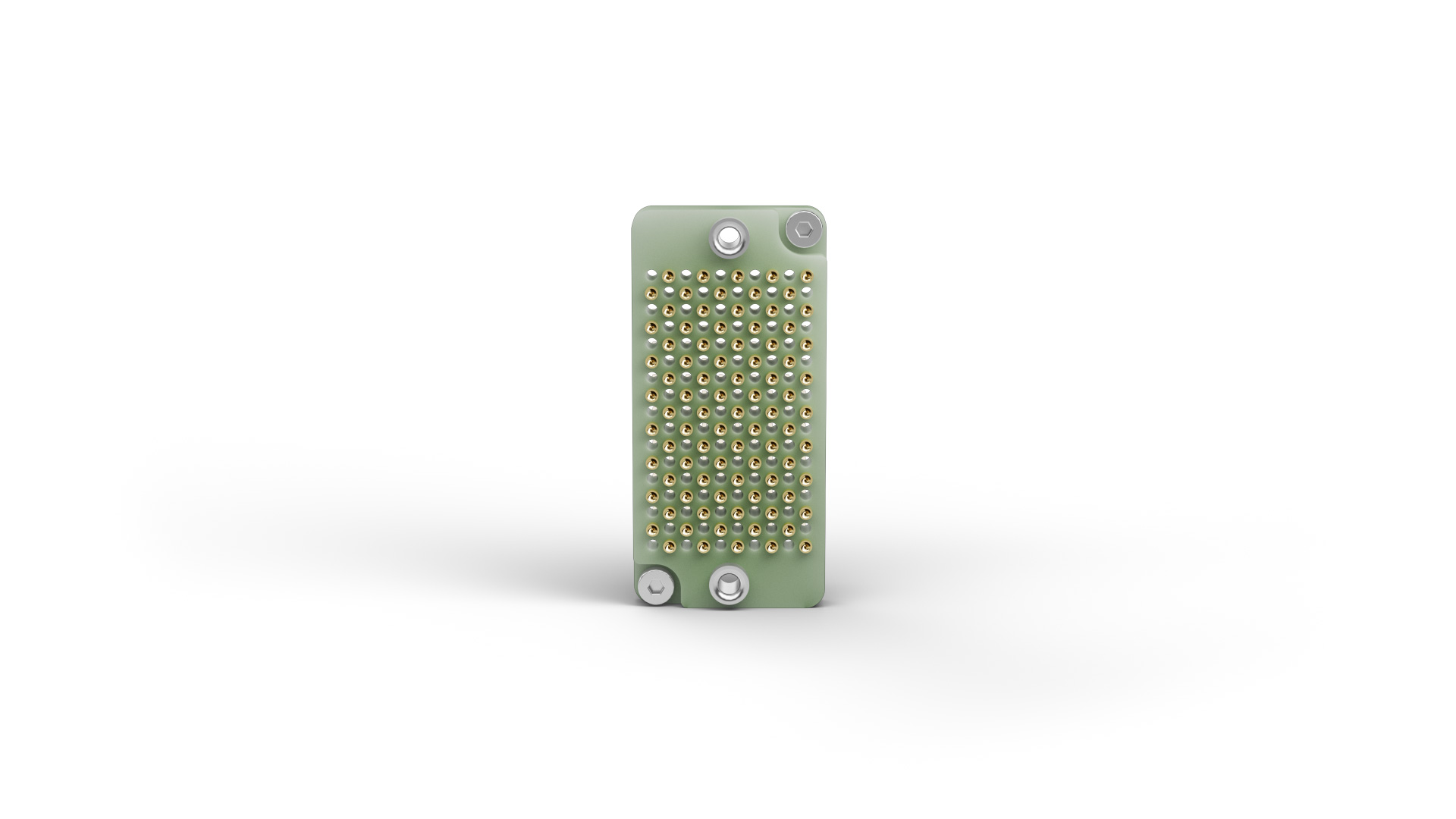

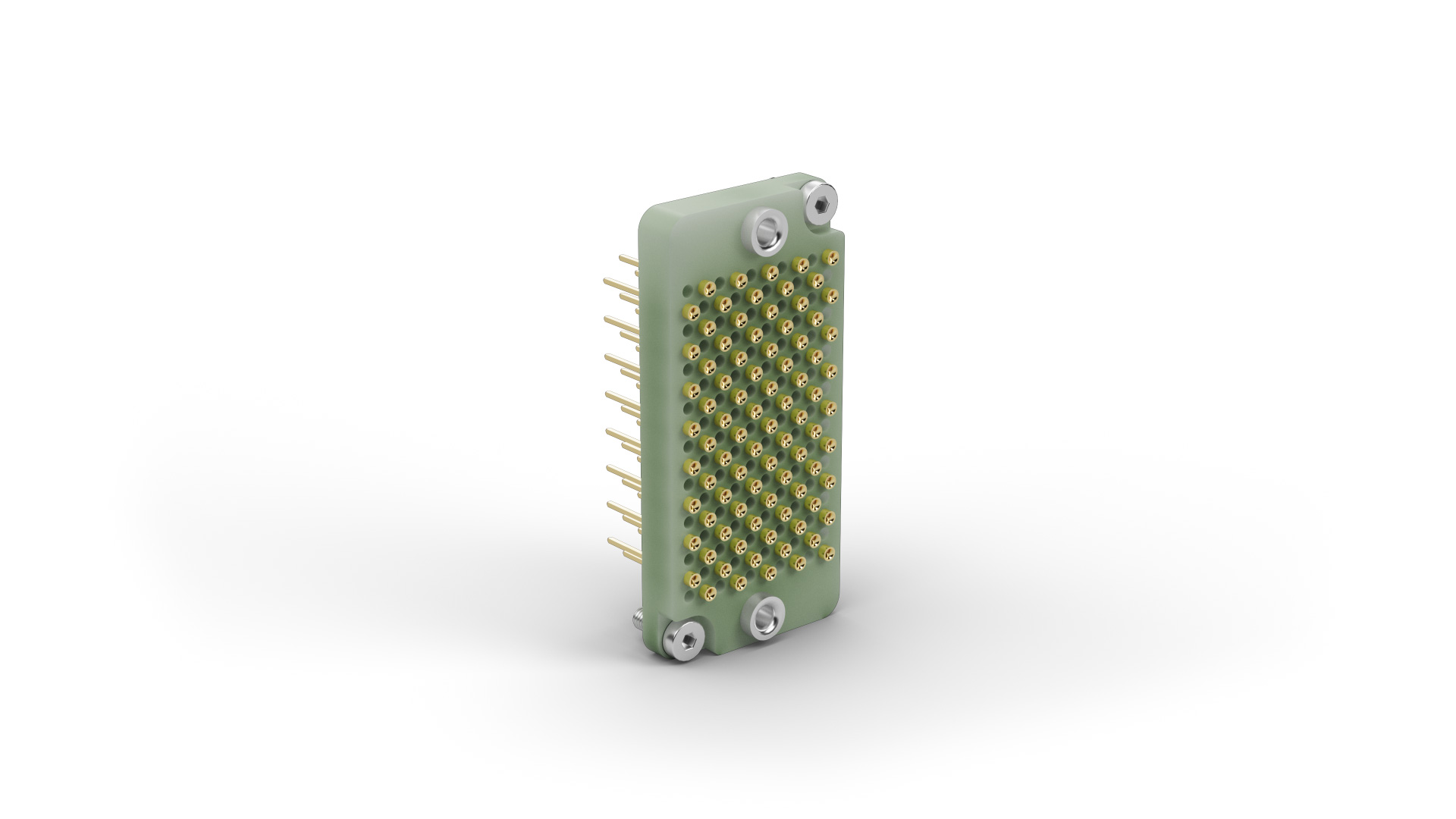

The Interface Block IB-F-SB-085-4A-WW-05-FL (item number 1170306) transfers electrical signals between the test fixture, DUT and test system. As a modular interface, IB-F-SB-085-4A-WW-05-FL links contacting and signal transfer in ICT and Functional Test setups. The continuous-current rating of IB-F-SB-085-4A-WW-05-FL is 4 A. IB-F-SB-085-4A-WW-05-FL also has the following specified feature: Key dimensions include width 28.7 mm, height 6 mm.
