Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F793 |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+80°C |
| Definición adicional | HP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 36.8 |
| Altura sobresaliente (mm) | 12.2 |
| Diámetro del estilo de punta (mm) | 0.64 |
| Diámetro del casquillo (mm) | 1.02 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 33 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Nickel silver |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 100 |
| Recorrido nominal (mm) | 8 |
| Recorrido máximo (mm) | 10 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

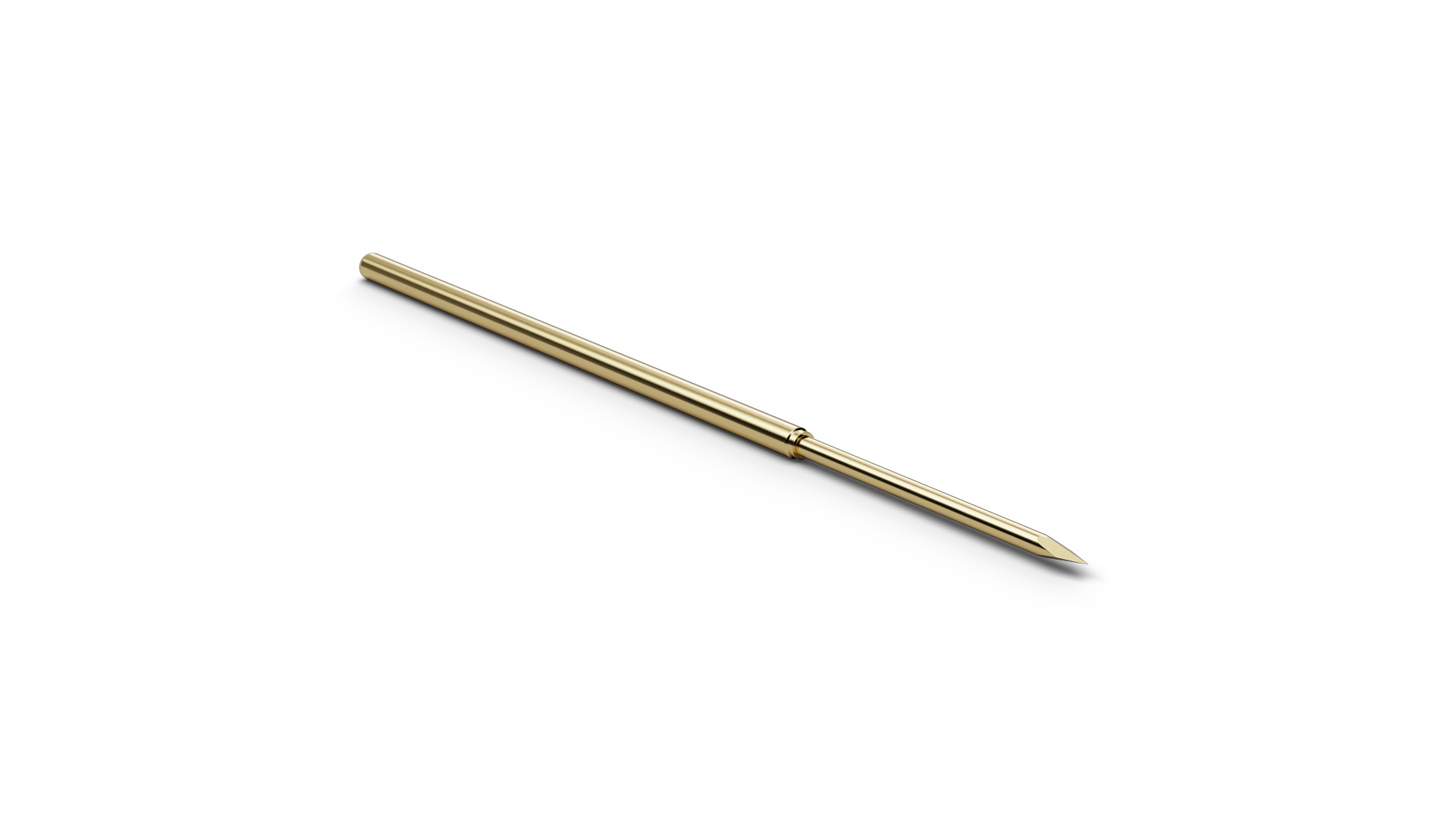

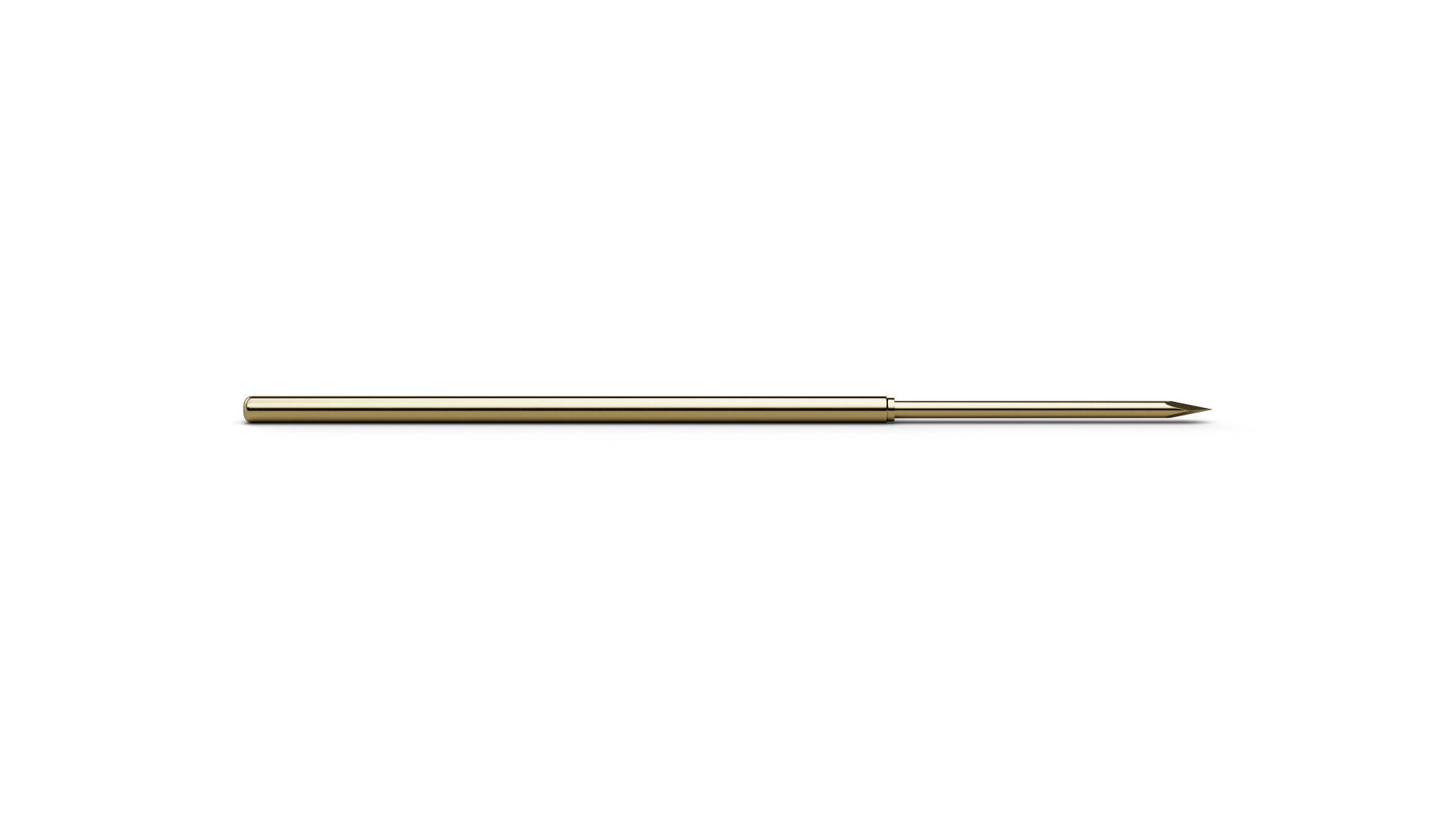

F79333S064L100HP (item number 1170401) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 33 (Square lance 38°), F79333S064L100HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F79333S064L100HP combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.64 mm. Spring force is 100 cN at a nominal travel of 8 mm. F79333S064L100HP is specified for 4 A continuous current.
