Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | VF4 |
| Paso (mm/mil) | 4,00 / 157 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 69.7 |
| Altura sobresaliente (mm) | 34.8 |
| Diámetro del estilo de punta (mm) | 2.3 |
| Diámetro del casquillo (mm) | 3 |
| Diámetro del collar (mm) | 3.6 |
| Diámetro del anillo de presión (mm) | 3.6 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 300 |
| Fuerza del resorte (cN) | 2500 |
| Recorrido nominal (mm) | 5 |
| Recorrido máximo (mm) | 5.5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M2,5X0,35 |
| Tamaño de herramienta (mm) | 2,5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

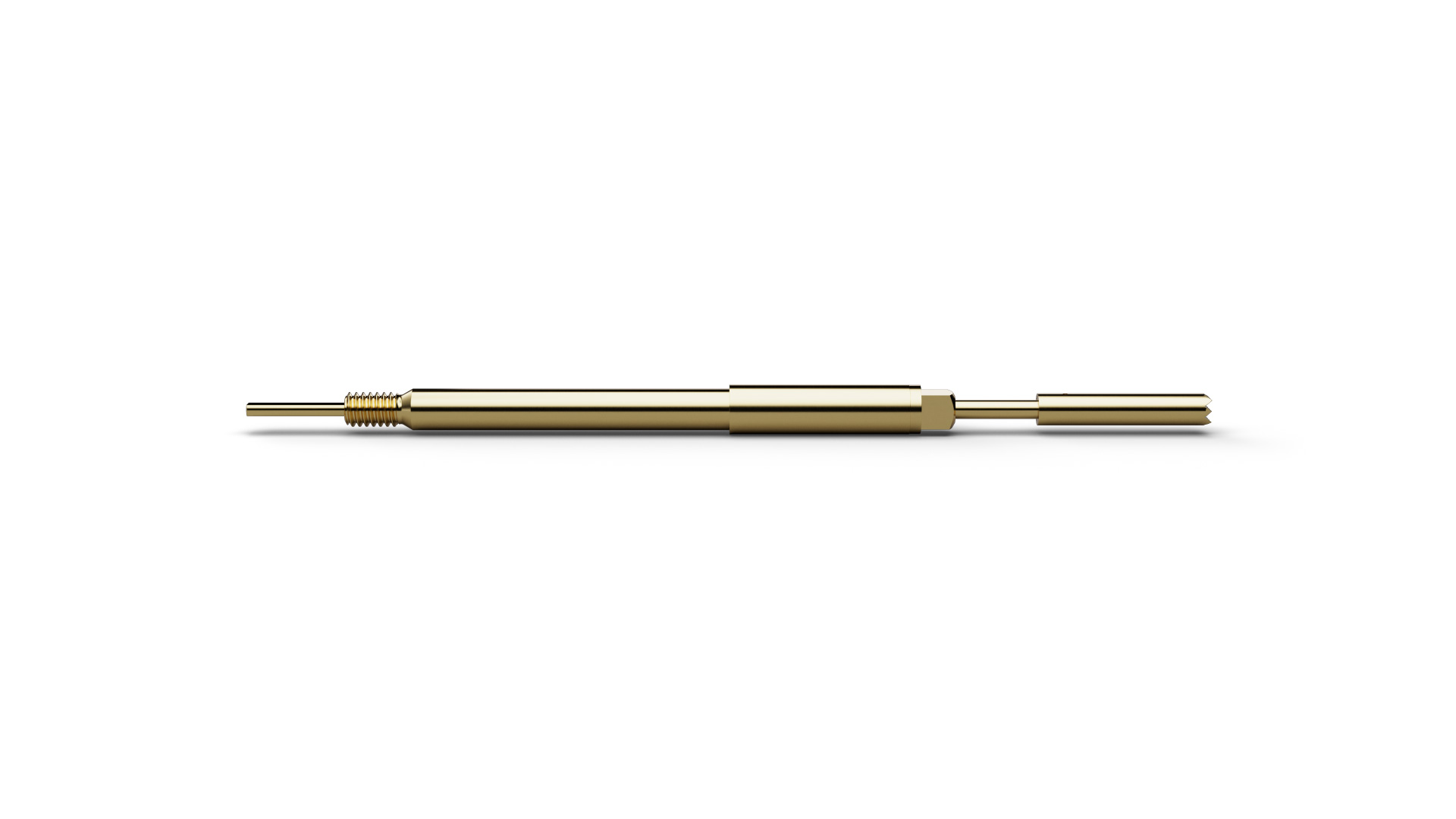

VF406B230G25 (item number 1172912) belongs to the Push Back Probe range and helps detect terminals that could be pushed back during contacting. VF406B230G25 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. The design combines a pitch of 4 mm / 157 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.3 mm. For VF406B230G25, spring force is 2500 cN at a nominal travel of 5 mm. VF406B230G25 is specified for 10 A continuous current.
