Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F588 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 39 |
| Hauteur hors tout (mm) | 14.1 |
| Diamètre du style de pointe (mm) | 0.9 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 11 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 50 |
| Force du ressort (cN) | 180 |
| Course nominale (mm) | 9.3 |
| Course maximale (mm) | 11.7 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 30 |
Graphiques
Beschreibung des Produkts

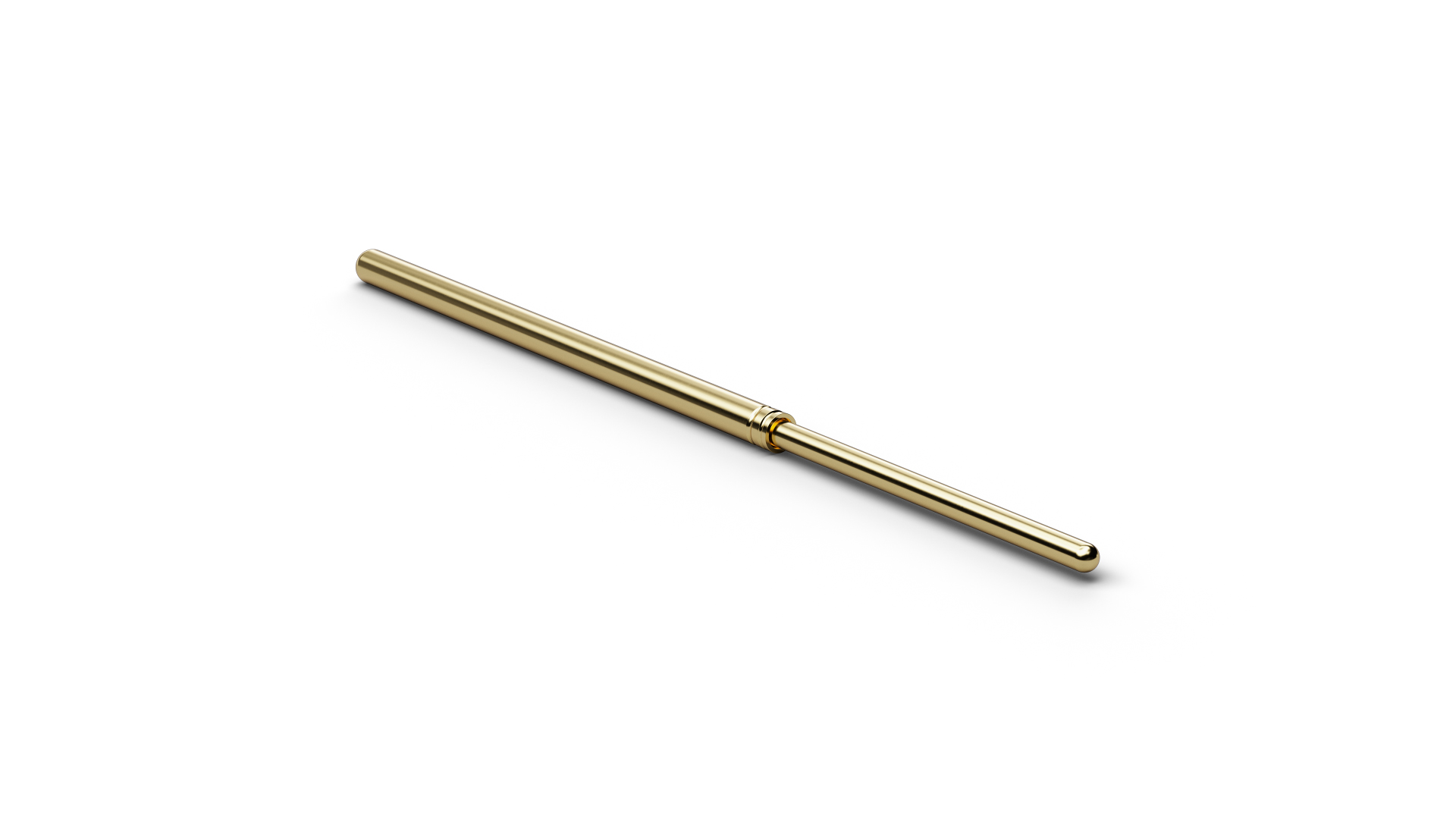

As a Basic Contact Probe, F58811B090G180 (item number 1000110) establishes a spring-loaded electrical connection to the test point. With tip style 11 (Spherical), F58811B090G180 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F58811B090G180 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 0.9 mm. For F58811B090G180, spring force is 180 cN at a nominal travel of 9.3 mm. F58811B090G180 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58811B090G180 is made of beryllium copper and is gold-plated.
