Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F050 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 43.2 |
| Hauteur hors tout (mm) | 8.1 |
| Diamètre du style de pointe (mm) | 0.5 |
| Diamètre du fût (mm) | 0.78 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 38 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Gold |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 90 |
| Force du ressort (cN) | 200 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.05 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 3 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques
Beschreibung des Produkts

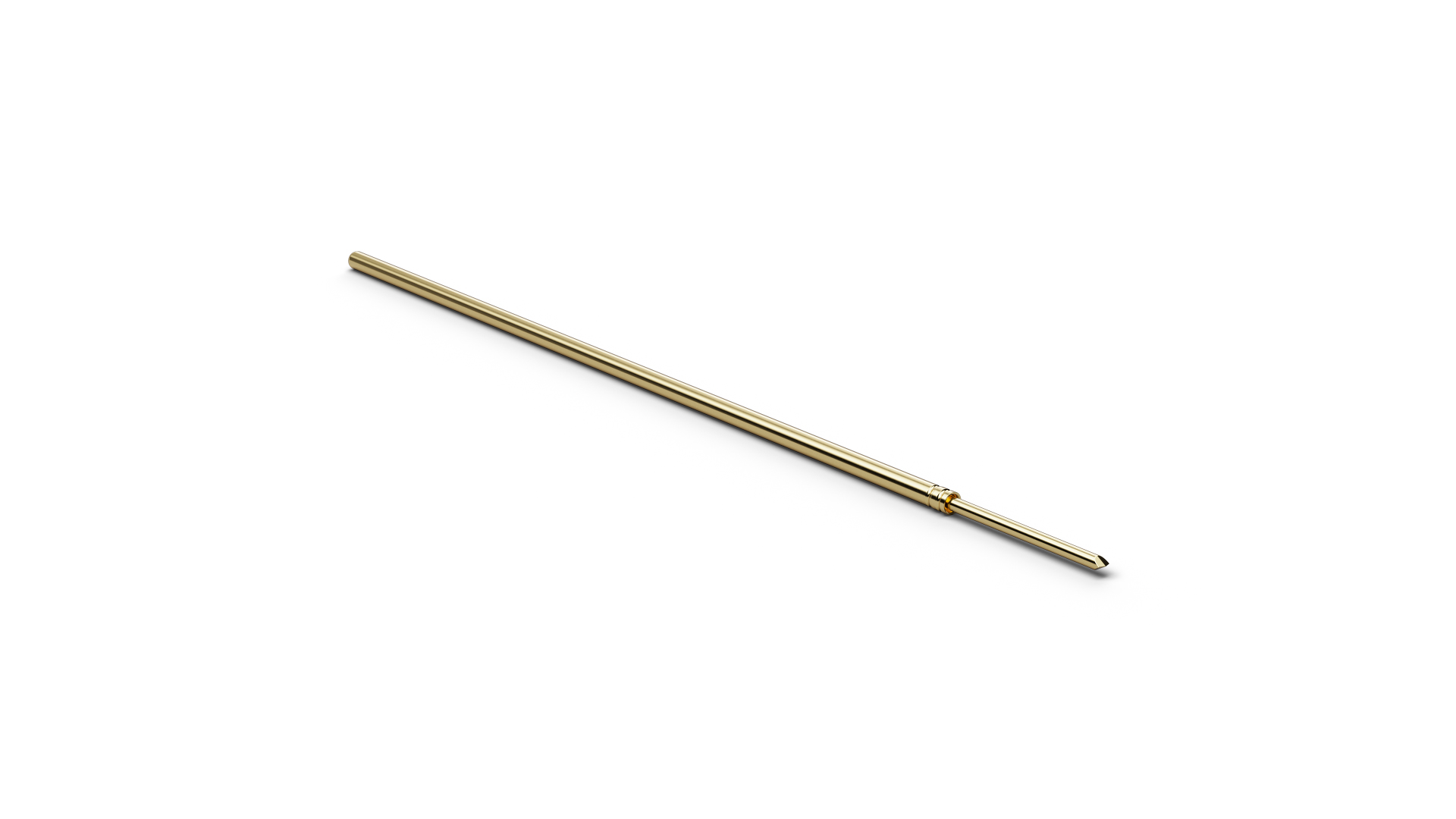

As a Basic Contact Probe, F05038S050L200 (item number 1000339) establishes a spring-loaded electrical connection to the test point. With tip style 38 (Square lance 140°), F05038S050L200 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05038S050L200 combines a pitch of 1.27 mm / 50 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.5 mm. For F05038S050L200, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F05038S050L200 combines 3 A continuous current with 20 mΩ typical contact resistance. The plunger in F05038S050L200 is made of steel and uses Longtime Gold plating.
