Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F111 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 16.5 |
| Hauteur hors tout (mm) | 4 |
| Diamètre du style de pointe (mm) | 0.53 |
| Diamètre du fût (mm) | 0.69 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 21 |
| Matériau du piston | Steel |
| Revêtement du piston | Nickel |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 20 |
| Force du ressort (cN) | 85 |
| Course nominale (mm) | 2 |
| Course maximale (mm) | 2.8 |
| Précision de pointage +/- (mm) | 0.09 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 3 |
| Résistance de contact typique (mΩ) | 65 |
Graphiques
Beschreibung des Produkts

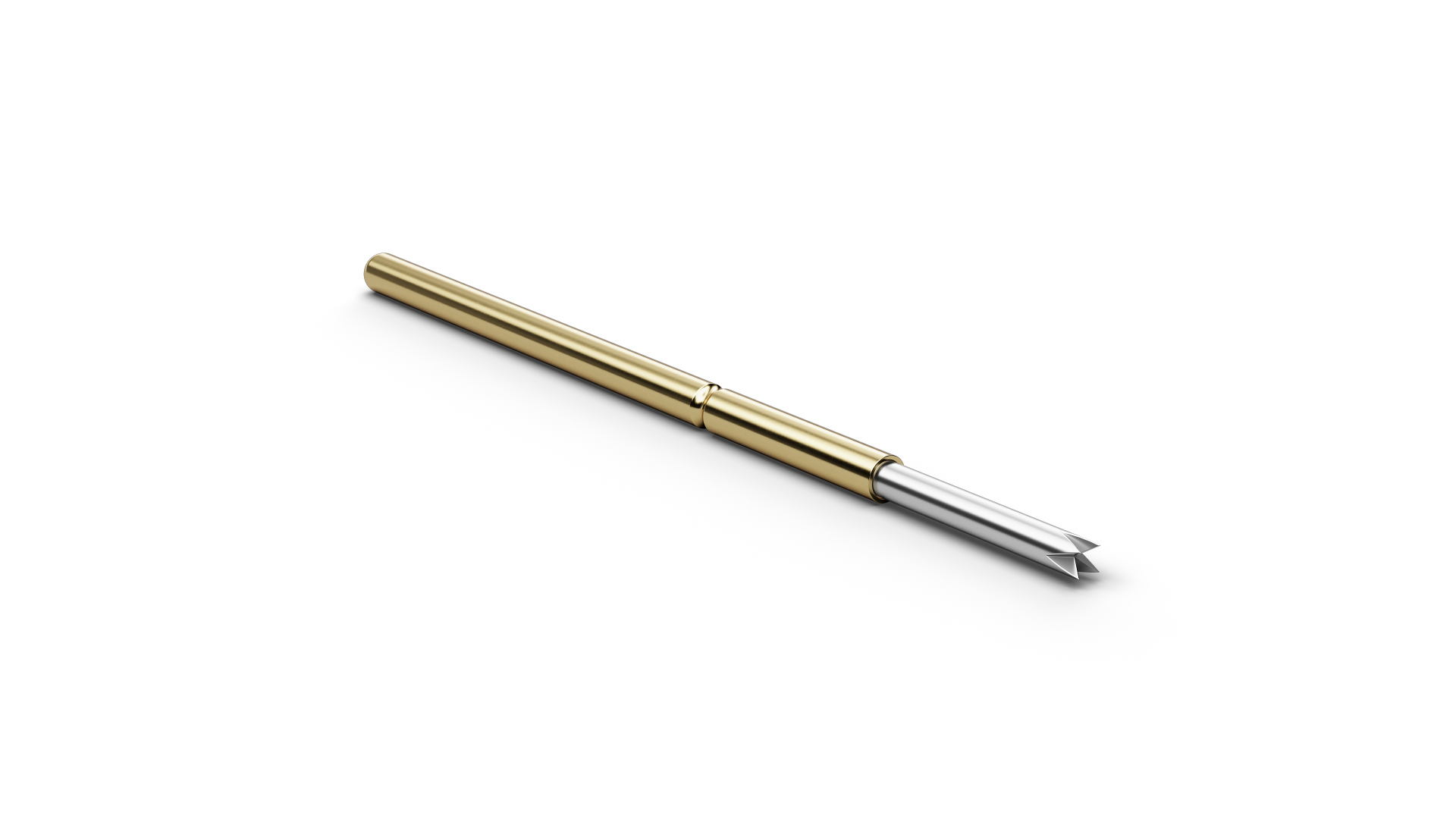

The Basic Contact Probe F11121S053N085 (item number 1001355) is a spring-loaded probe for temporary electrical contact with test points. With tip style 21 (4-point crown (self-cleaning)), F11121S053N085 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F11121S053N085 combines a pitch of 1.27 mm / 50 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.53 mm. For F11121S053N085, spring force is 85 cN at a nominal travel of 2 mm. The electrical rating of F11121S053N085 combines 3 A continuous current with 65 mΩ typical contact resistance. The plunger in F11121S053N085 is made of steel and is Nickel-plated.
