Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | HCF340 |
| Pas (mm/mil) | 4,00 / 157 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 50 |
| Hauteur hors tout (mm) | 22.2 |
| Diamètre du style de pointe (mm) | 3.5 |
| Diamètre du fût (mm) | 2.4 |
| Diamètre du collet (mm) | 2.6 |
| Diamètre de la bague de serrage (mm) | 2.6 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Uncoated |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 80 |
| Force du ressort (cN) | 260 |
| Course nominale (mm) | 6.4 |
| Course maximale (mm) | 8 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 16 |
| Résistance de contact typique (mΩ) | 10 |
Graphiques
Beschreibung des Produkts

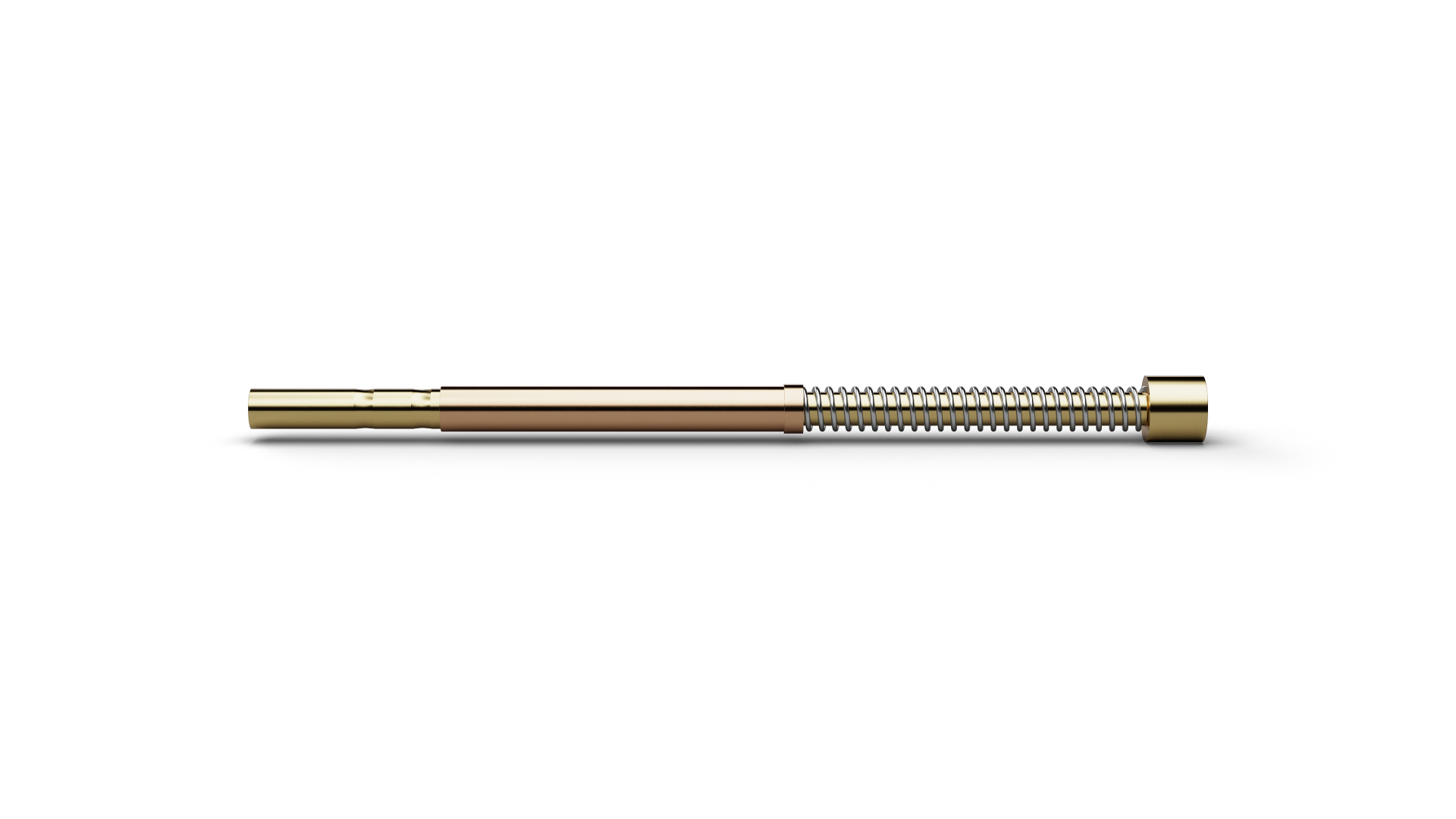

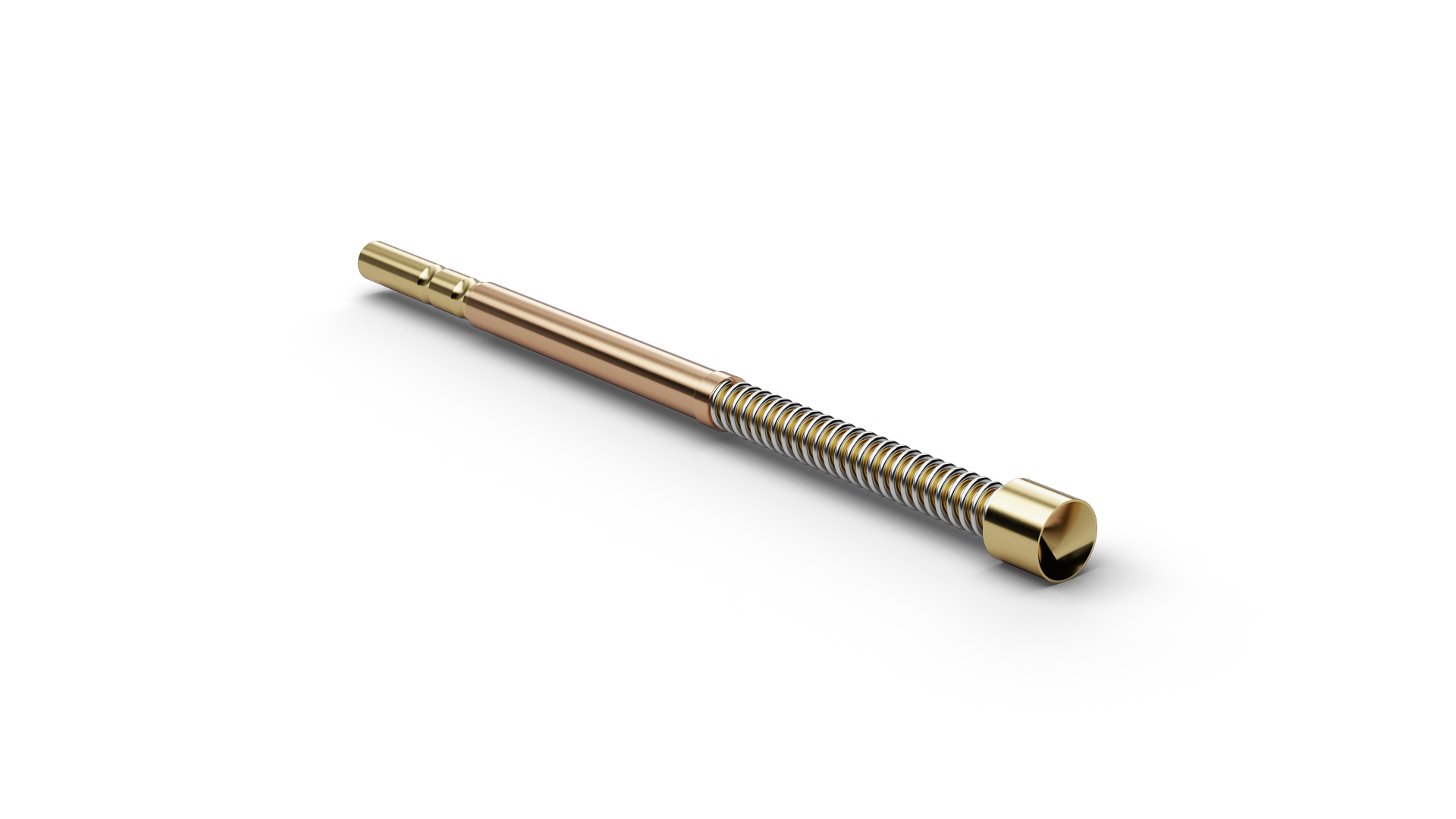

The High Current Probe HCF34005S350L260 (item number 1001368) is designed for safe transmission of high electrical currents in test and contacting applications. HCF34005S350L260 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF34005S350L260, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF34005S350L260 includes battery and power-electronics testing. The electrical rating of HCF34005S350L260 combines 16 A continuous current with 10 mΩ typical contact resistance. HCF34005S350L260 operates with 260 cN spring force and 6.4 mm nominal travel.
