Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F732 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 35.7 |
| Hauteur hors tout (mm) | 10.3 |
| Diamètre du style de pointe (mm) | 2 |
| Diamètre du fût (mm) | 1.65 |
| Diamètre du collet (mm) | 2.3 |
| Diamètre de la bague de serrage (mm) | 2.3 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 12 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 60 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 4 |
| Course maximale (mm) | 5 |
| Précision de pointage +/- (mm) | 0.08 |
| Filetage | M1,6 |
| Taille d’outil (mm) | 1,7 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

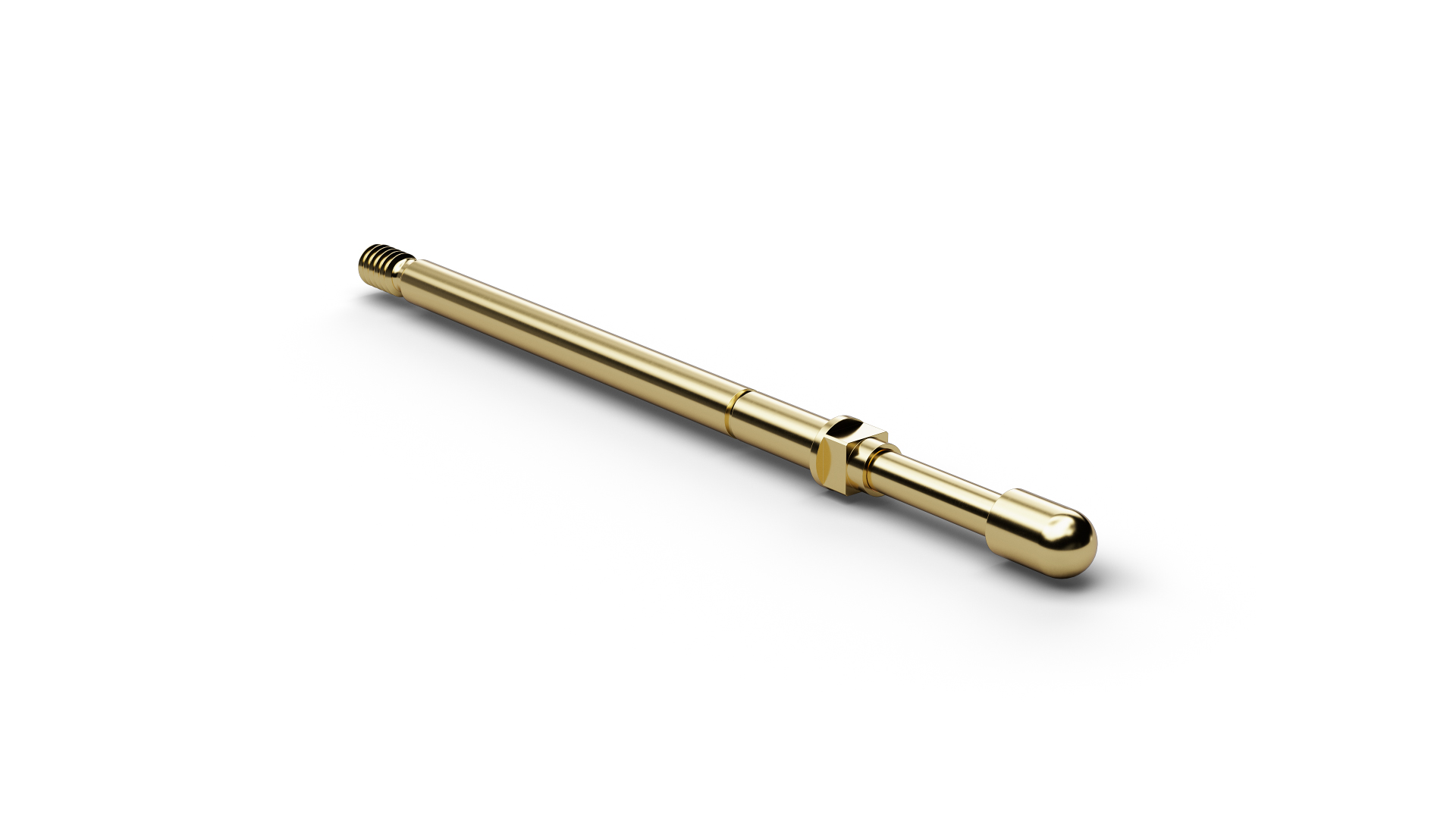

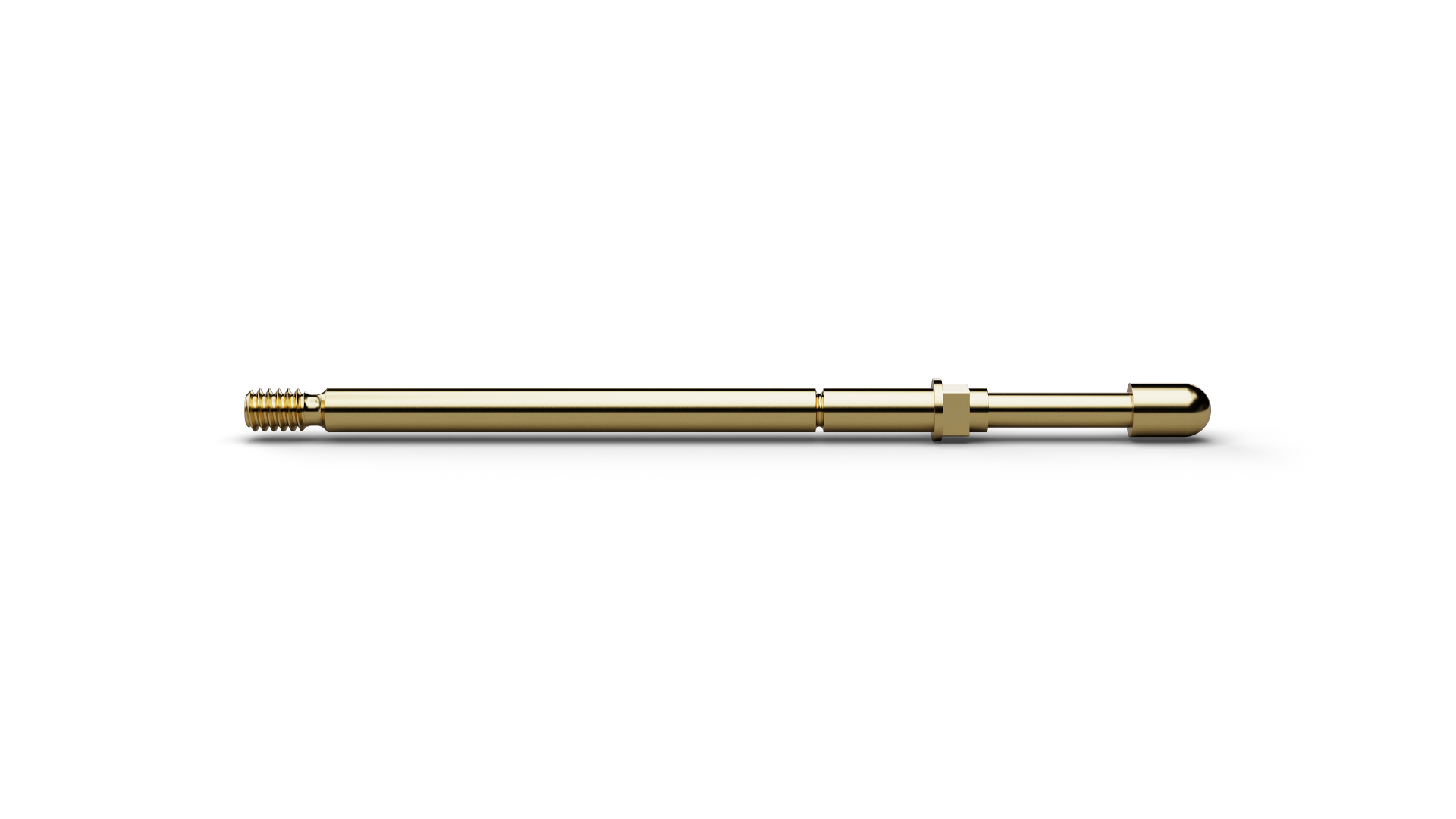

As a Basic Threaded Probe, F73212B200G150 (item number 1001469) is screwed securely into the test fixture. The threaded mounting of F73212B200G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73212B200G150 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73212B200G150 uses an M1.6 thread. On F73212B200G150, a pitch of 2.54 mm / 100 mil is combined with 150 cN spring force and 4 mm nominal travel. F73212B200G150 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ.
