Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | P-T / P165T-L126 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 12.6 |
| Hauteur hors tout (mm) | 2.4 |
| Diamètre du style de pointe (mm) | 1.2 |
| Diamètre du fût (mm) | 1.65 |
| Diamètre du collet (mm) | 1.78 |
| Diamètre de la bague de serrage (mm) | 1.78 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 01 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 40 |
| Force du ressort (cN) | 75 |
| Course nominale (mm) | 1.3 |
| Course maximale (mm) | 1.6 |
| Précision de pointage +/- (mm) | 0.08 |
| Connexion | Crimp Connection |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 8 |
| Résistance de contact typique (mΩ) | 30 |
Graphiques
Beschreibung des Produkts

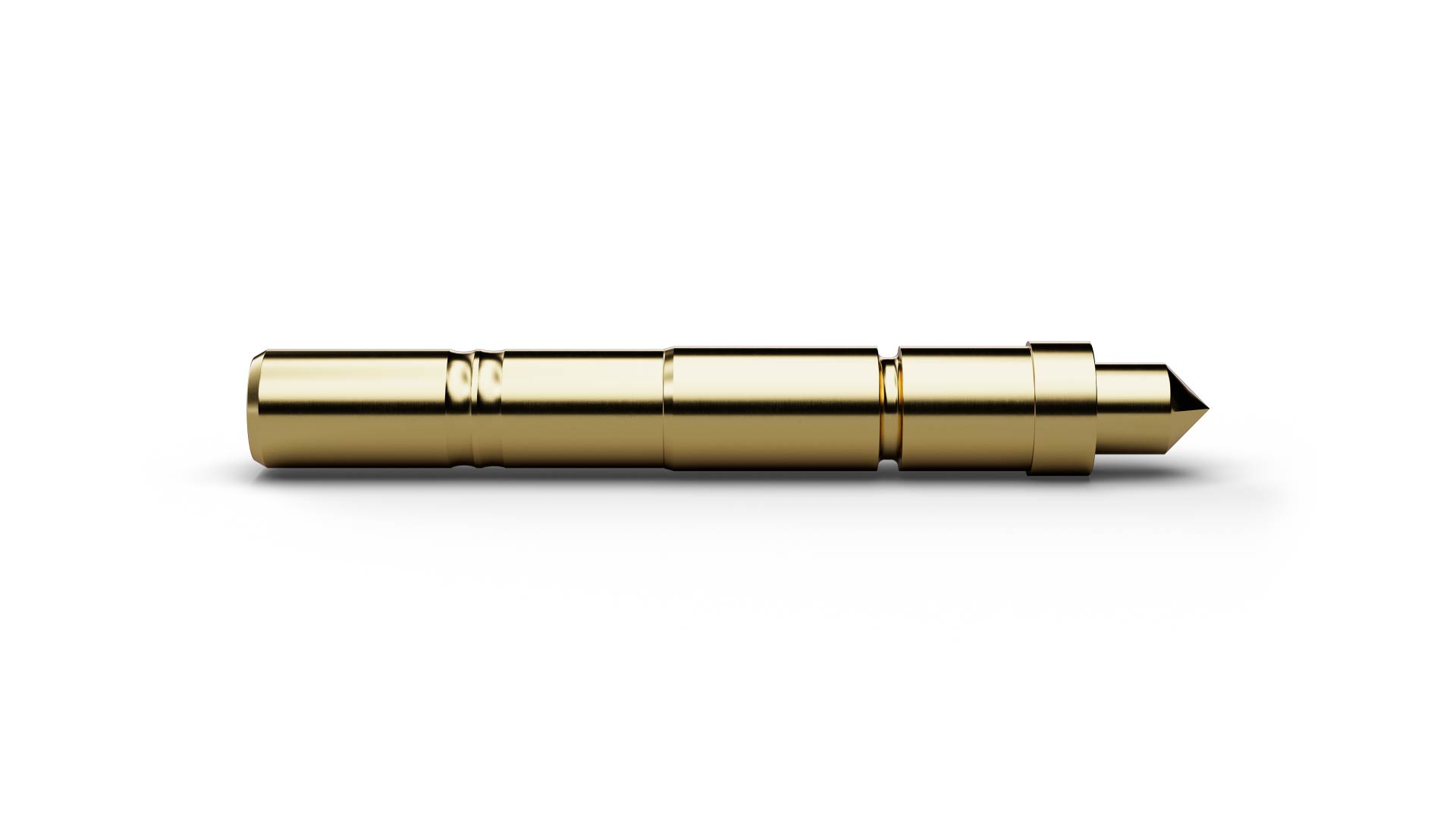

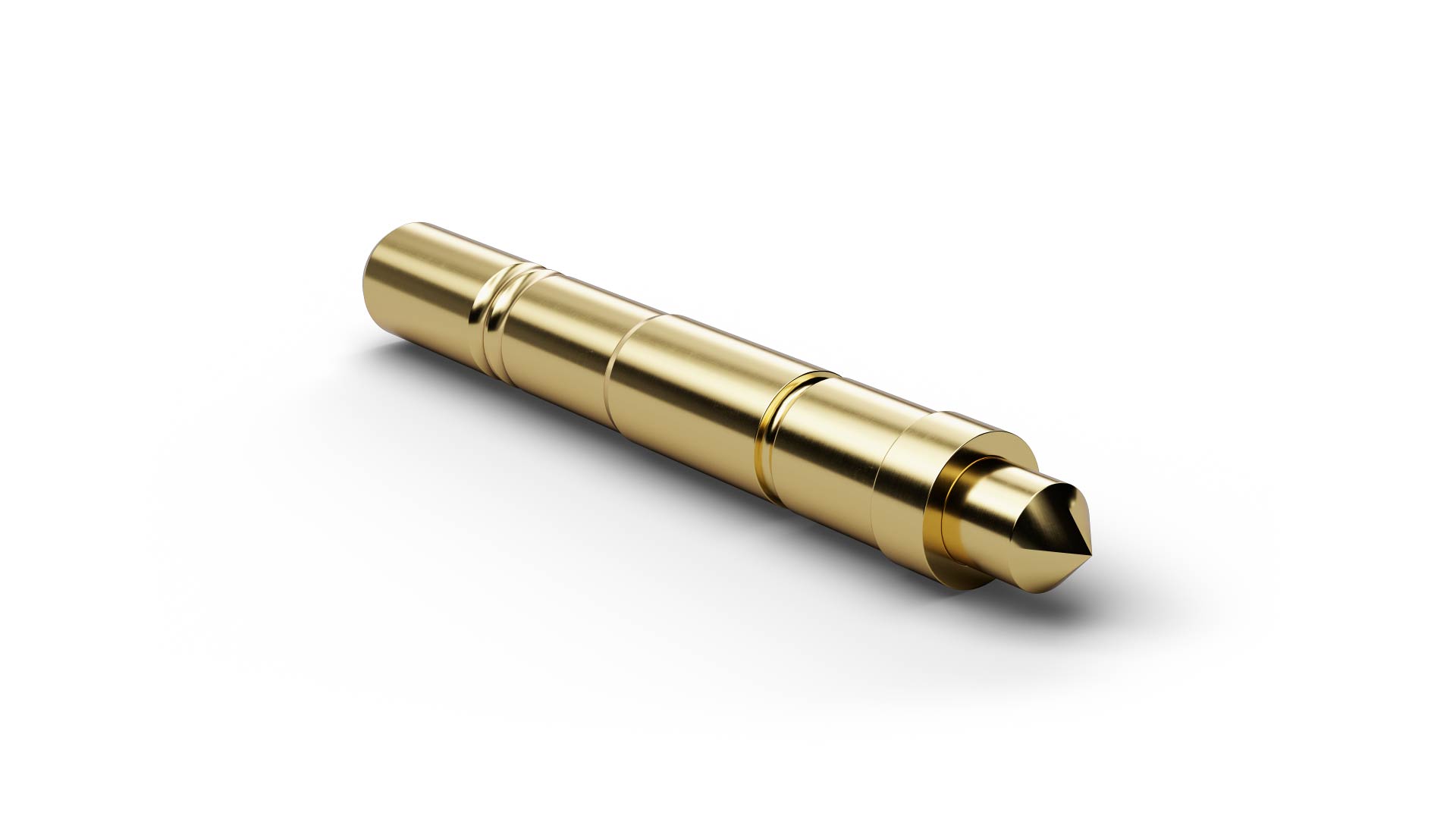

The Pogo Connector P16501S120L075TL126CR (item number 1001482) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P16501S120L075TL126CR is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P16501S120L075TL126CR is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P16501S120L075TL126CR, a pitch of 2.54 mm / 100 mil is combined with 75 cN spring force and 1.3 mm nominal travel. P16501S120L075TL126CR is rated for 8 A continuous current with a typical contact resistance of 30 mΩ. On P16501S120L075TL126CR, tip style 01 (Conical 90°) has a diameter of 1.2 mm.
