Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F796 |
| Pas (mm/mil) | 3,50 / 138 |
| Température | -45°C...+80°C |

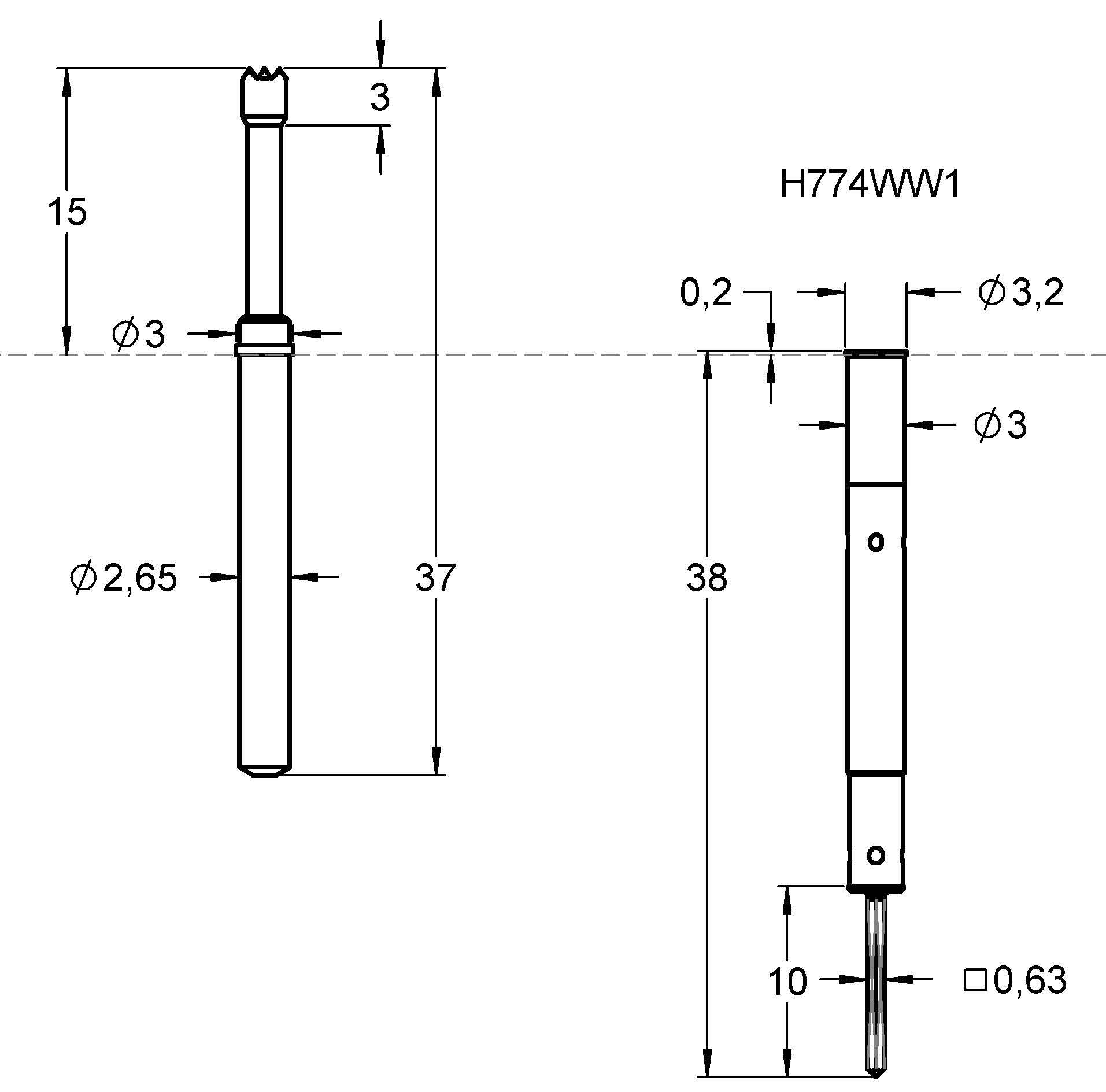

| Dimensions | |
|---|---|
| Longueur totale (mm) | 37 |
| Hauteur hors tout (mm) | 15 |
| Diamètre du style de pointe (mm) | 2.3 |
| Diamètre du fût (mm) | 2.65 |
| Diamètre du collet (mm) | 3 |
| Diamètre de la bague de serrage (mm) | 3 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 14 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 80 |
| Force du ressort (cN) | 300 |
| Course nominale (mm) | 8 |
| Course maximale (mm) | 10 |
| Précision de pointage +/- (mm) | 0.13 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 10 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

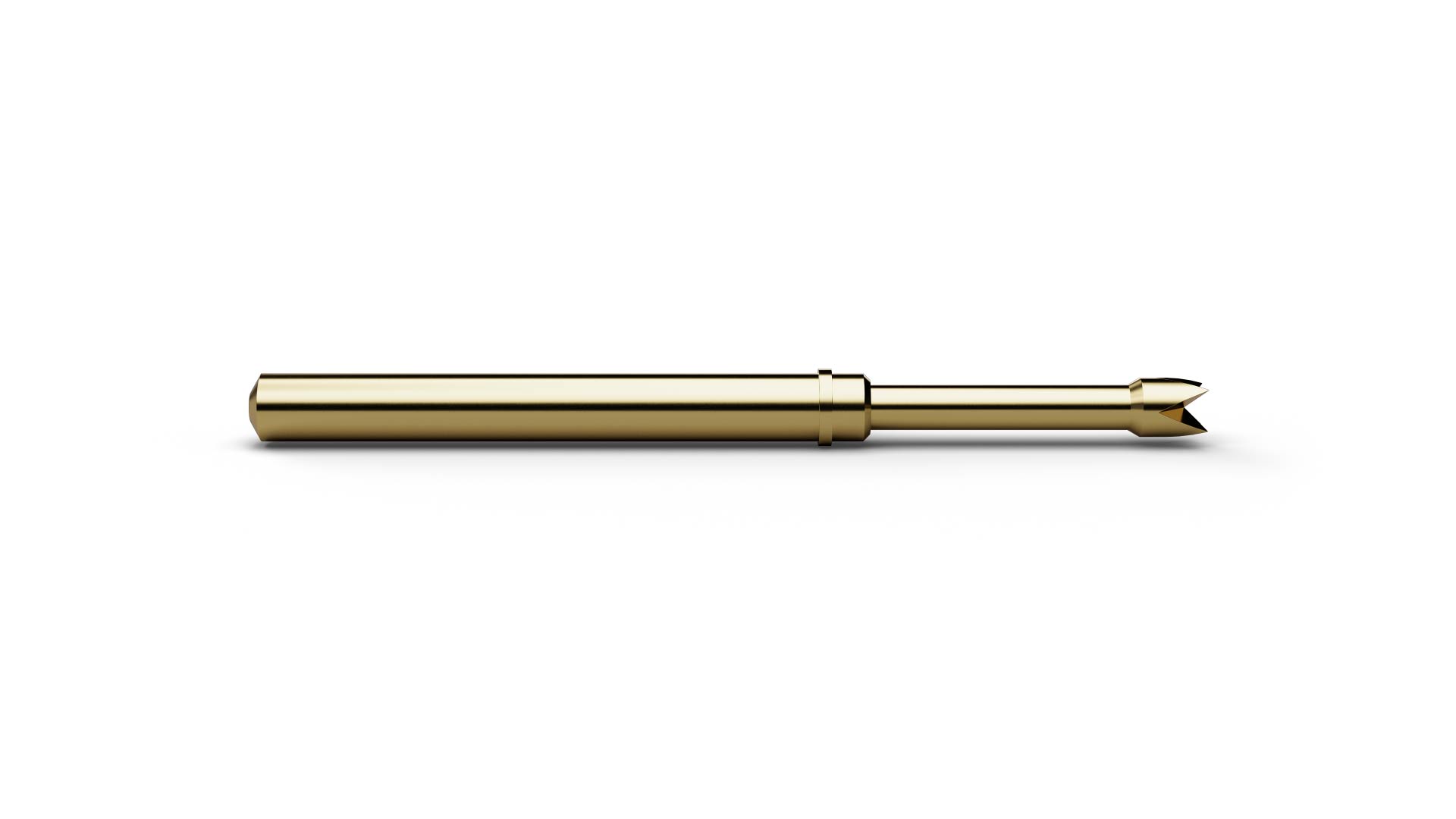

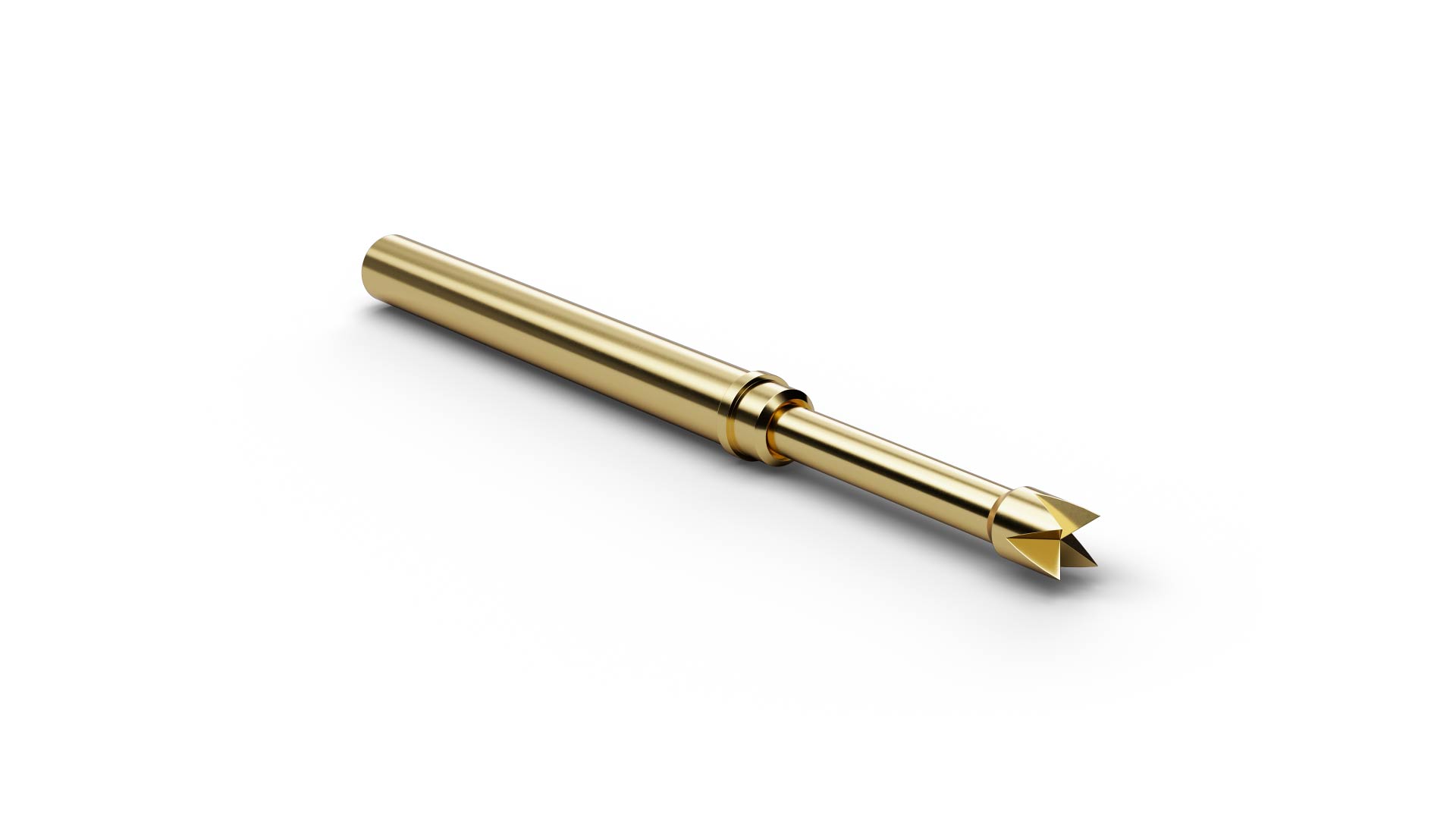

The Basic Contact Probe F79614B230G300 (item number 1001553) is a spring-loaded probe for temporary electrical contact with test points. With tip style 14 (4-point crown stepped (self-cleaning)), F79614B230G300 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F79614B230G300 combines a pitch of 3.5 mm / 138 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 2.3 mm. For F79614B230G300, spring force is 300 cN at a nominal travel of 8 mm. F79614B230G300 is rated for 10 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F79614B230G300 is made of beryllium copper and is gold-plated.
