Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | I- |
| Pas (mm/mil) | 2,00 / 79 |
| Température | -45°C...+250°C |

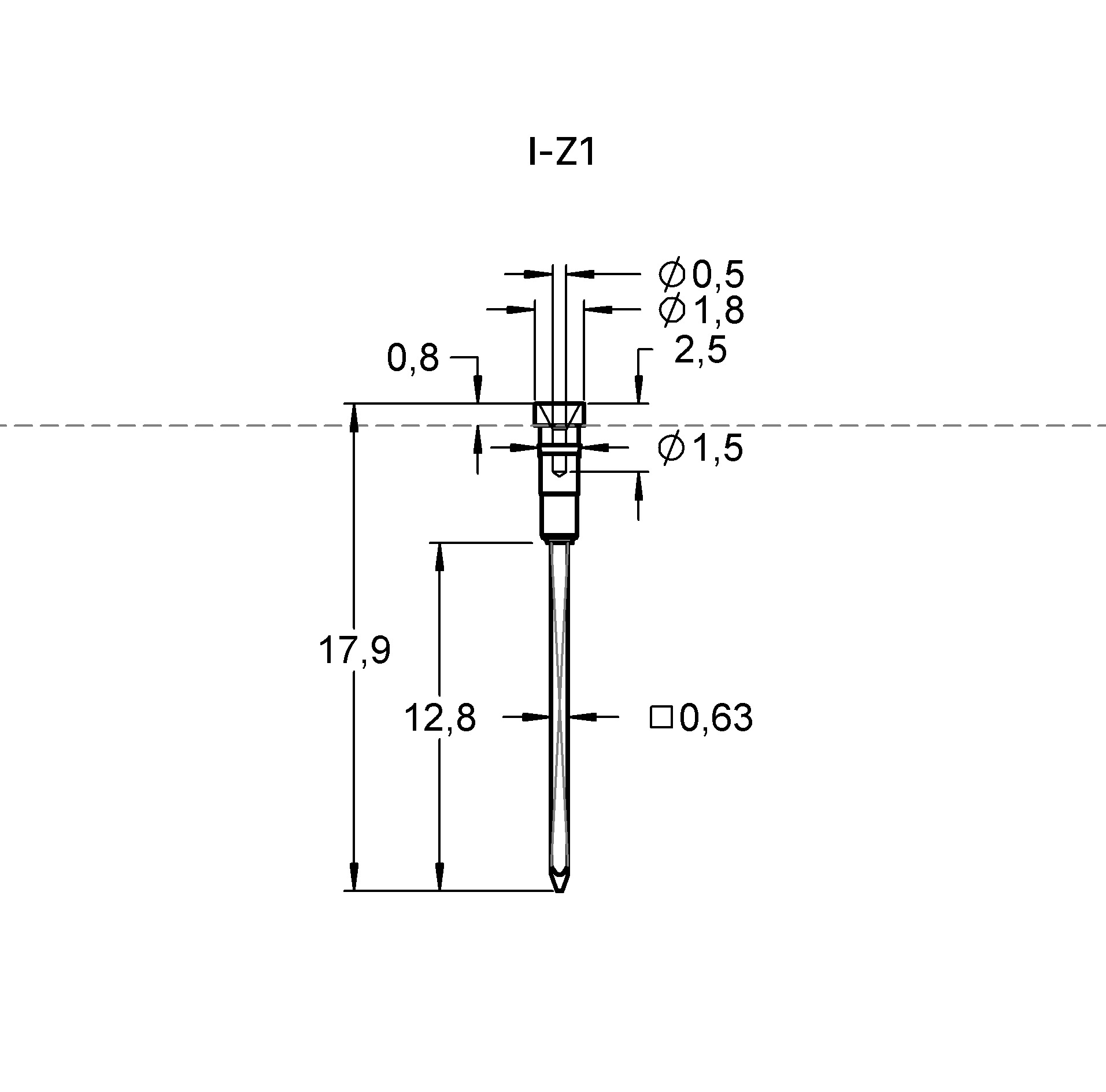

| Dimensions | |
|---|---|
| Longueur totale (mm) | 17.85 |
| Diamètre du style de pointe (mm) | 1.8 |
| Diamètre du fût (mm) | 1.8 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Brass |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Uncoated |
| Matériau du ressort | Brass |
| Revêtement du ressort | Uncoated |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 10 |
Graphiques
Beschreibung des Produkts

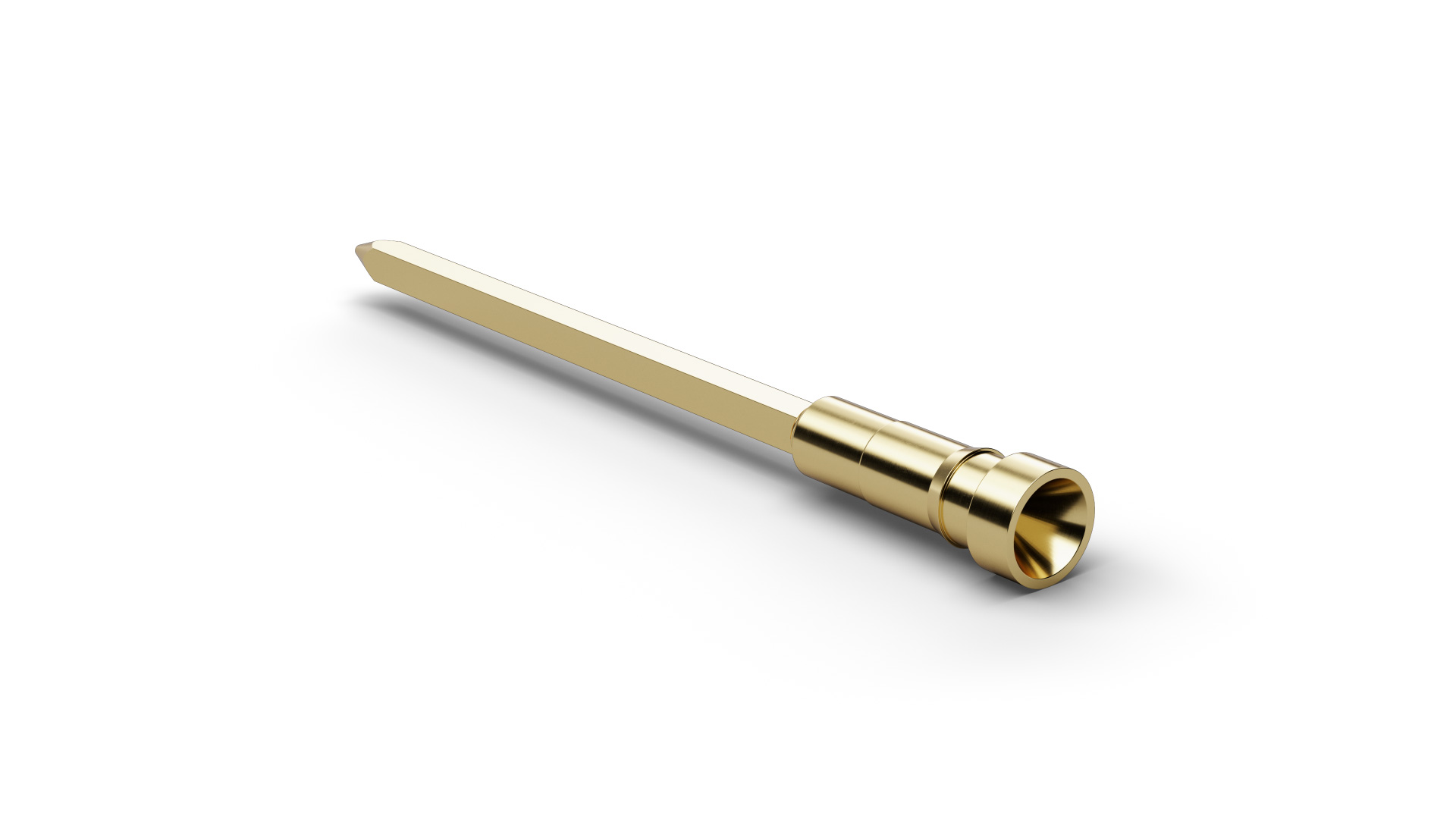

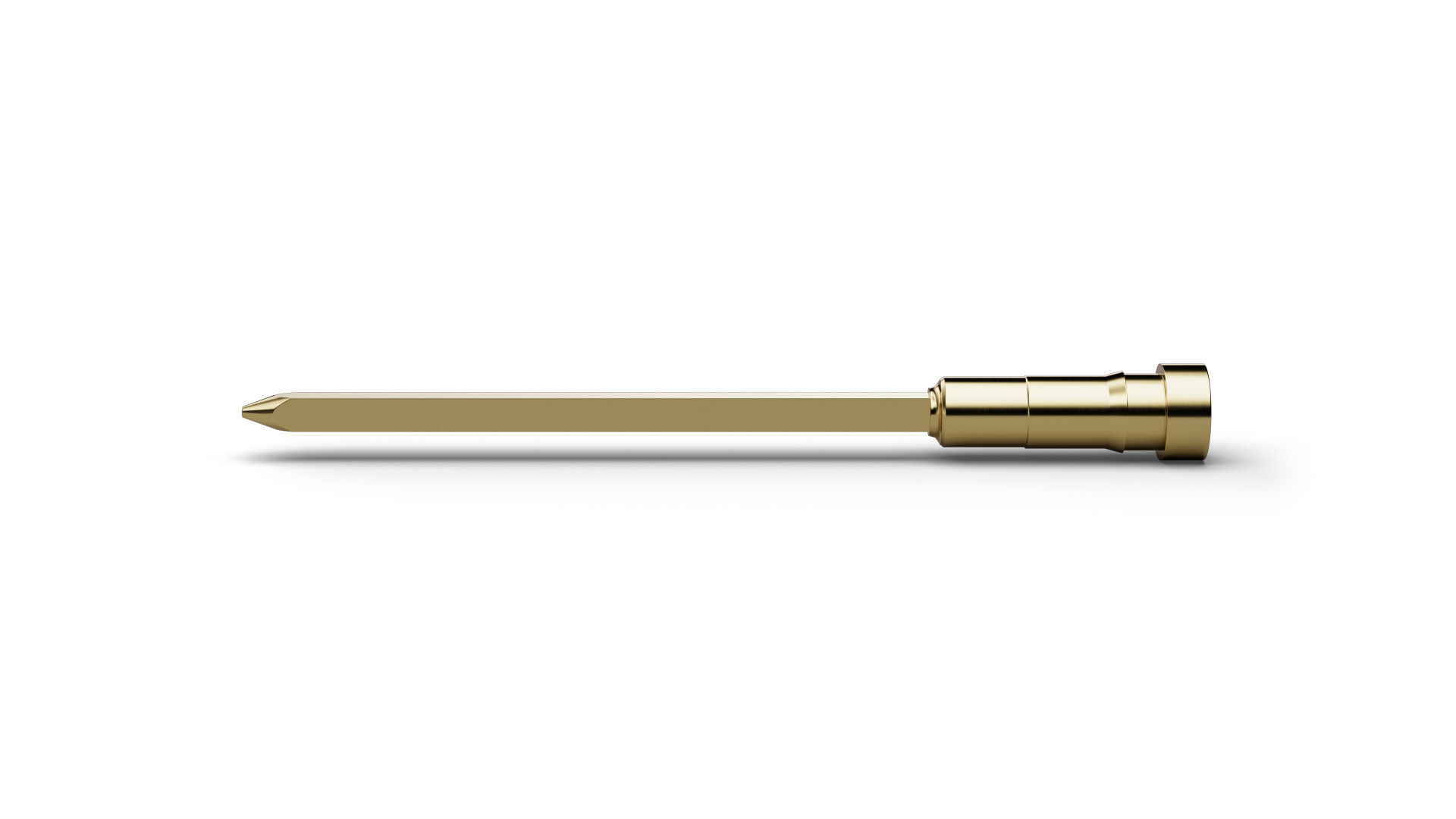

As an Interface Probe, I-Z1 (item number 1001852) provides a repeatable electrical connection within the test interface. I-Z1 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. The design combines a pitch of 2 mm / 79 mil with tip style 05 (Concave stepped) and a tip diameter of 1.8 mm. The continuous-current rating of I-Z1 is 10 A. The plunger in I-Z1 is made of brass and is gold-plated.
