Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | P / P067-L114 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 11.4 |
| Hauteur hors tout (mm) | 2.2 |
| Diamètre du style de pointe (mm) | 0.48 |
| Diamètre du fût (mm) | 0.67 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 01 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Silver |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 15 |
| Force du ressort (cN) | 50 |
| Course nominale (mm) | 0.8 |
| Course maximale (mm) | 1.2 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 4 |
| Résistance de contact typique (mΩ) | 70 |
Graphiques
Beschreibung des Produkts

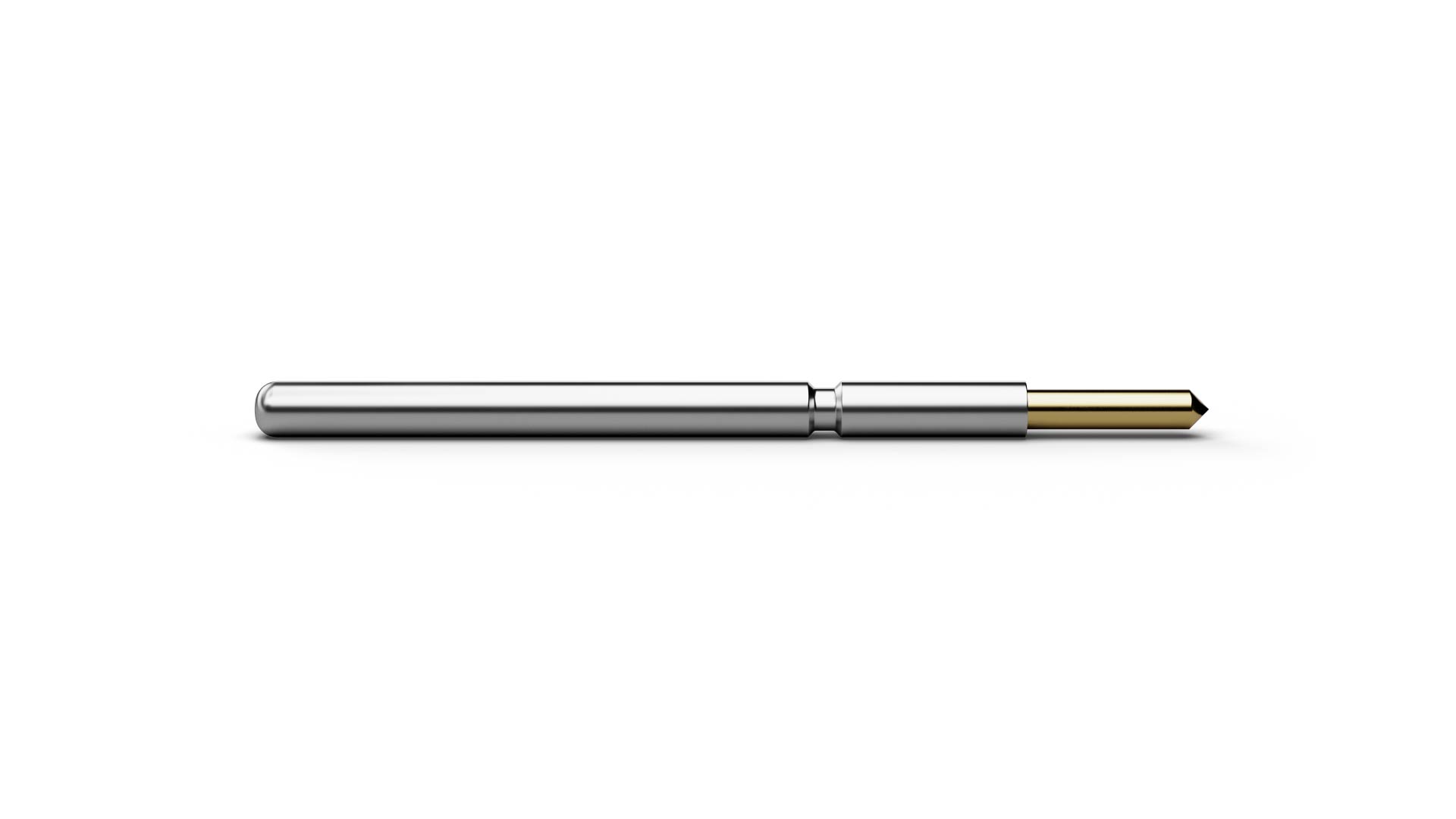

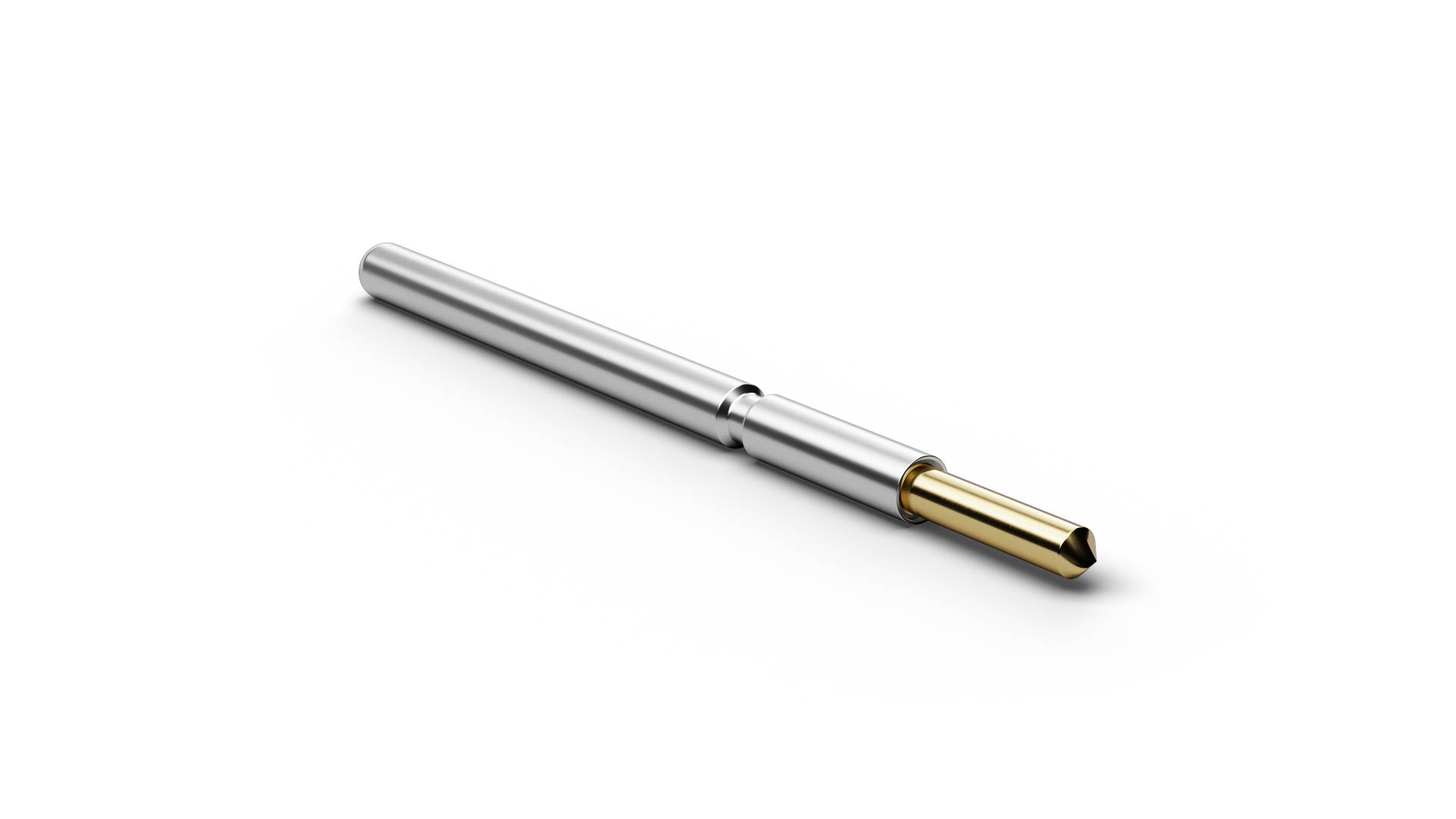

The Pogo Connector P06701S048L050L114 (item number 1003071) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P06701S048L050L114 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P06701S048L050L114 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P06701S048L050L114, a pitch of 1.27 mm / 50 mil is combined with 50 cN spring force and 0.8 mm nominal travel. P06701S048L050L114 is rated for 4 A continuous current with a typical contact resistance of 70 mΩ. On P06701S048L050L114, tip style 01 (Conical 90°) has a diameter of 0.48 mm.
