Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | P-T / P140T-L053 |
| Pas (mm/mil) | 2,20 / 87 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 5.3 |
| Hauteur hors tout (mm) | 2.8 |
| Diamètre du style de pointe (mm) | 0.85 |
| Diamètre du fût (mm) | 1.4 |
| Diamètre du collet (mm) | 1.68 |
| Diamètre de la bague de serrage (mm) | 1.68 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 11 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 40 |
| Force du ressort (cN) | 100 |
| Course nominale (mm) | 1 |
| Course maximale (mm) | 1.2 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 8 |
| Résistance de contact typique (mΩ) | 100 |
Graphiques
Beschreibung des Produkts

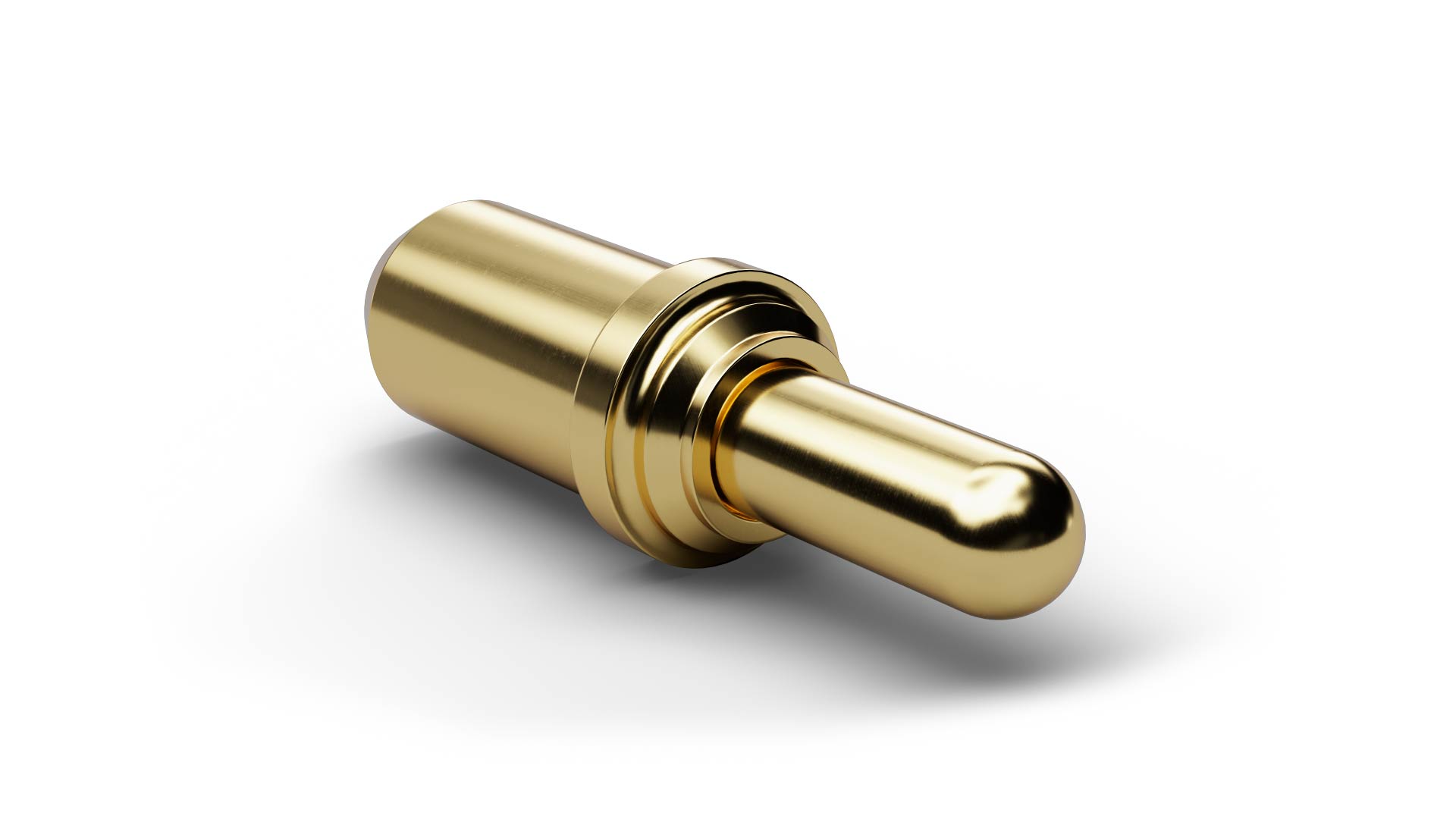

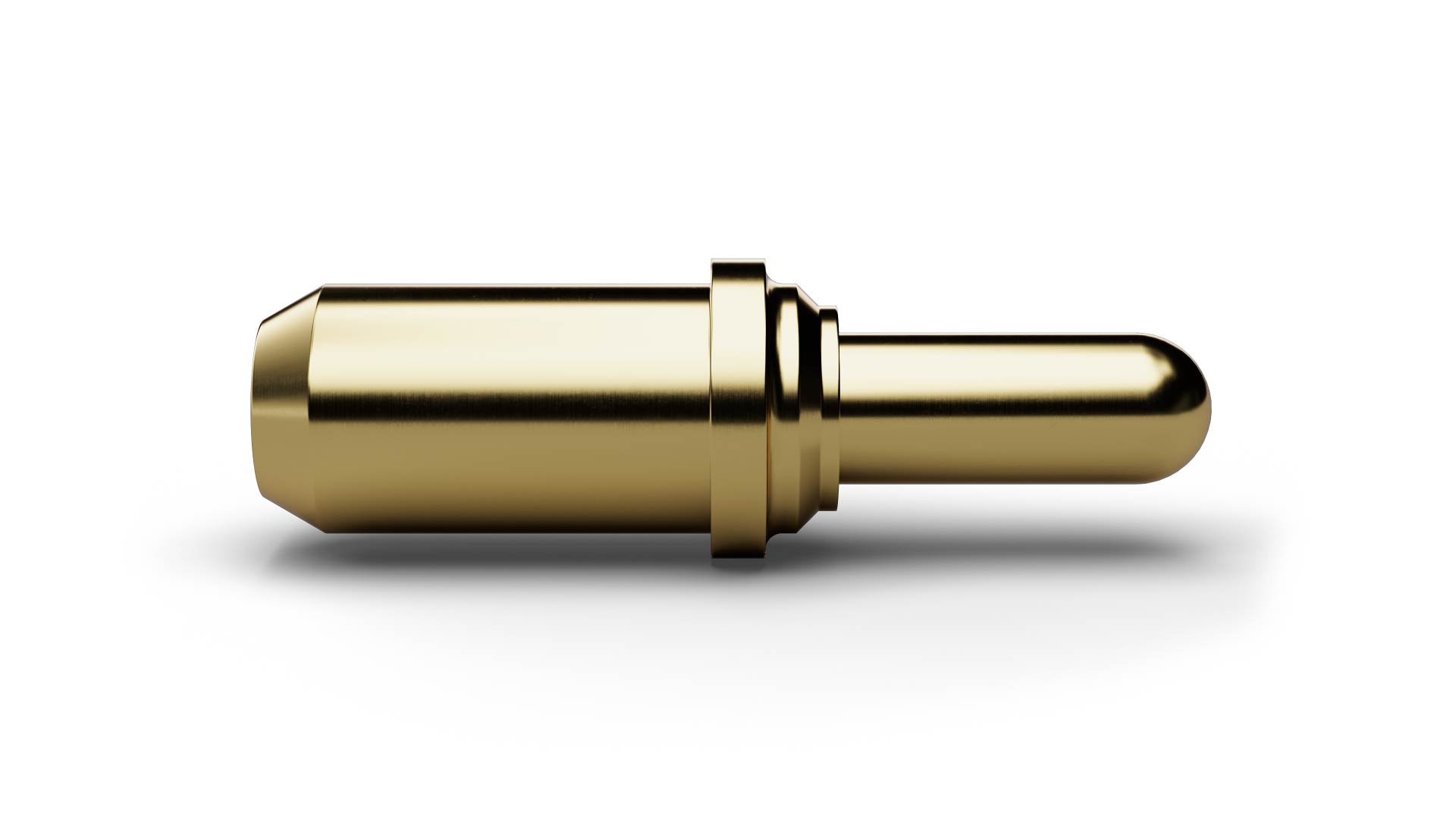

The Pogo Connector P14011B085G100TL053ST (item number 1003075) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P14011B085G100TL053ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P14011B085G100TL053ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P14011B085G100TL053ST, a pitch of 2.2 mm / 87 mil is combined with 100 cN spring force and 1 mm nominal travel. P14011B085G100TL053ST is rated for 8 A continuous current with a typical contact resistance of 100 mΩ. On P14011B085G100TL053ST, tip style 11 (Spherical) has a diameter of 0.85 mm.
