Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | P-T / P197T-L090 |
| Pas (mm/mil) | 3,00 / 118 |
| Température | -45°C...+200°C |

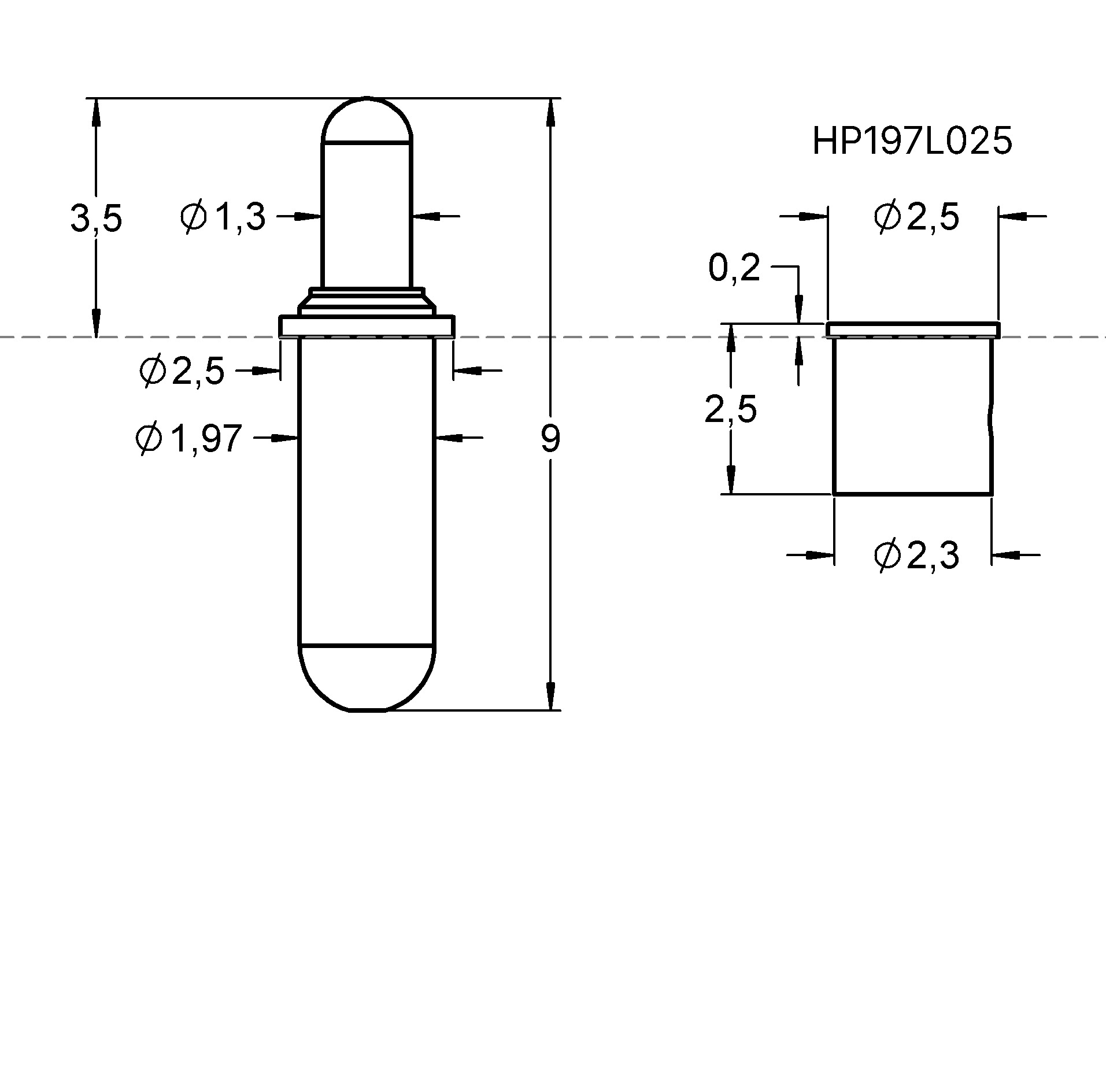

| Dimensions | |
|---|---|
| Longueur totale (mm) | 9 |
| Hauteur hors tout (mm) | 3.5 |
| Diamètre du style de pointe (mm) | 1.3 |
| Diamètre du fût (mm) | 1.97 |
| Diamètre du collet (mm) | 2.53 |
| Diamètre de la bague de serrage (mm) | 2.53 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 11 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Rhodium |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 40 |
| Force du ressort (cN) | 130 |
| Course nominale (mm) | 1.5 |
| Course maximale (mm) | 2.2 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 9 |
| Résistance de contact typique (mΩ) | 100 |
Graphiques
Beschreibung des Produkts

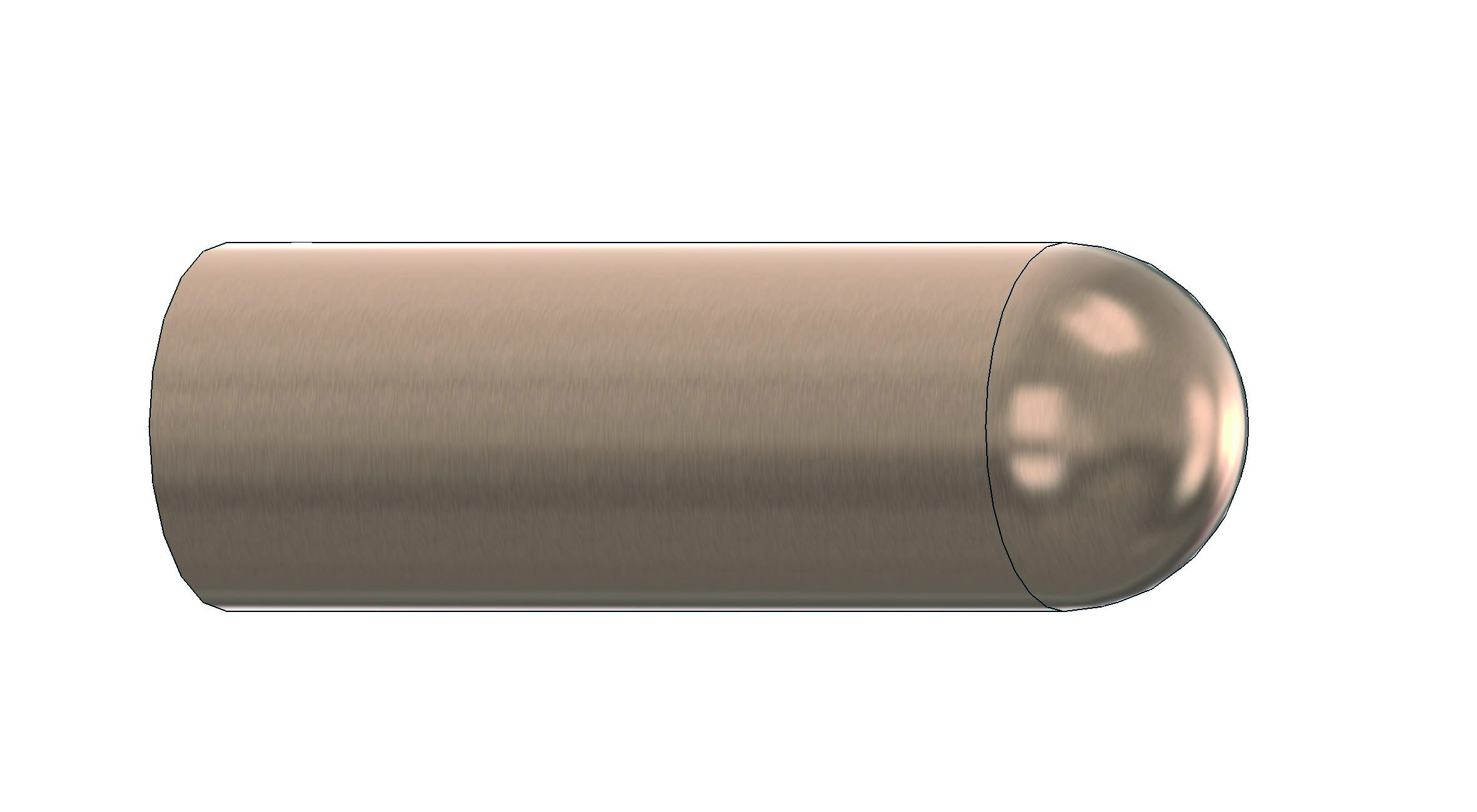

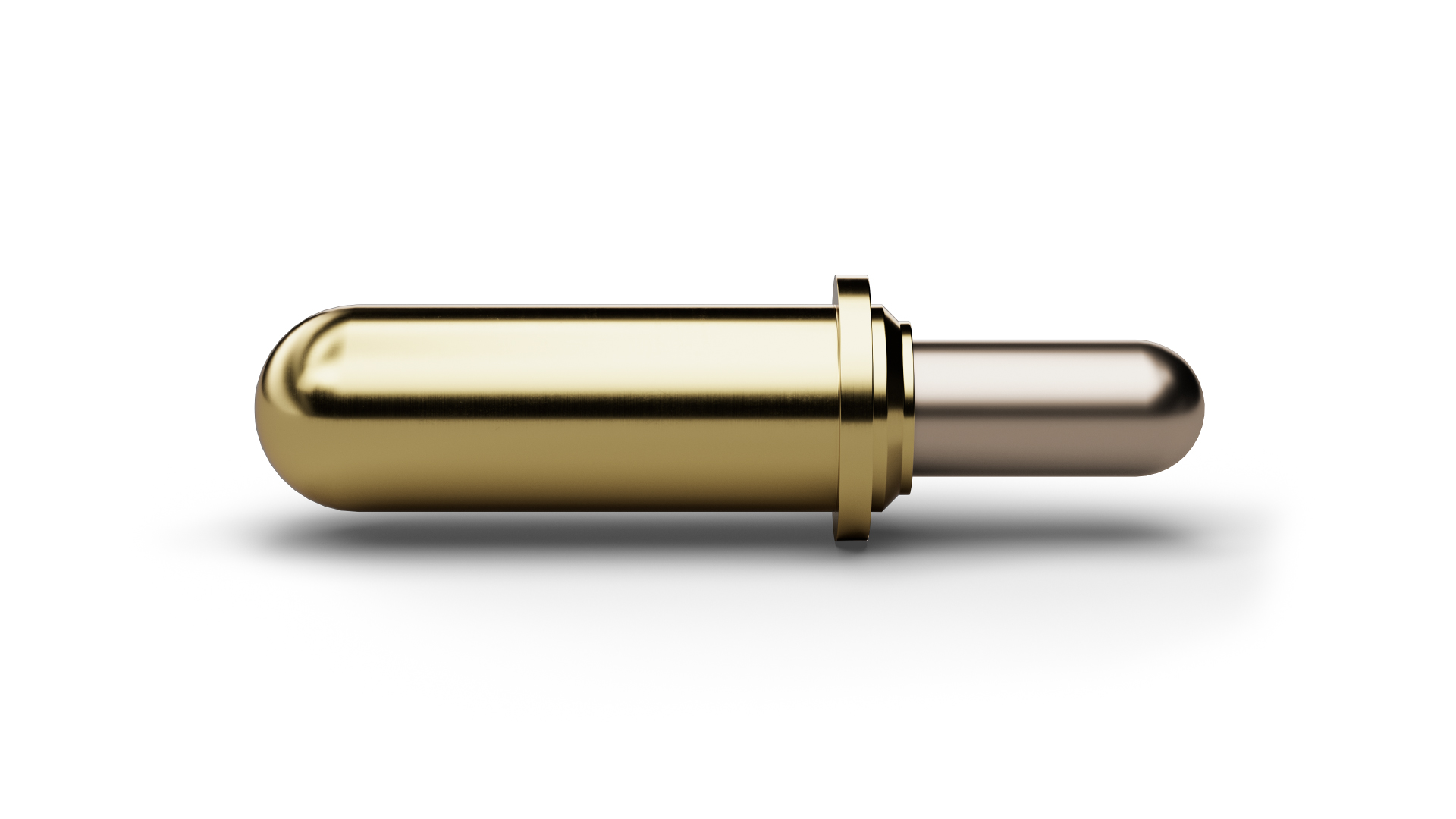

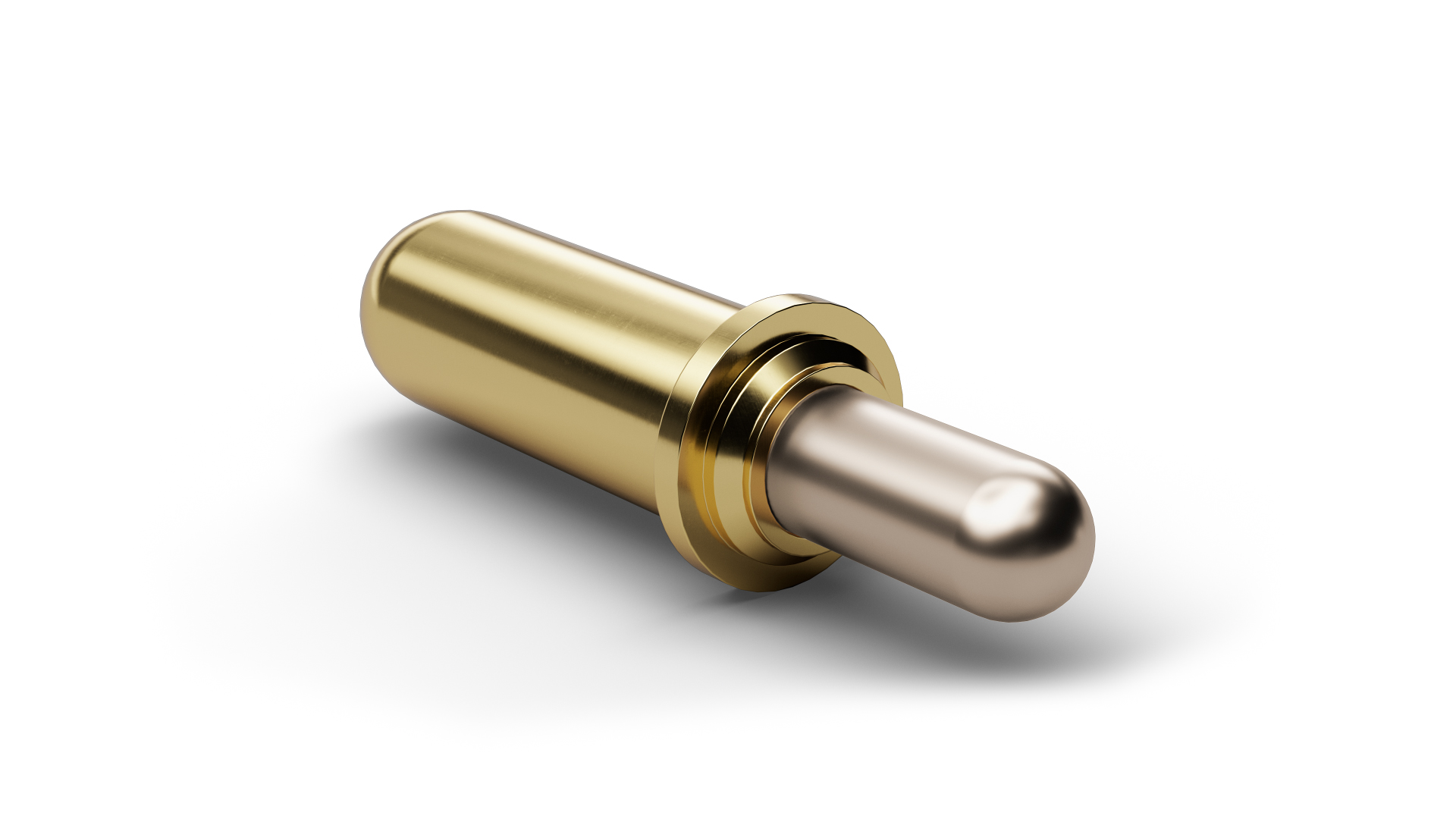

The Pogo Connector P19711B130R130TL090 (item number 1003659) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P19711B130R130TL090 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P19711B130R130TL090 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P19711B130R130TL090, a pitch of 3 mm / 118 mil is combined with 130 cN spring force and 1.5 mm nominal travel. P19711B130R130TL090 is rated for 9 A continuous current with a typical contact resistance of 100 mΩ. On P19711B130R130TL090, tip style 11 (Spherical) has a diameter of 1.3 mm.
