Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F788 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 43 |
| Hauteur hors tout (mm) | 12 |
| Diamètre du style de pointe (mm) | 0.9 |
| Diamètre du fût (mm) | 0.78 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 30 |
| Force du ressort (cN) | 165 |
| Course nominale (mm) | 6.4 |
| Course maximale (mm) | 7 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 2 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques
Beschreibung des Produkts

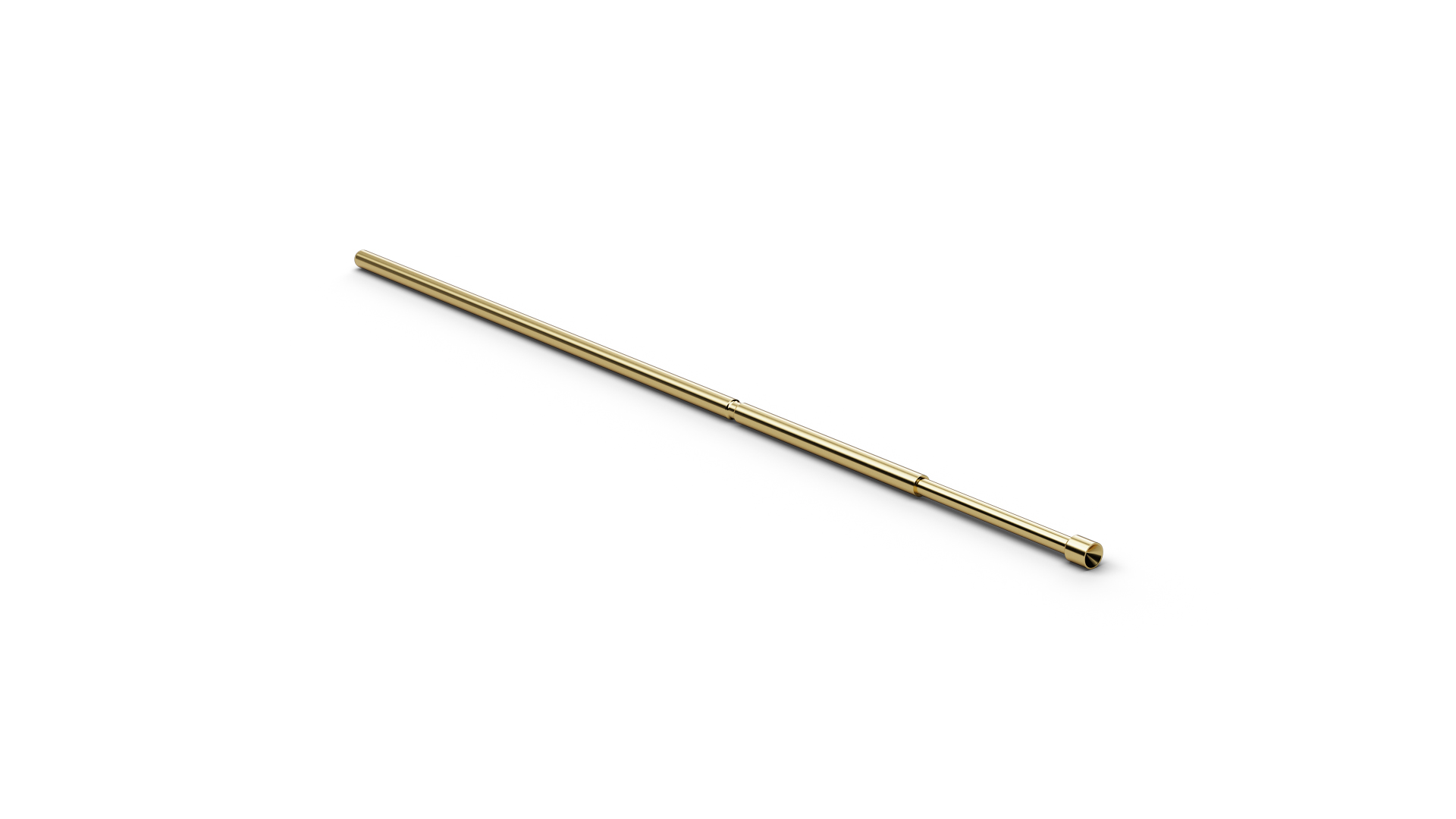

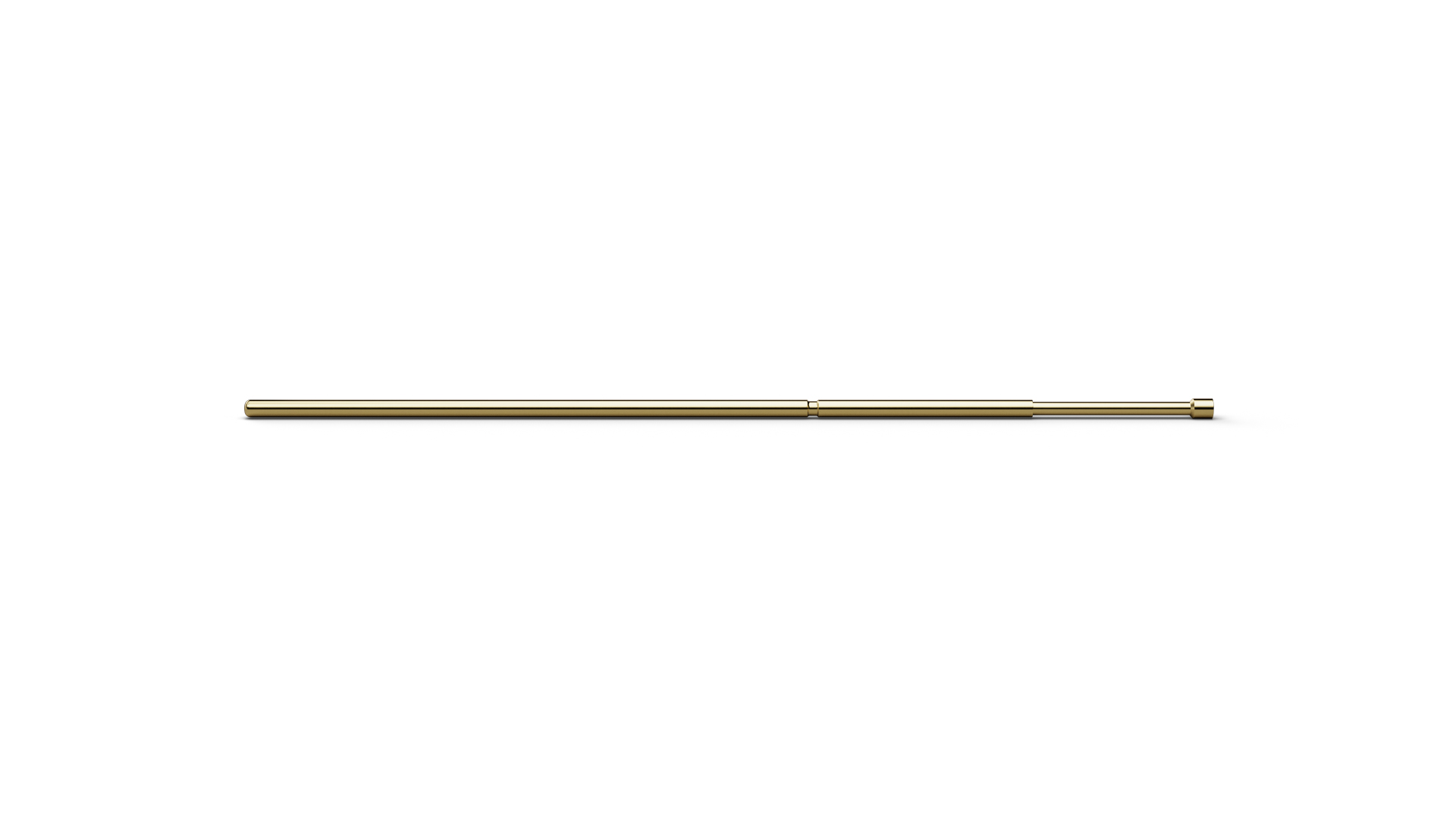

F78805B090G165 (item number 1003732) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 05 (Concave stepped), F78805B090G165 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F78805B090G165 combines a pitch of 1.27 mm / 50 mil with tip style 05 (Concave stepped) and a tip diameter of 0.9 mm. For F78805B090G165, spring force is 165 cN at a nominal travel of 6.4 mm. F78805B090G165 is rated for 2 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F78805B090G165 is made of beryllium copper and is gold-plated.
