Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F701 |
| Pas (mm/mil) | 1,90 / 75 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 27.5 |
| Hauteur hors tout (mm) | 12.5 |
| Diamètre du style de pointe (mm) | 1.5 |
| Diamètre du fût (mm) | 1 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 50 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 4 |
| Course maximale (mm) | 5 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 4 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques

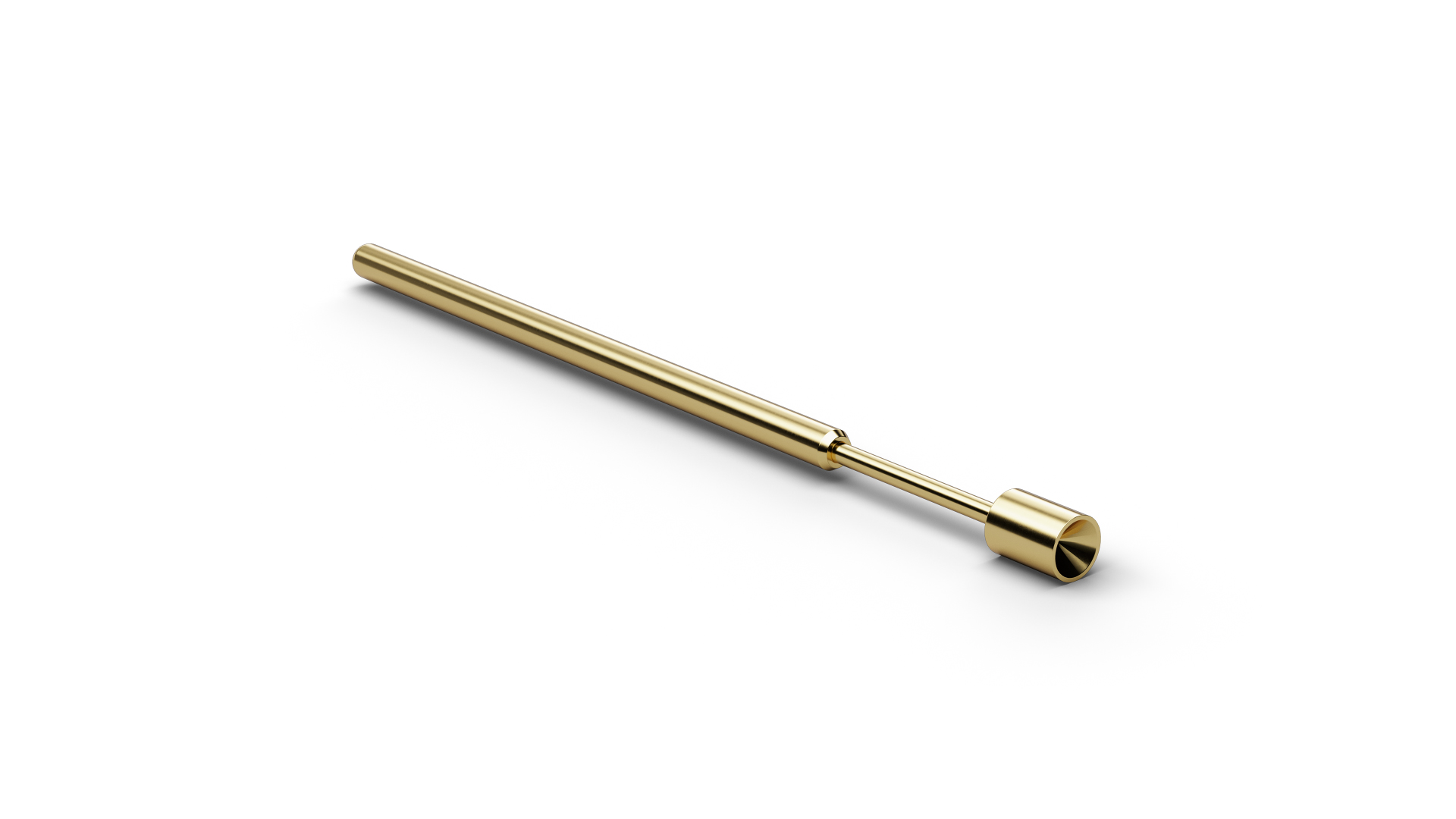

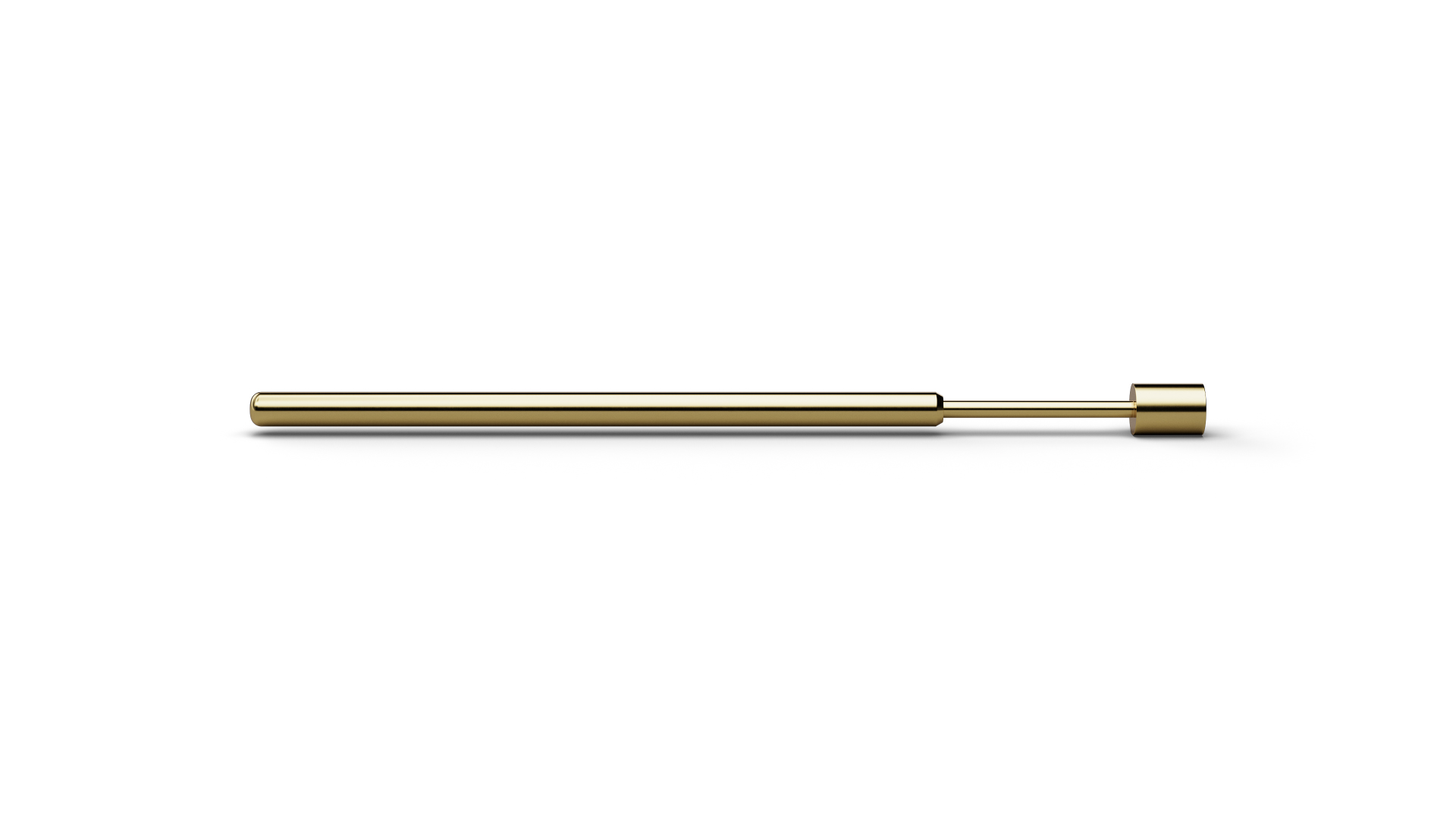

Beschreibung des Produkts
The Basic Contact Probe F70105B150G150 (item number 1004844) is a spring-loaded probe for temporary electrical contact with test points. With tip style 05 (Concave stepped), F70105B150G150 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F70105B150G150 combines a pitch of 1.9 mm / 75 mil with tip style 05 (Concave stepped) and a tip diameter of 1.5 mm. For F70105B150G150, spring force is 150 cN at a nominal travel of 4 mm. F70105B150G150 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F70105B150G150 is made of beryllium copper and is gold-plated.
