Données techniques
| Généralités | |
|---|---|
| Type/famille | H880 |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 21.2 |
| Diamètre de la bague de serrage (mm) | 3.2 |
| Diamètre extérieur (mm) | 3 |
| Hauteur du collet (mm) | 0.2 |
| Matériaux et surfaces | |
|---|---|
| Matériau, Revêtement | Brass, Gold |
Graphiques
Beschreibung des Produkts

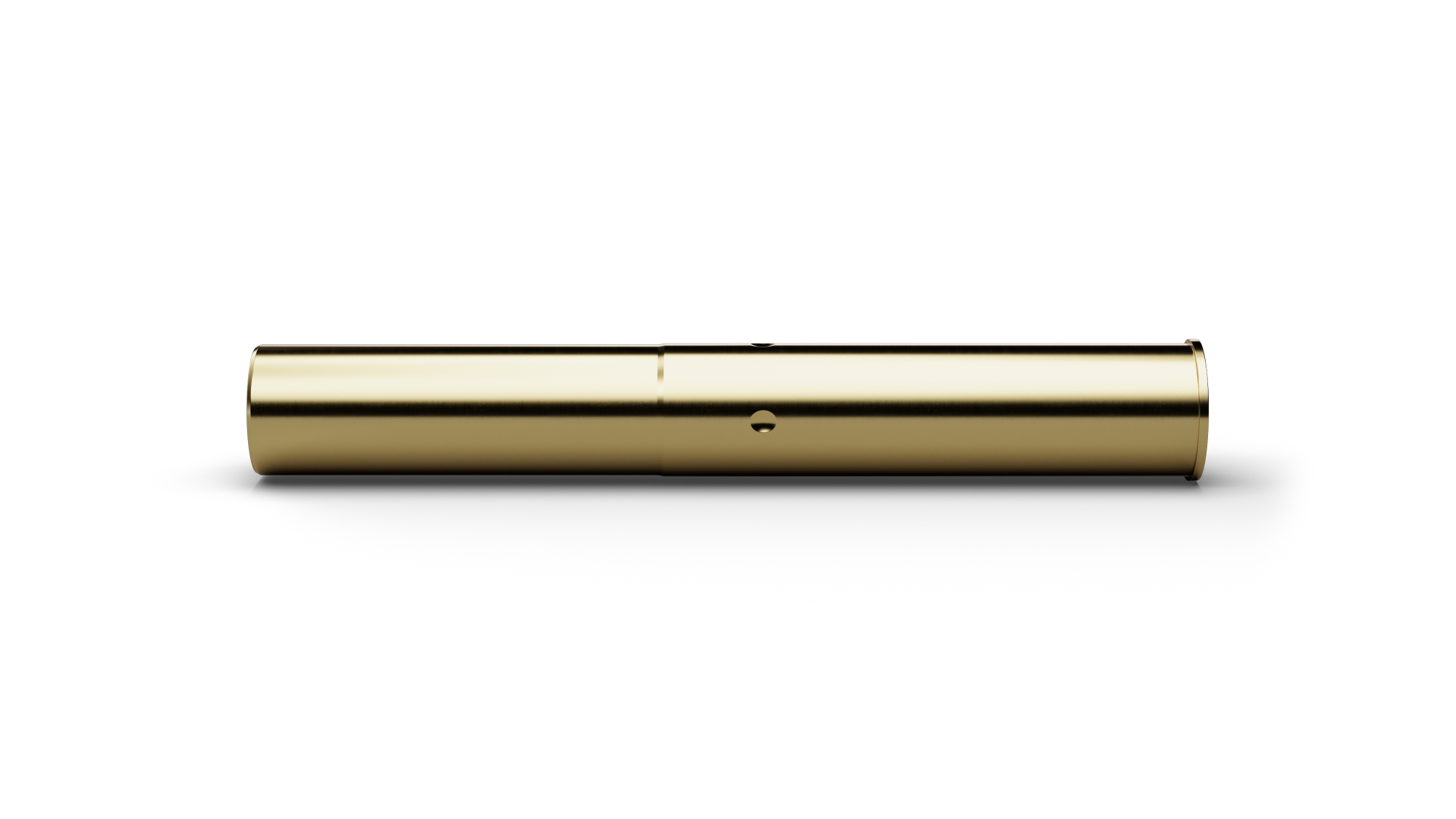

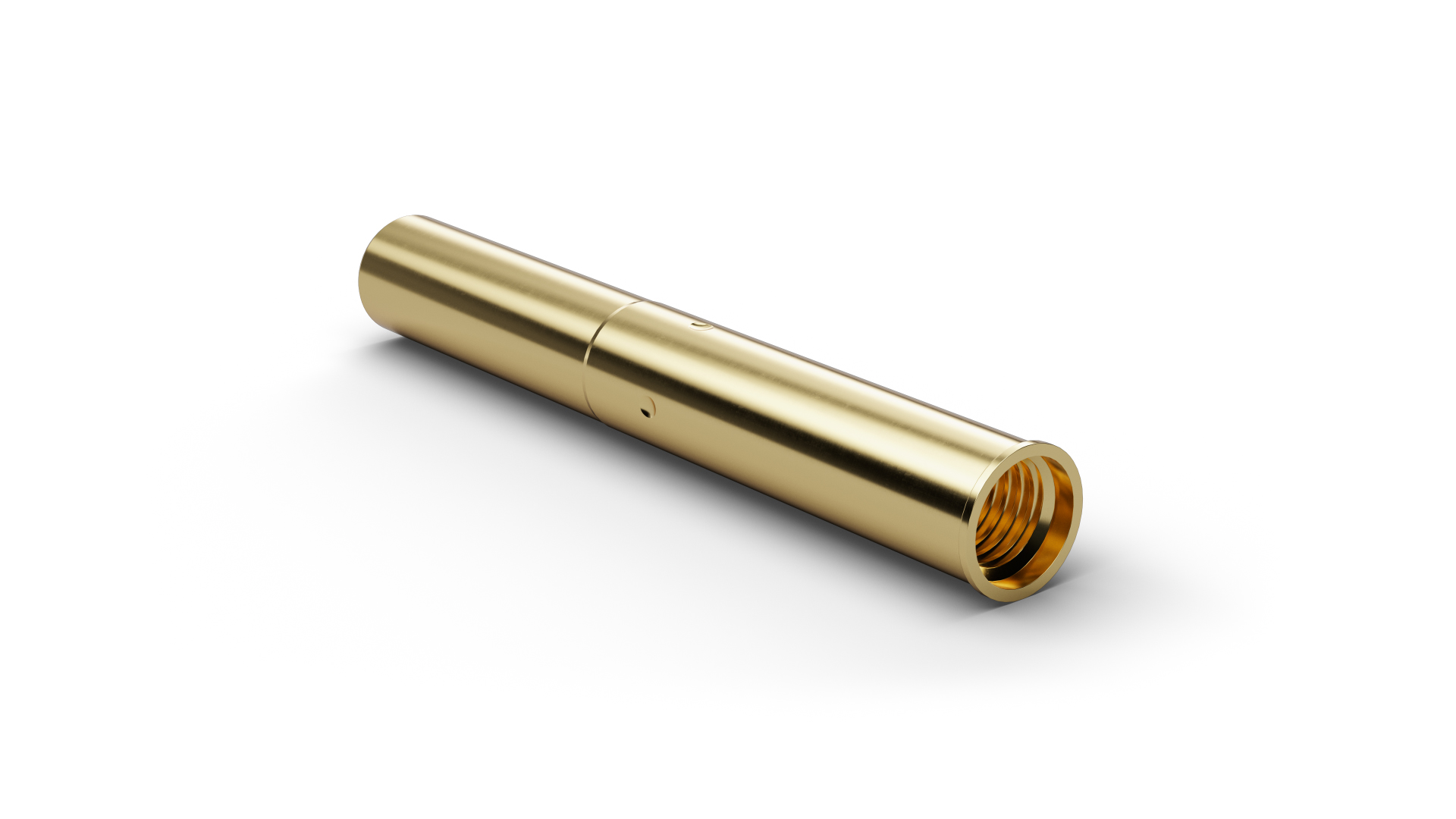

The receptacle H880 (item number 1006696) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H880 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H880, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
