Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F771 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |

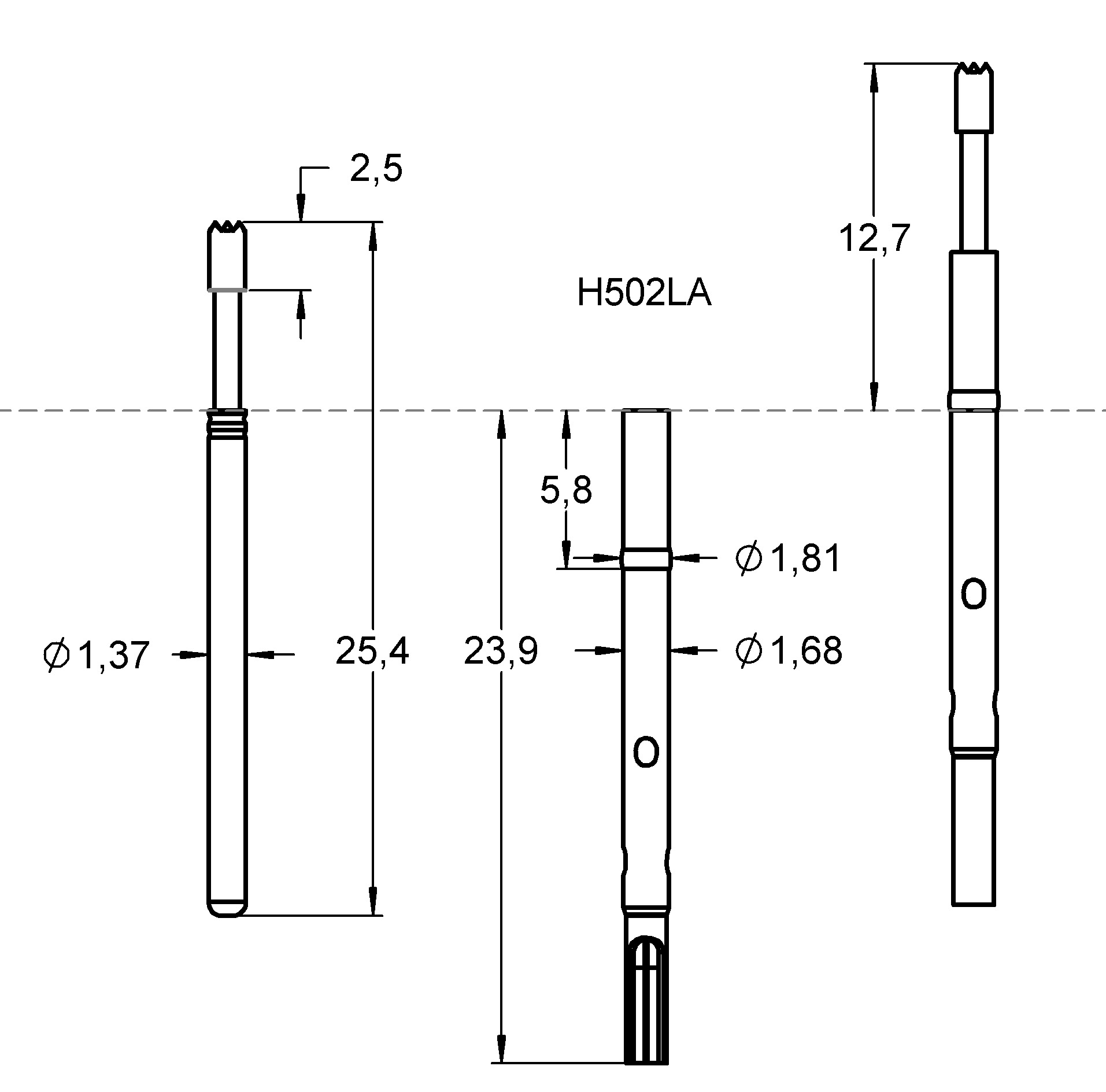

| Dimensions | |
|---|---|
| Longueur totale (mm) | 25.4 |
| Hauteur hors tout (mm) | 12.7 |
| Diamètre du style de pointe (mm) | 1.8 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 15 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Nickel silver |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 50 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 3.5 |
| Course maximale (mm) | 4.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques
Beschreibung des Produkts

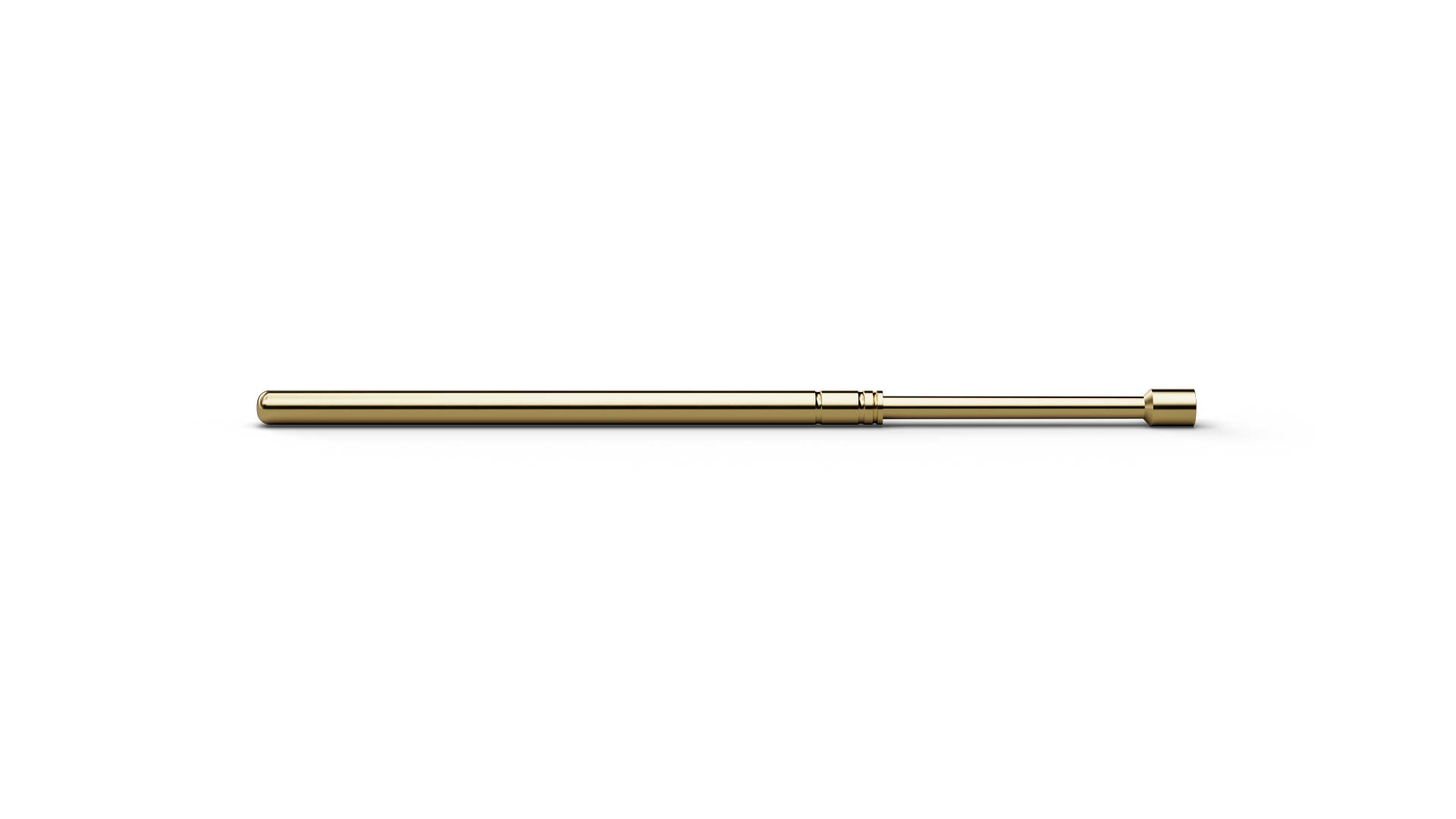

The Basic Contact Probe F77115B180G150 (item number 1007532) is a spring-loaded probe for temporary electrical contact with test points. With tip style 15 (Triangular 45° stepped), F77115B180G150 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. The design combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.8 mm. For F77115B180G150, spring force is 150 cN at a nominal travel of 3.5 mm. The electrical rating of F77115B180G150 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F77115B180G150 is made of beryllium copper and is gold-plated.
