Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | HCF772 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 32.3 |
| Hauteur hors tout (mm) | 10.5 |
| Diamètre du style de pointe (mm) | 2 |
| Diamètre du fût (mm) | 1.66 |
| Diamètre du collet (mm) | 2 |
| Diamètre de la bague de serrage (mm) | 2 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 50 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 4 |
| Course maximale (mm) | 5 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 20 |
| Résistance de contact typique (mΩ) | 10 |
Graphiques
Beschreibung des Produkts

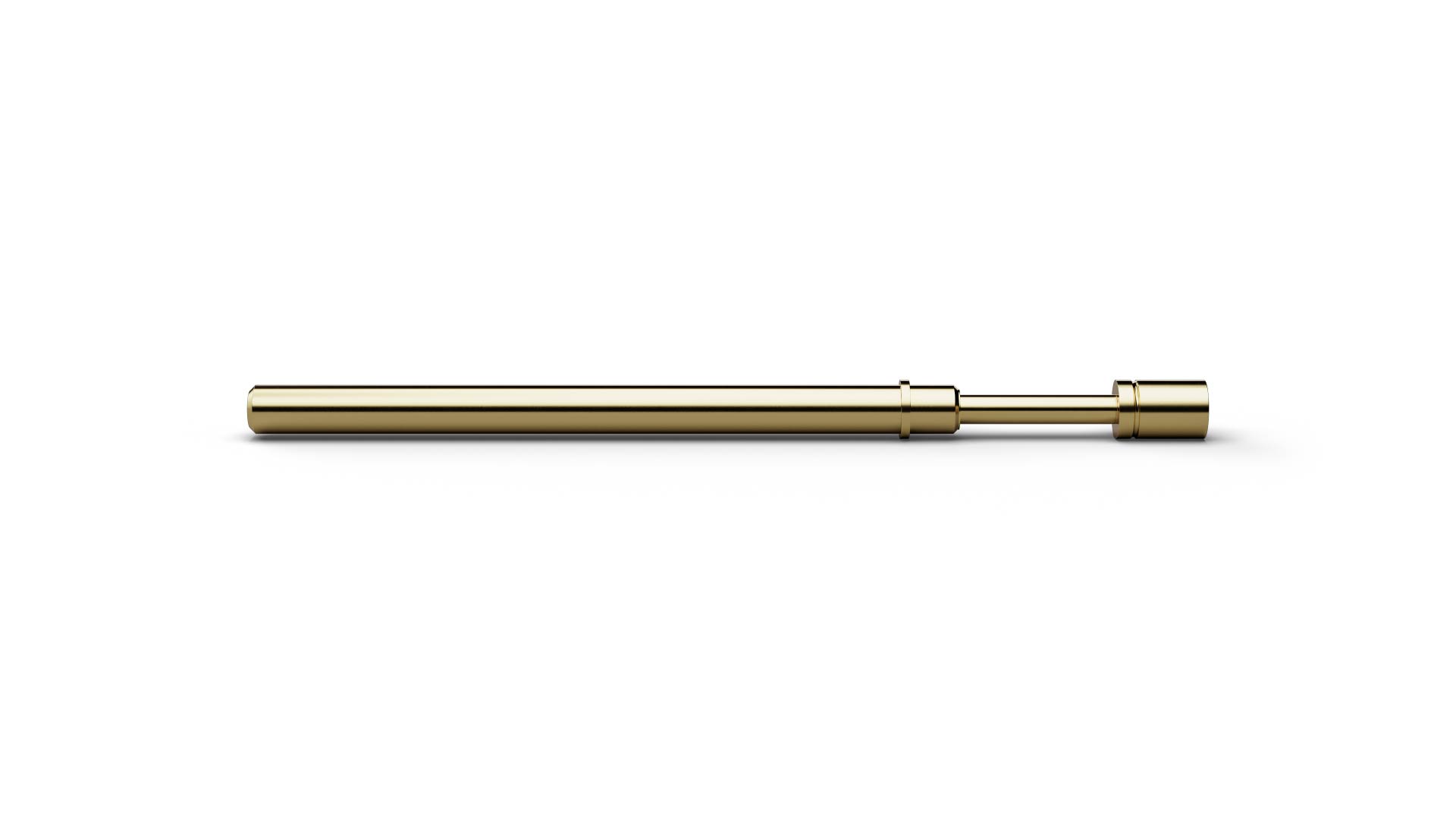

The High Current Probe HCF77205B200G150 (item number 1008616) is designed for safe transmission of high electrical currents in test and contacting applications. HCF77205B200G150 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77205B200G150, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF77205B200G150 includes power-electronics testing. HCF77205B200G150 is rated for 20 A continuous current with a typical contact resistance of 10 mΩ. HCF77205B200G150 operates with 150 cN spring force and 4 mm nominal travel.
