Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F588 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |
| Définition complémentaire | S |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 37.3 |
| Hauteur hors tout (mm) | 12.4 |
| Diamètre du style de pointe (mm) | 1.5 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 06 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 75 |
| Force du ressort (cN) | 180 |
| Course nominale (mm) | 7.6 |
| Course maximale (mm) | 10 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 30 |
Graphiques
Beschreibung des Produkts

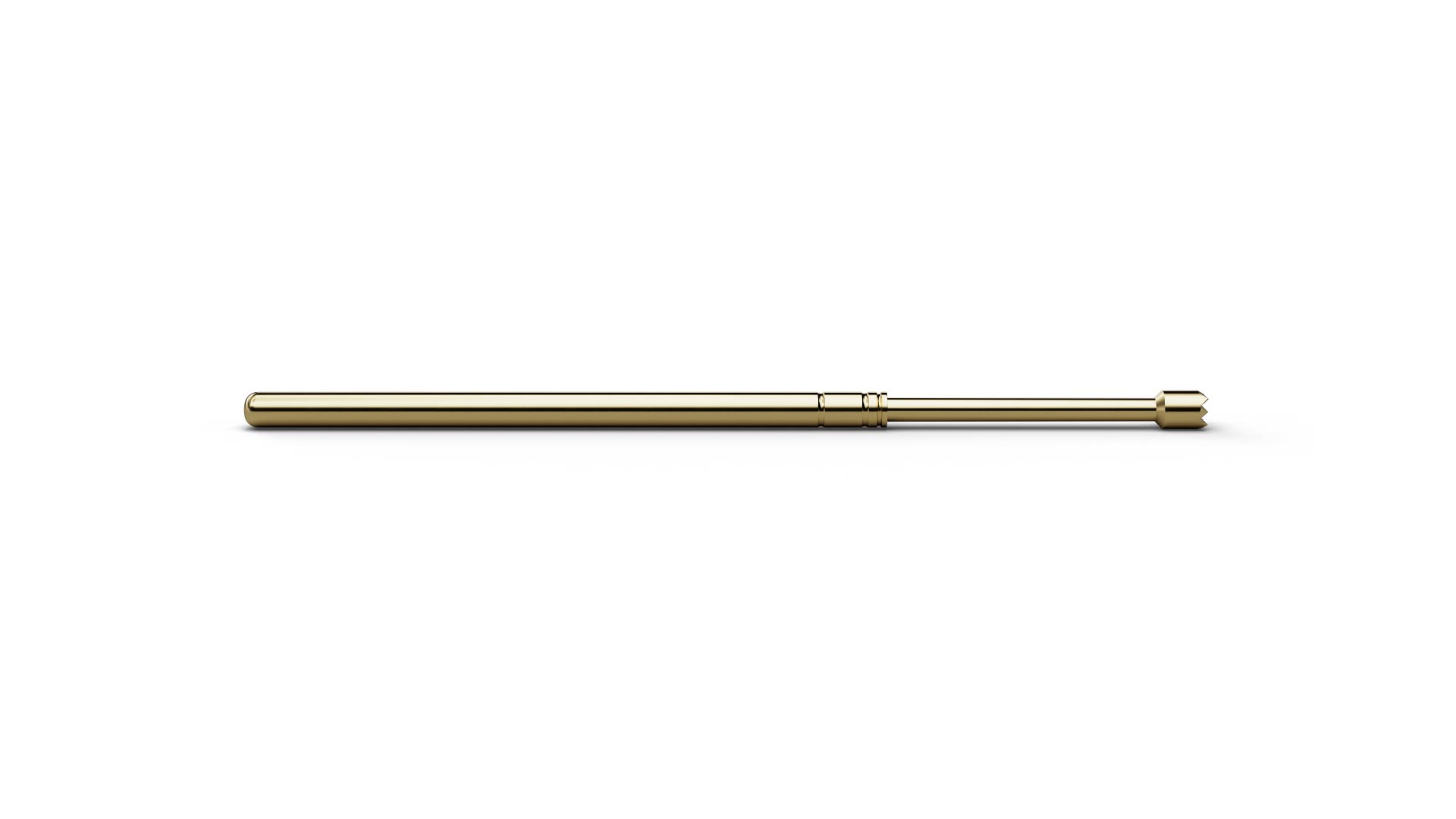

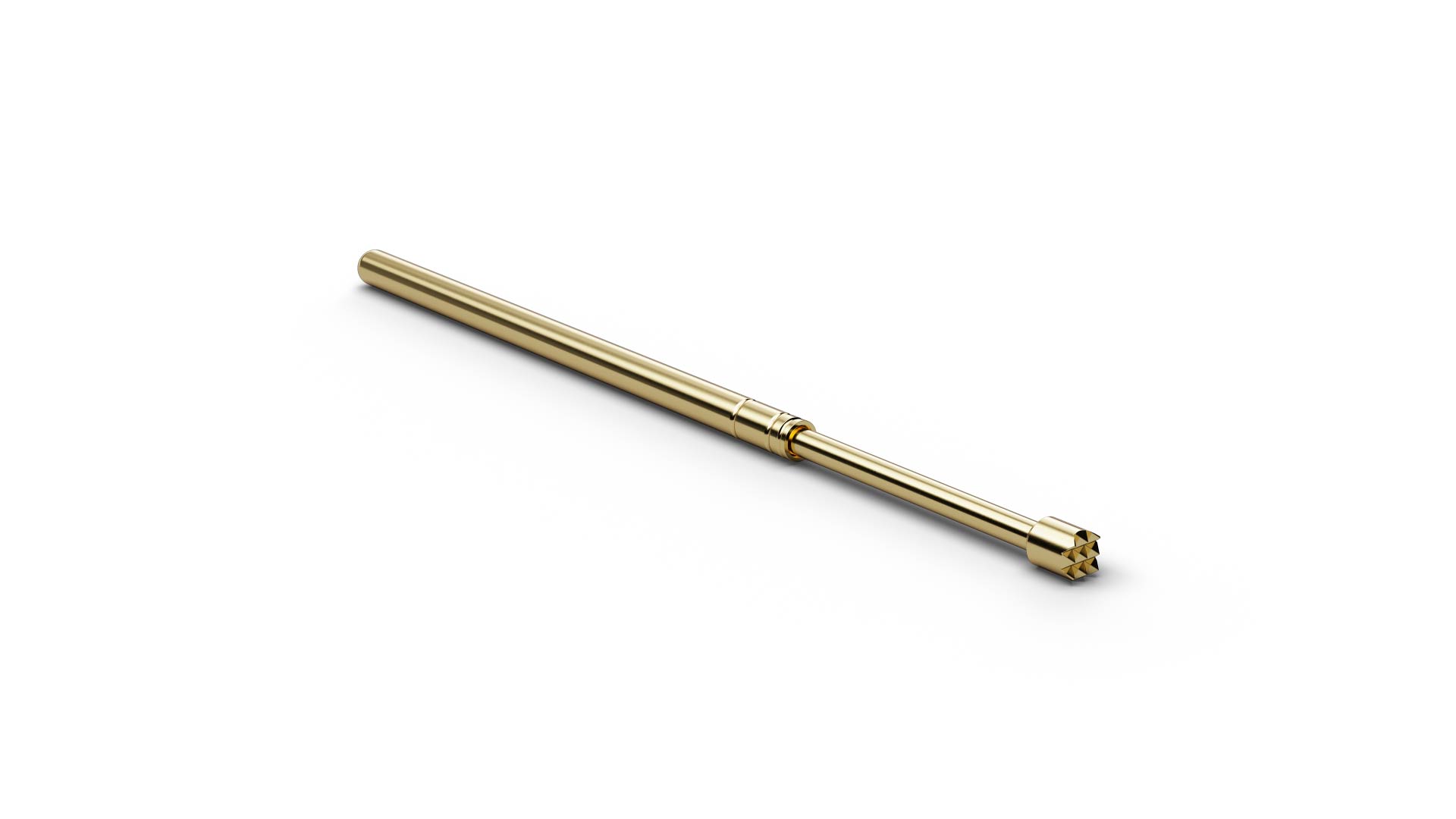

F58806B150G180S (item number 1008846) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 06 (Serrated stepped), F58806B150G180S combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F58806B150G180S combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.5 mm. F58806B150G180S operates with 180 cN spring force and 7.6 mm nominal travel. F58806B150G180S is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58806B150G180S is made of beryllium copper and is gold-plated.
