Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F563 |
| Pas (mm/mil) | 3,00 / 118 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33 |
| Hauteur hors tout (mm) | 16 |
| Diamètre du style de pointe (mm) | 3 |
| Diamètre du fût (mm) | 2.03 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 15 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 90 |
| Force du ressort (cN) | 180 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 6 |
| Résistance de contact typique (mΩ) | 100 |
Graphiques
Beschreibung des Produkts

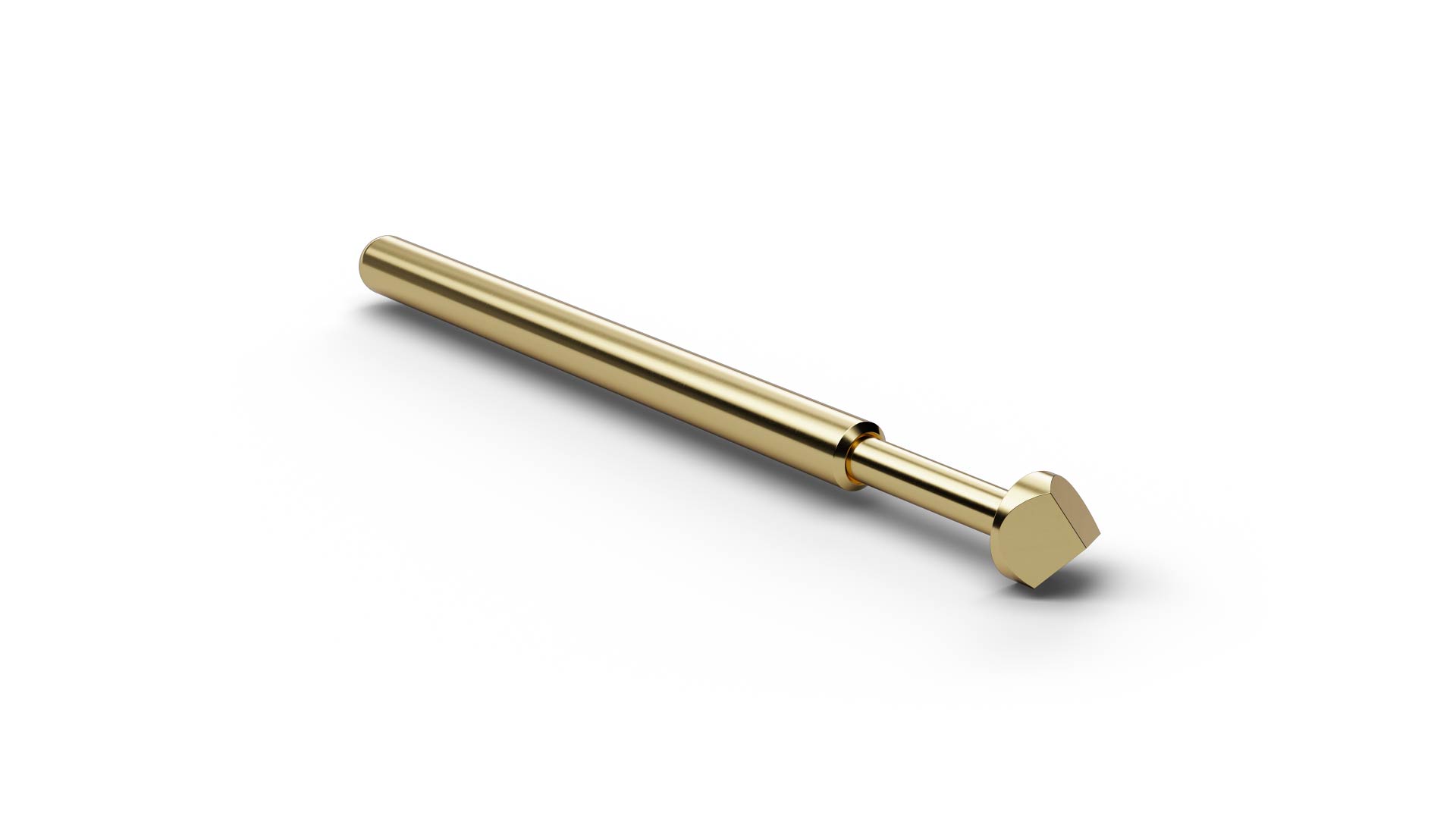

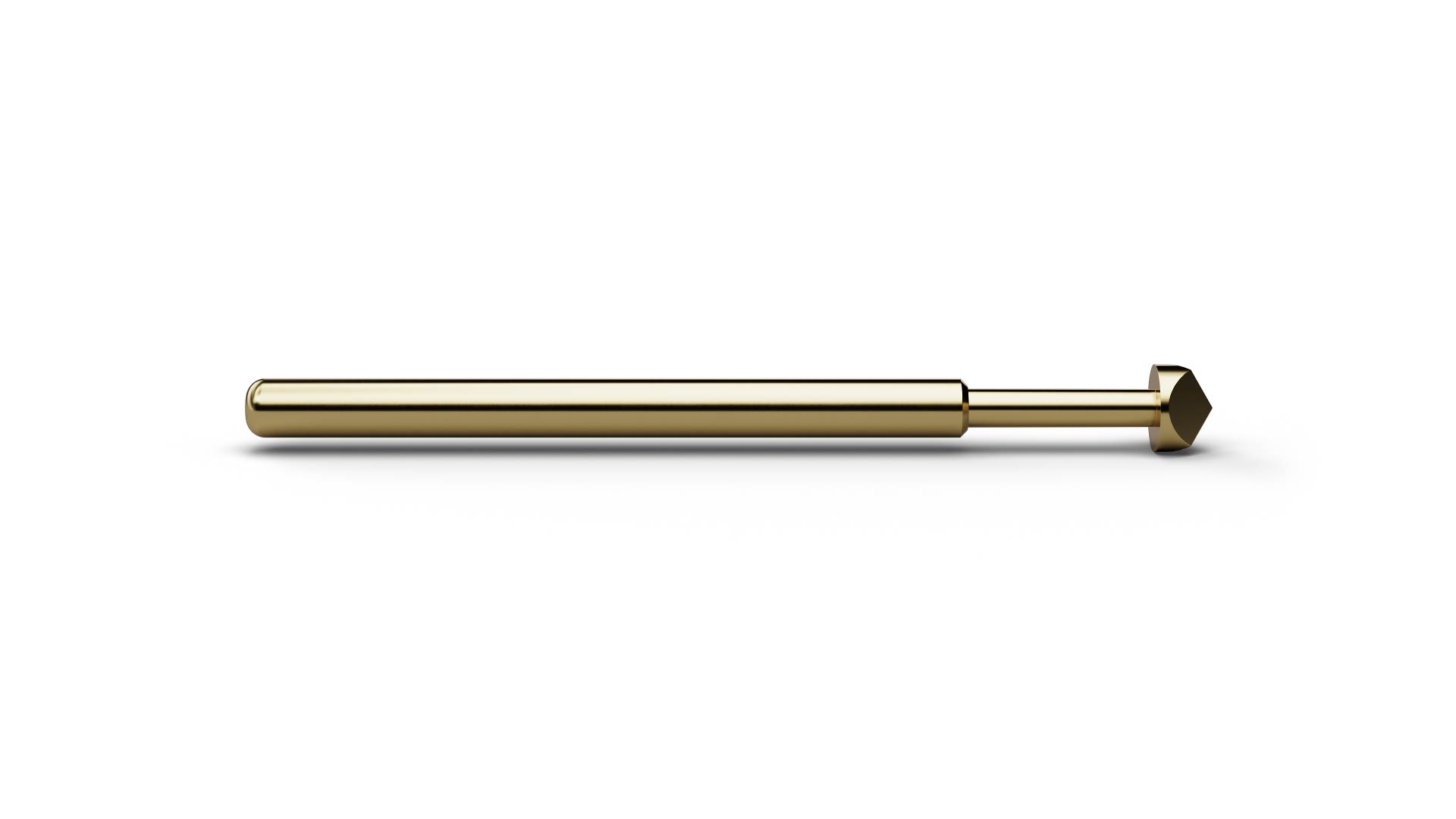

As a Basic Contact Probe, F56315B300G180 (item number 1009238) establishes a spring-loaded electrical connection to the test point. With tip style 15 (Triangular 45° stepped), F56315B300G180 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F56315B300G180 combines a pitch of 3 mm / 118 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 3 mm. F56315B300G180 operates with 180 cN spring force and 4.3 mm nominal travel. The electrical rating of F56315B300G180 combines 6 A continuous current with 100 mΩ typical contact resistance. The plunger in F56315B300G180 is made of beryllium copper and is gold-plated.
