Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F723 |
| Pas (mm/mil) | 4,00 / 157 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 17.1 |
| Hauteur hors tout (mm) | 7.1 |
| Diamètre du style de pointe (mm) | 2.3 |
| Diamètre du fût (mm) | 2.65 |
| Diamètre du collet (mm) | 3.2 |
| Diamètre de la bague de serrage (mm) | 3.2 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 02 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 40 |
| Force du ressort (cN) | 80 |
| Course nominale (mm) | 2.8 |
| Course maximale (mm) | 3.5 |
| Précision de pointage +/- (mm) | 0.1 |
| Filetage | M2 |
| Taille d’outil (mm) | 3,0 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 10 |
| Résistance de contact typique (mΩ) | 15 |
Graphiques
Beschreibung des Produkts

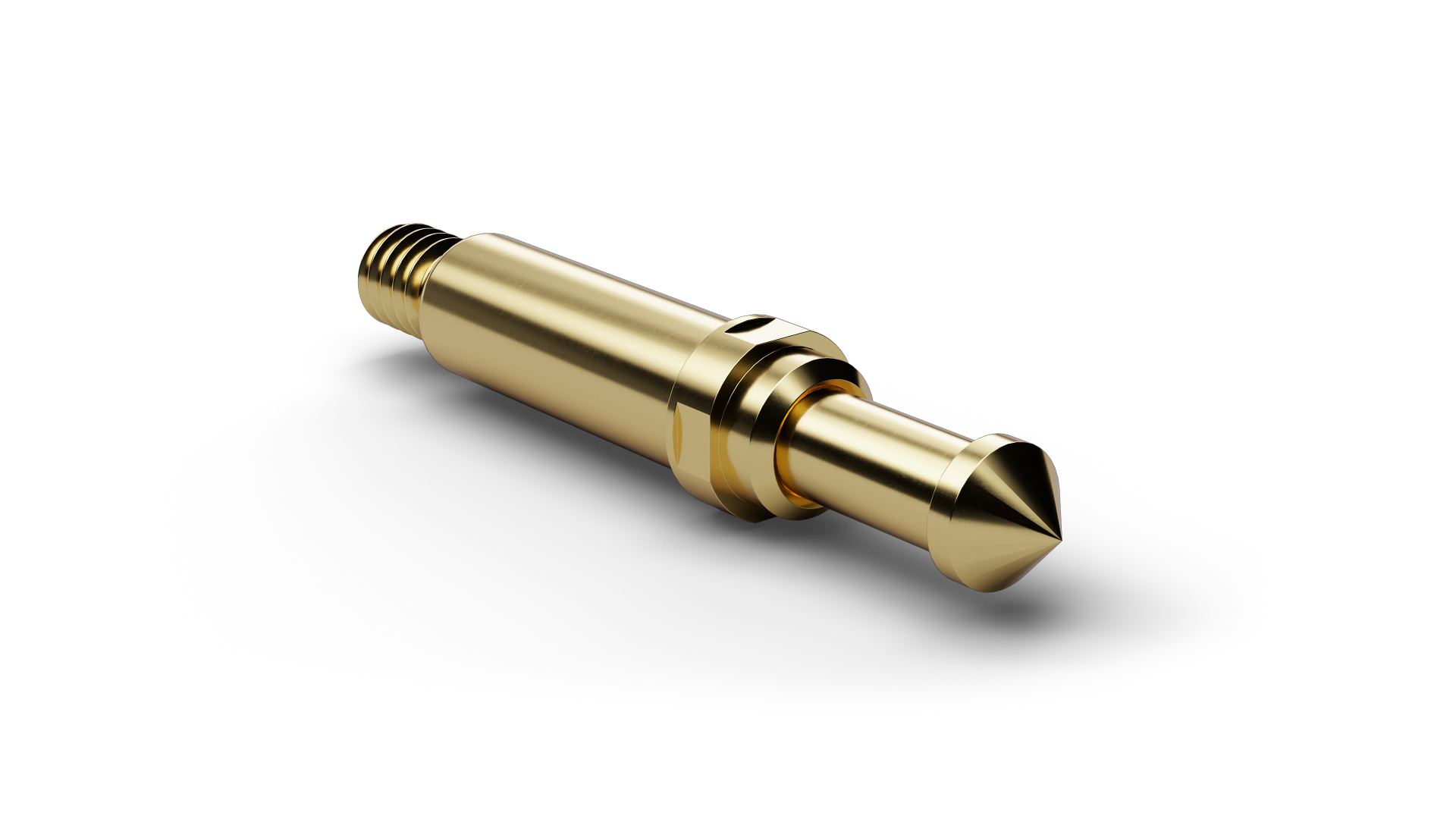

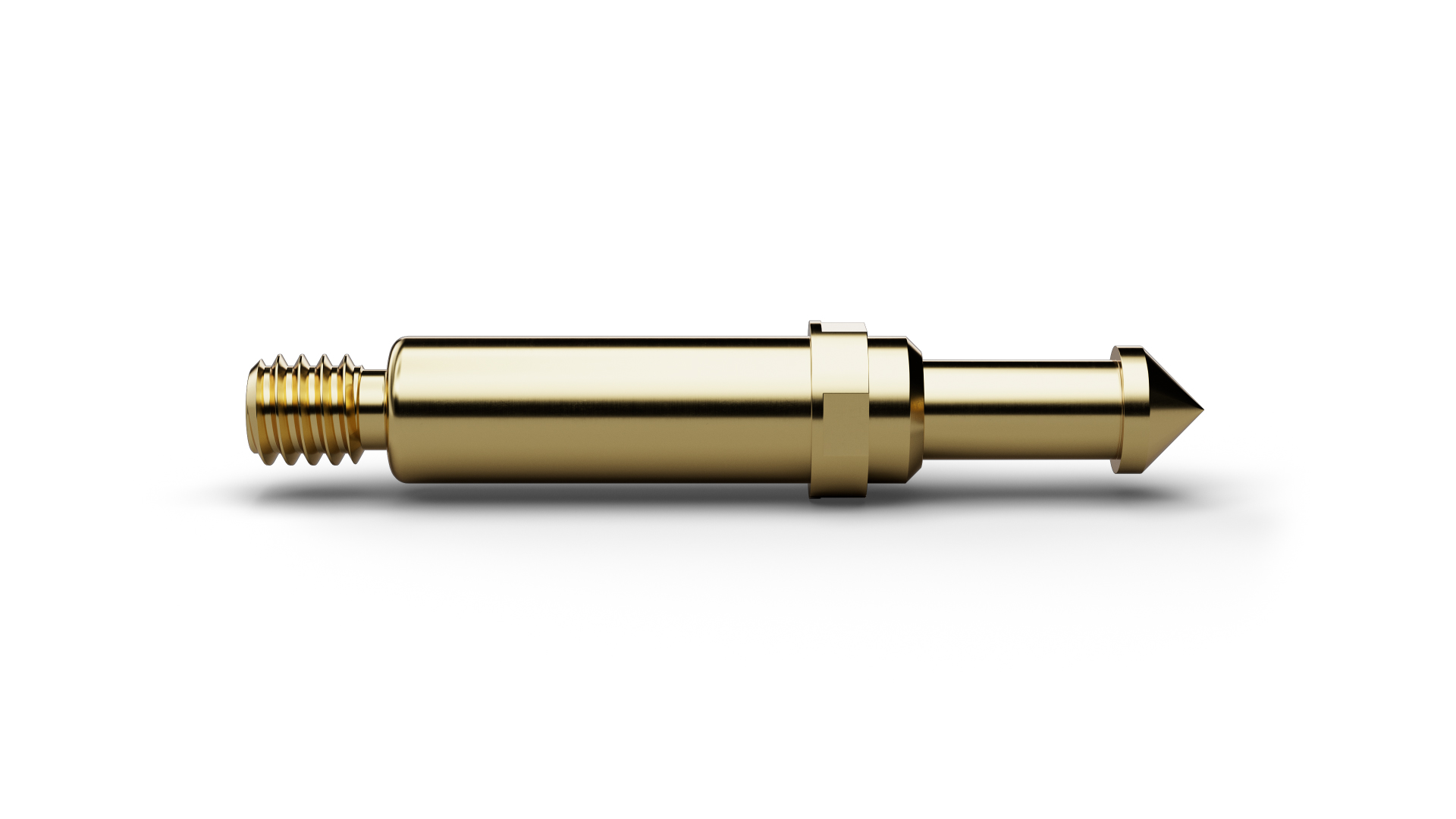

The Basic Threaded Probe F72302B230G080 (item number 1010103) is a spring-loaded Contact Probe with threaded installation. The threaded mounting of F72302B230G080 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F72302B230G080 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F72302B230G080 uses an M2 thread. On F72302B230G080, a pitch of 4 mm / 157 mil is combined with 80 cN spring force and 2.8 mm nominal travel. F72302B230G080 is rated for 10 A continuous current with a typical contact resistance of 15 mΩ.
