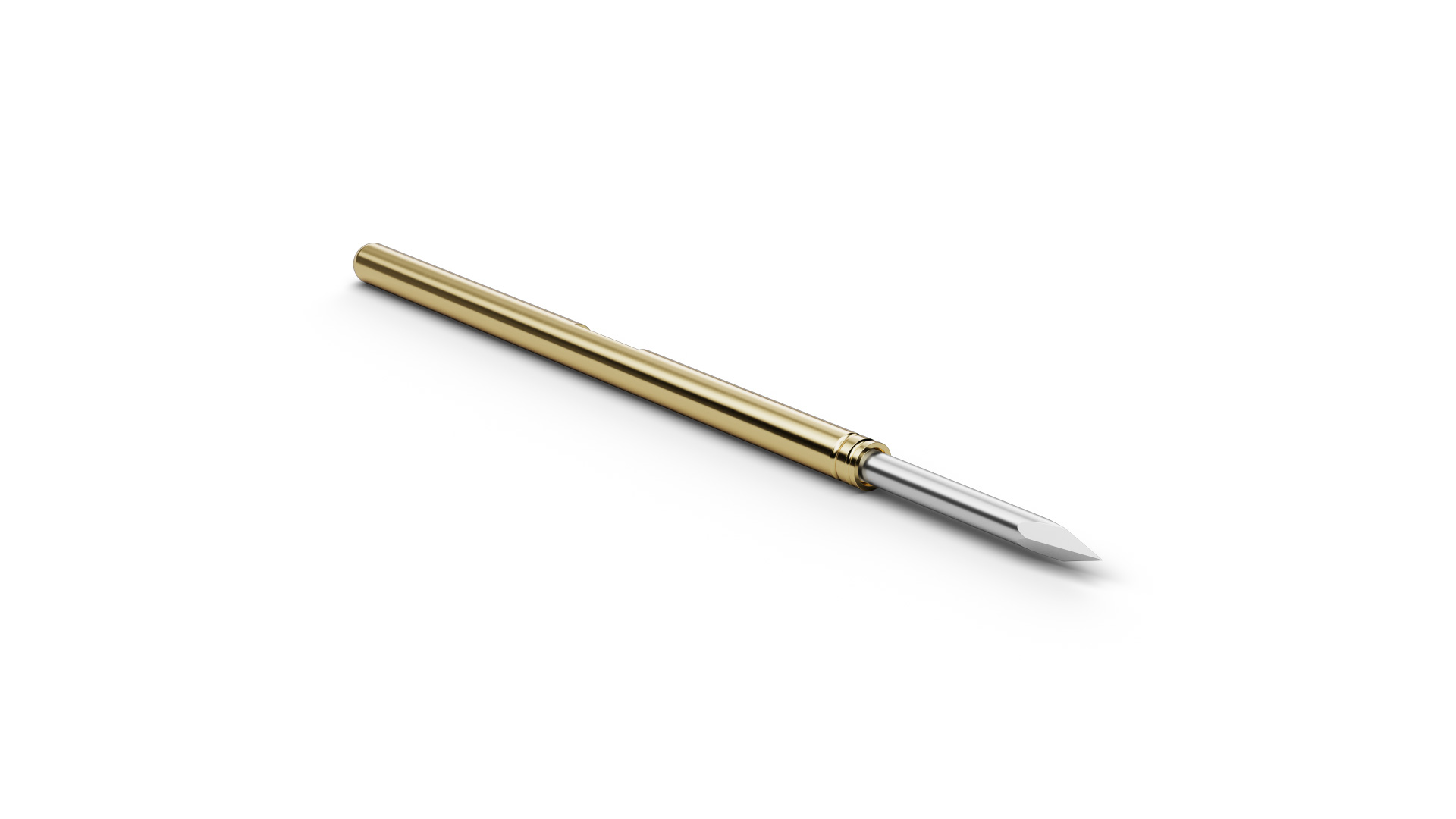

F10033S090P200HP (item number 1010205) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F10033S090P200HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10033S090P200HP combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F10033S090P200HP, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F10033S090P200HP combines 5 A continuous current with 40 mΩ typical contact resistance. The combination of P-Coating and HP spring preload makes F10033S090P200HP a version for contact points where residues or hard surface layers can make electrical contacting more demanding.
