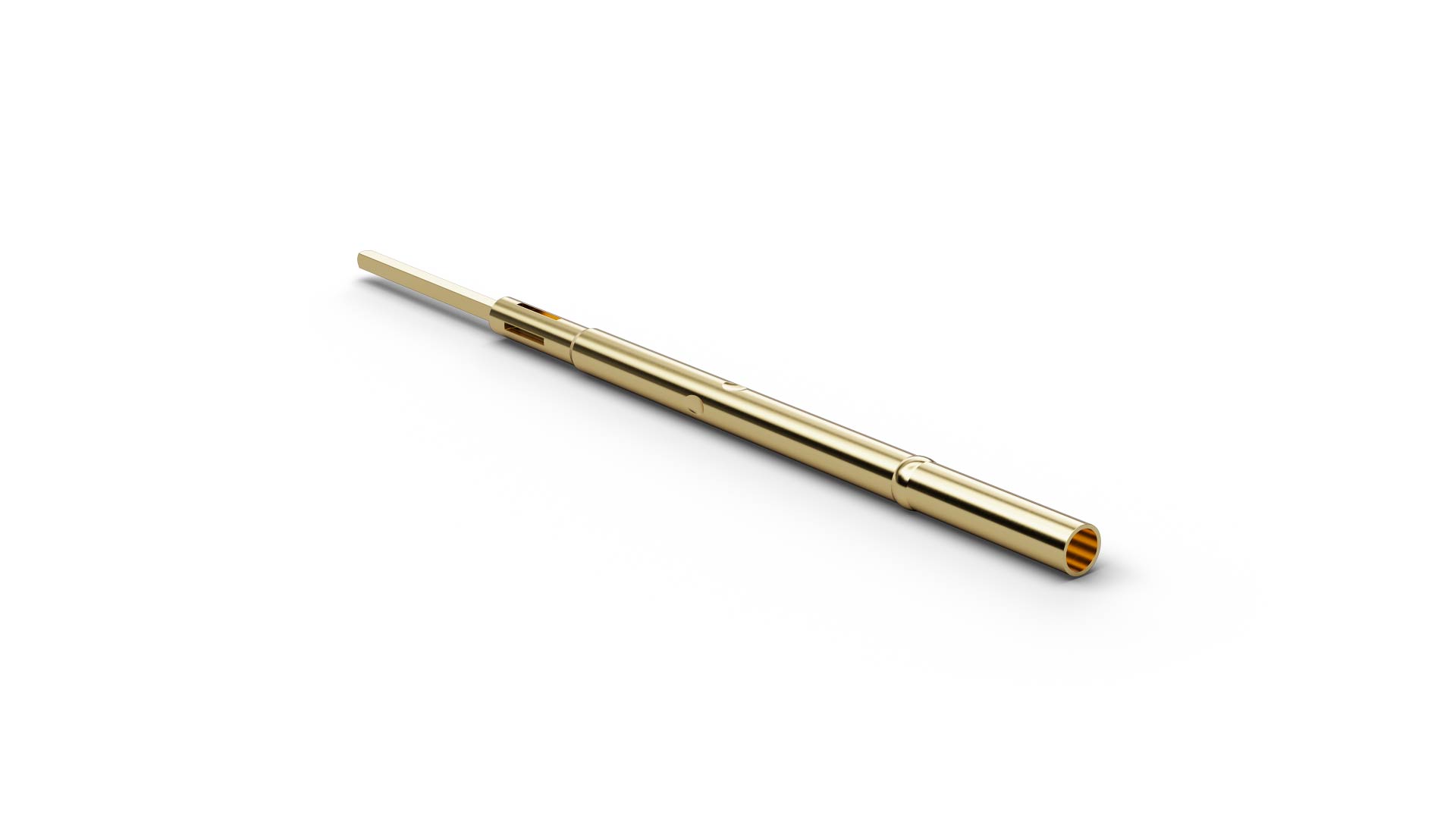

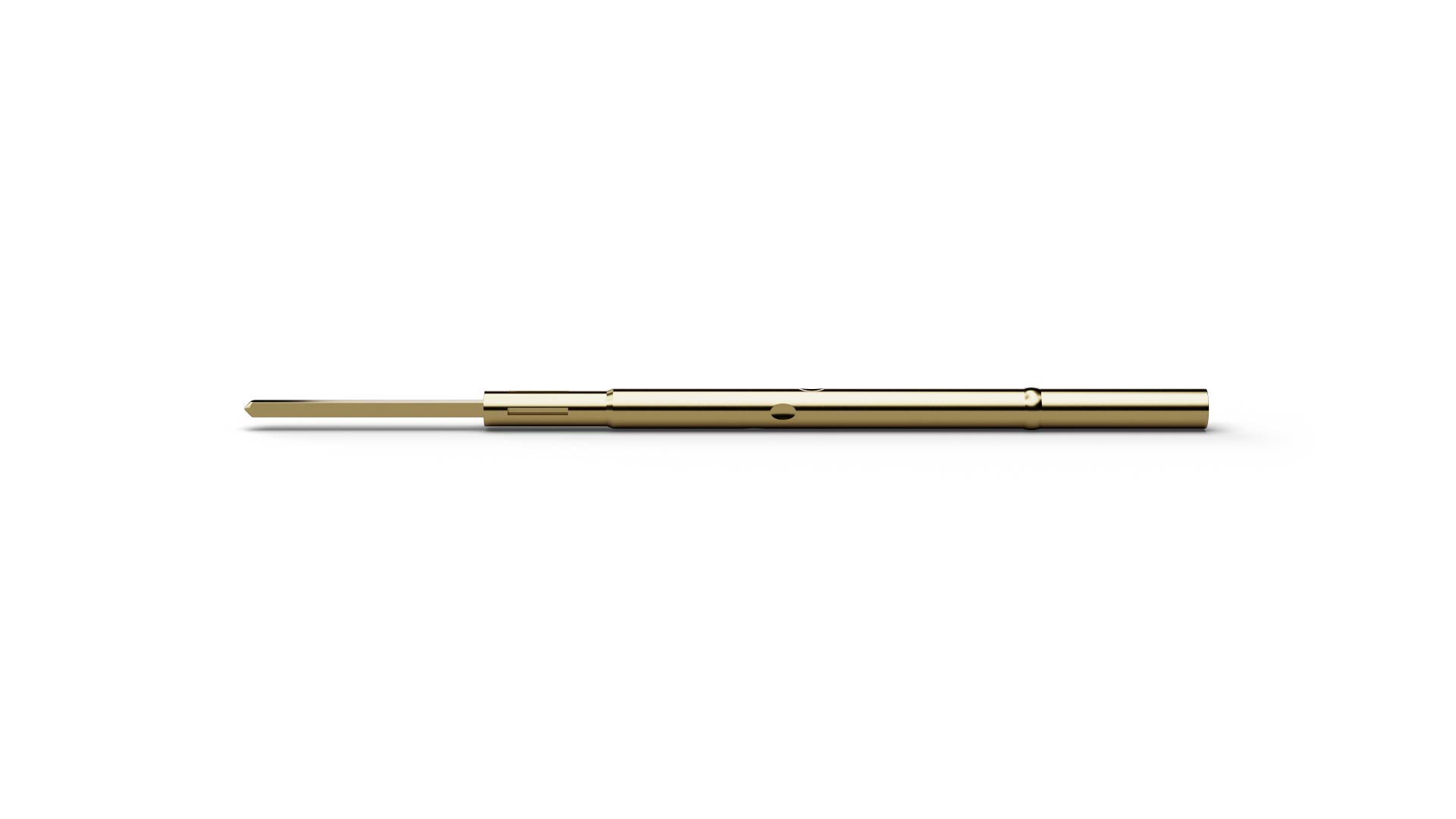

The receptacle H100WW10-7.6 (item number 1010822) is designed for the compatible Basic Contact Probe in the test fixture. As a Receptacle, H100WW10-7.6 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data for H100WW10-7.6 includes pitch 2.54 mm / 100 mil, outside diameter 1.68 mm, length 40 mm, connection type wire-wrap connection. When selecting H100WW10-7.6, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
