Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | 1860S |
| Pas (mm/mil) | 6,50 / 256 |
| Température | -45°C...+200°C |

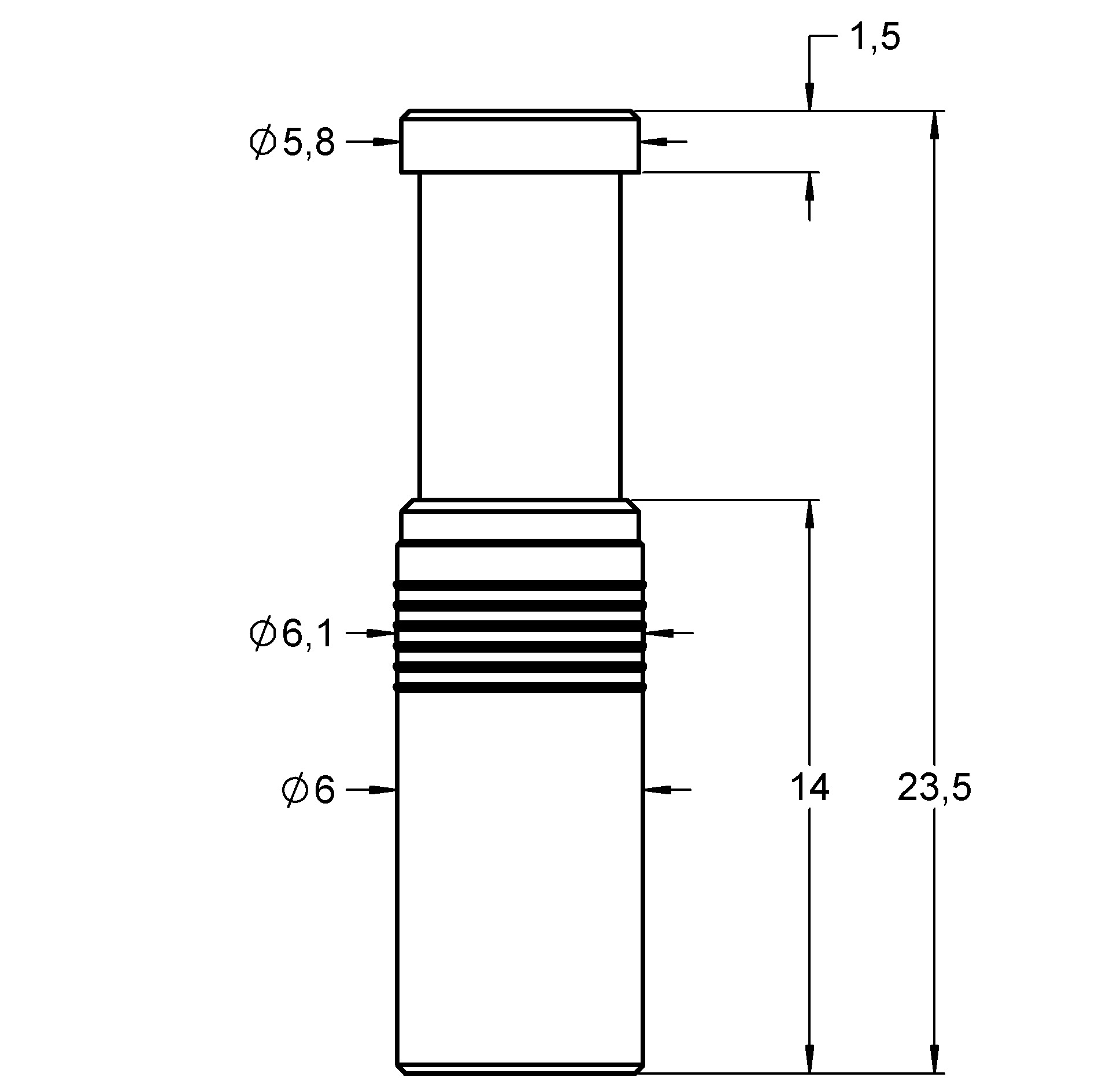

| Dimensions | |
|---|---|
| Longueur totale (mm) | 23.5 |
| Hauteur hors tout (mm) | 9.5 |
| Diamètre du style de pointe (mm) | 5.8 |
| Diamètre du fût (mm) | 6 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 17 |
| Matériau du piston | Brass |
| Revêtement du piston | Uncoated |
| Matériau du fût | Brass |
| Revêtement du fût | Uncoated |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 200 |
| Force du ressort (cN) | 400 |
| Course nominale (mm) | 6 |
| Course maximale (mm) | 7.5 |
Graphiques
Beschreibung des Produkts
F78017M580U400 (item number 1010873) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 17 (Flat stepped), F78017M580U400 combines ICT/FCT use with a geometry intended for solder pads and contact pins. The design combines a pitch of 6.5 mm / 256 mil with tip style 17 (Flat stepped) and a tip diameter of 5.8 mm. Spring force is 400 cN at a nominal travel of 6 mm. The plunger in F78017M580U400 is made of brass and is uncoated.
