Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F588 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 39 |
| Hauteur hors tout (mm) | 14.1 |
| Diamètre du style de pointe (mm) | 0.9 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 21 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 80 |
| Force du ressort (cN) | 300 |
| Course nominale (mm) | 9.3 |
| Course maximale (mm) | 11.7 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 30 |
Graphiques
Beschreibung des Produkts

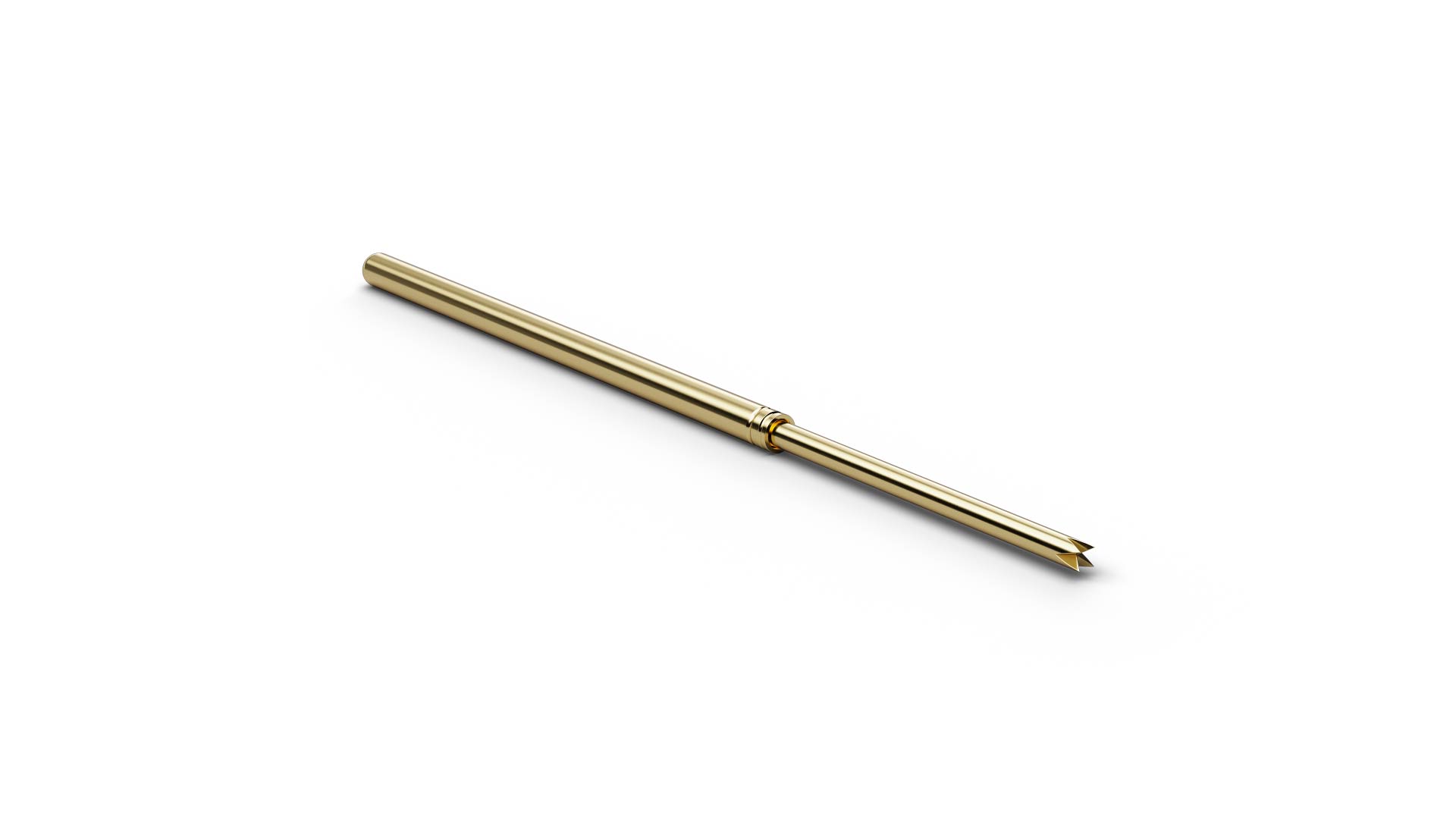

The Basic Contact Probe F58821S090L300 (item number 1012220) is a spring-loaded probe for temporary electrical contact with test points. With tip style 21 (4-point crown (self-cleaning)), F58821S090L300 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F58821S090L300 combines a pitch of 2.54 mm / 100 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.9 mm. For F58821S090L300, spring force is 300 cN at a nominal travel of 9.3 mm. The electrical rating of F58821S090L300 combines 5 A continuous current with 30 mΩ typical contact resistance. The plunger in F58821S090L300 is made of steel and uses Longtime Gold plating.
