Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | HCF340 |
| Pas (mm/mil) | 4,00 / 157 |
| Température | -45°C...+200°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 50 |
| Hauteur hors tout (mm) | 22.2 |
| Diamètre du style de pointe (mm) | 2.5 |
| Diamètre du fût (mm) | 2.4 |
| Diamètre du collet (mm) | 2.6 |
| Diamètre de la bague de serrage (mm) | 2.6 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 09 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Uncoated |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 80 |
| Force du ressort (cN) | 260 |
| Course nominale (mm) | 6.4 |
| Course maximale (mm) | 8 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 16 |
| Résistance de contact typique (mΩ) | 10 |
Graphiques
Beschreibung des Produkts

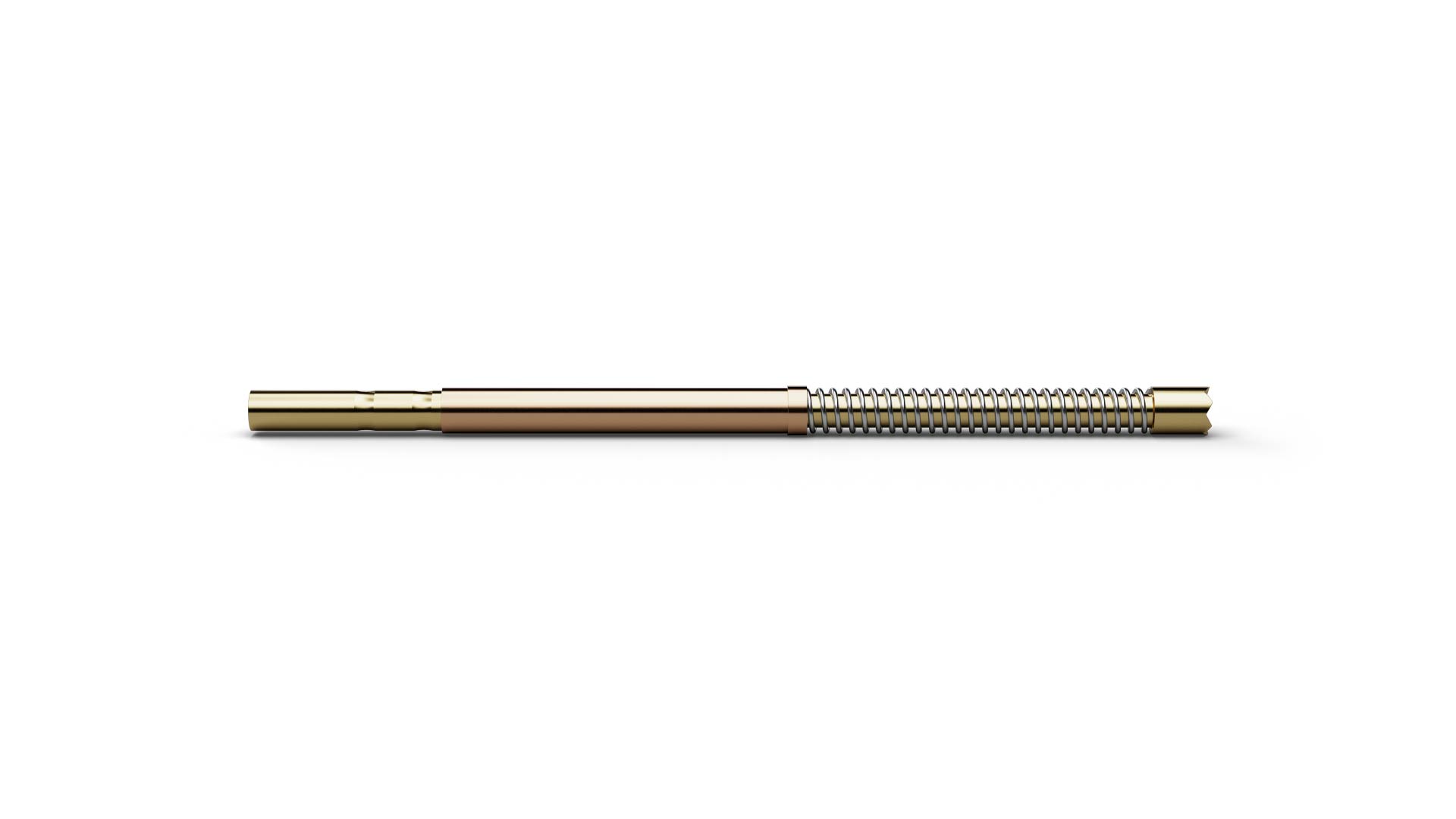

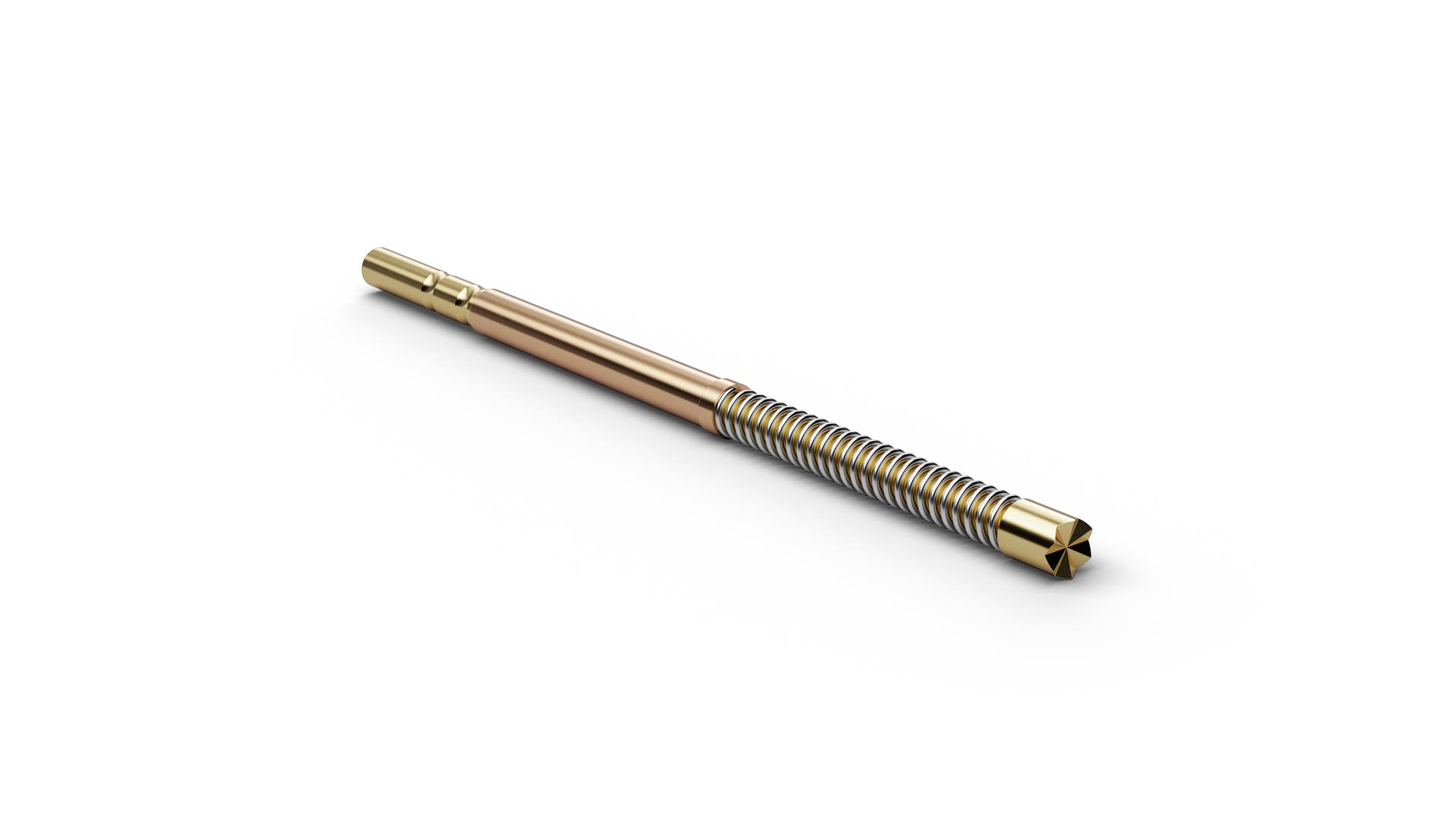

The High Current Probe HCF34009S250L260 (item number 1012273) is designed for electrical test and contacting tasks with elevated current loads. HCF34009S250L260 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF34009S250L260, current capacity, low contact resistance and defined contact force are key to limiting electrical losses and unwanted heating. The design combines a pitch of 4 mm / 157 mil with tip style 09 (6-point crown stepped) and a tip diameter of 2.5 mm. HCF34009S250L260 operates with 260 cN spring force and 6.4 mm nominal travel. The continuous-current rating of HCF34009S250L260 is 16 A.
