Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F086 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 36 |
| Hauteur hors tout (mm) | 4.7 |
| Diamètre du style de pointe (mm) | 0.9 |
| Diamètre du fût (mm) | 0.75 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 14 |
| Matériau du piston | Steel |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Gold |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 75 |
| Force du ressort (cN) | 130 |
| Course nominale (mm) | 2 |
| Course maximale (mm) | 3.7 |
| Précision de pointage +/- (mm) | 0.05 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 3 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

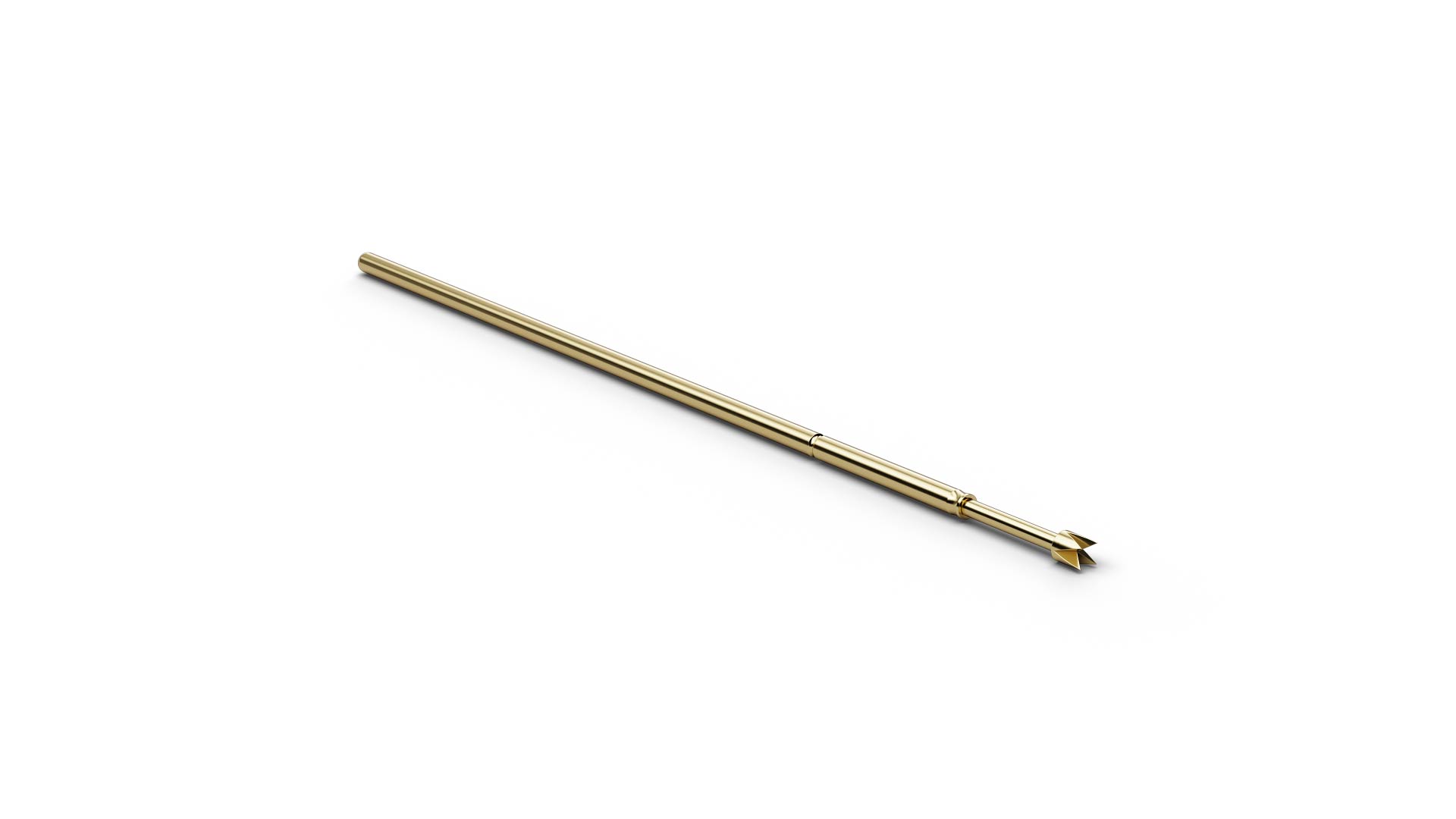

As a Basic Contact Probe, F08614B090G130 (item number 1012728) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F08614B090G130 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F08614B090G130 combines a pitch of 1.27 mm / 50 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 0.9 mm. F08614B090G130 operates with 130 cN spring force and 2 mm nominal travel. F08614B090G130 is rated for 3 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F08614B090G130 is made of steel and is gold-plated.
