Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F100 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33.3 |
| Hauteur hors tout (mm) | 8.5 |
| Diamètre du style de pointe (mm) | 1.5 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 14 |
| Matériau du piston | Steel |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 150 |
| Force du ressort (cN) | 300 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques
Beschreibung des Produkts

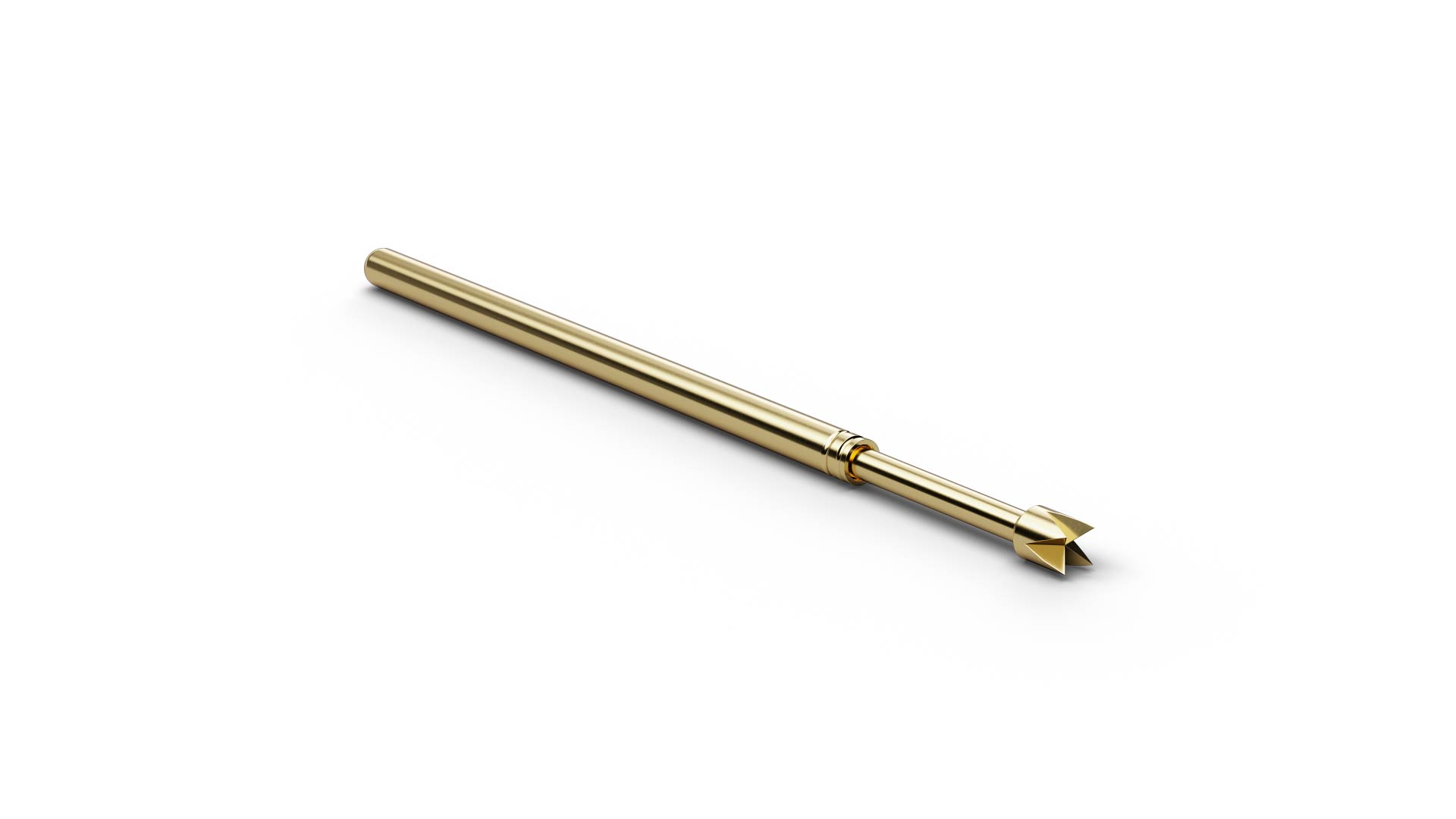

As a Basic Contact Probe, F10014S150L300 (item number 1013480) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F10014S150L300 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10014S150L300 combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. F10014S150L300 operates with 300 cN spring force and 4.3 mm nominal travel. F10014S150L300 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10014S150L300 is made of steel and uses Longtime Gold plating.
