Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F563 |
| Pas (mm/mil) | 3,00 / 118 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33 |
| Hauteur hors tout (mm) | 16 |
| Diamètre du style de pointe (mm) | 2.5 |
| Diamètre du fût (mm) | 2.03 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 06 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 130 |
| Force du ressort (cN) | 250 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.1 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 6 |
| Résistance de contact typique (mΩ) | 100 |
Graphiques
Beschreibung des Produkts

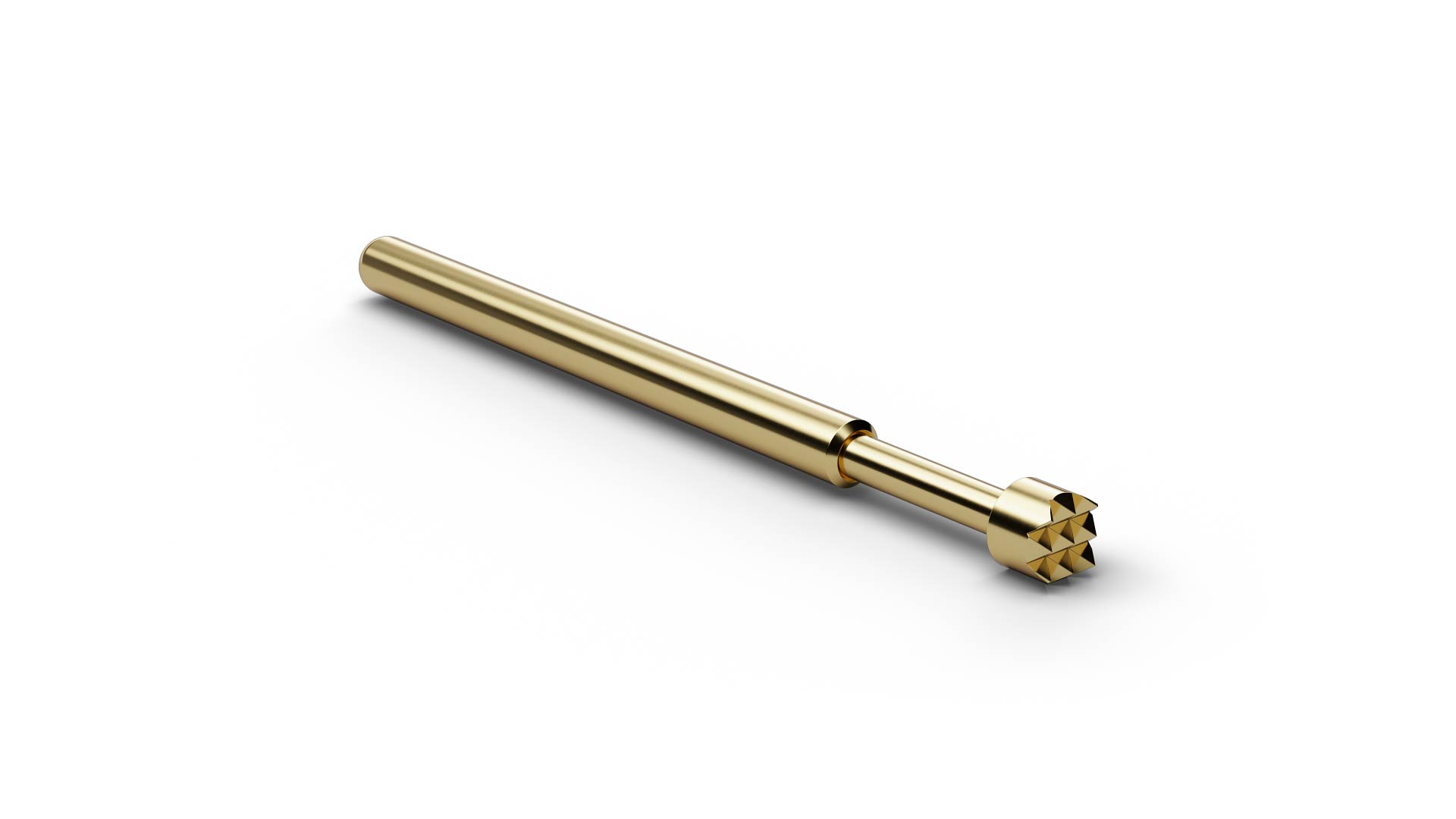

The Basic Contact Probe F56306B250G250 (item number 1013738) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F56306B250G250 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F56306B250G250 combines a pitch of 3 mm / 118 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.5 mm. For F56306B250G250, spring force is 250 cN at a nominal travel of 4.3 mm. F56306B250G250 is rated for 6 A continuous current with a typical contact resistance of 100 mΩ. The plunger in F56306B250G250 is made of beryllium copper and is gold-plated.
