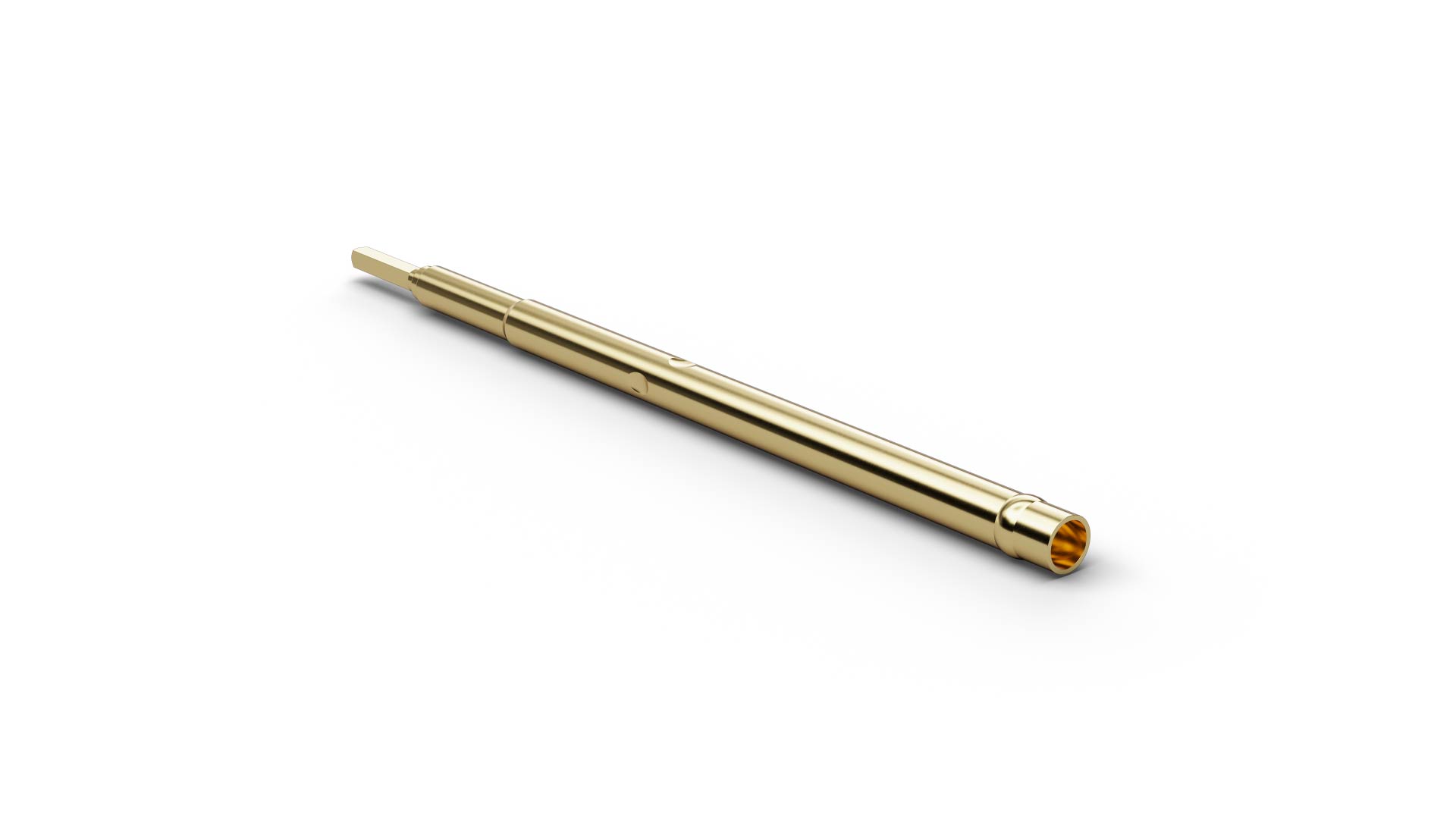

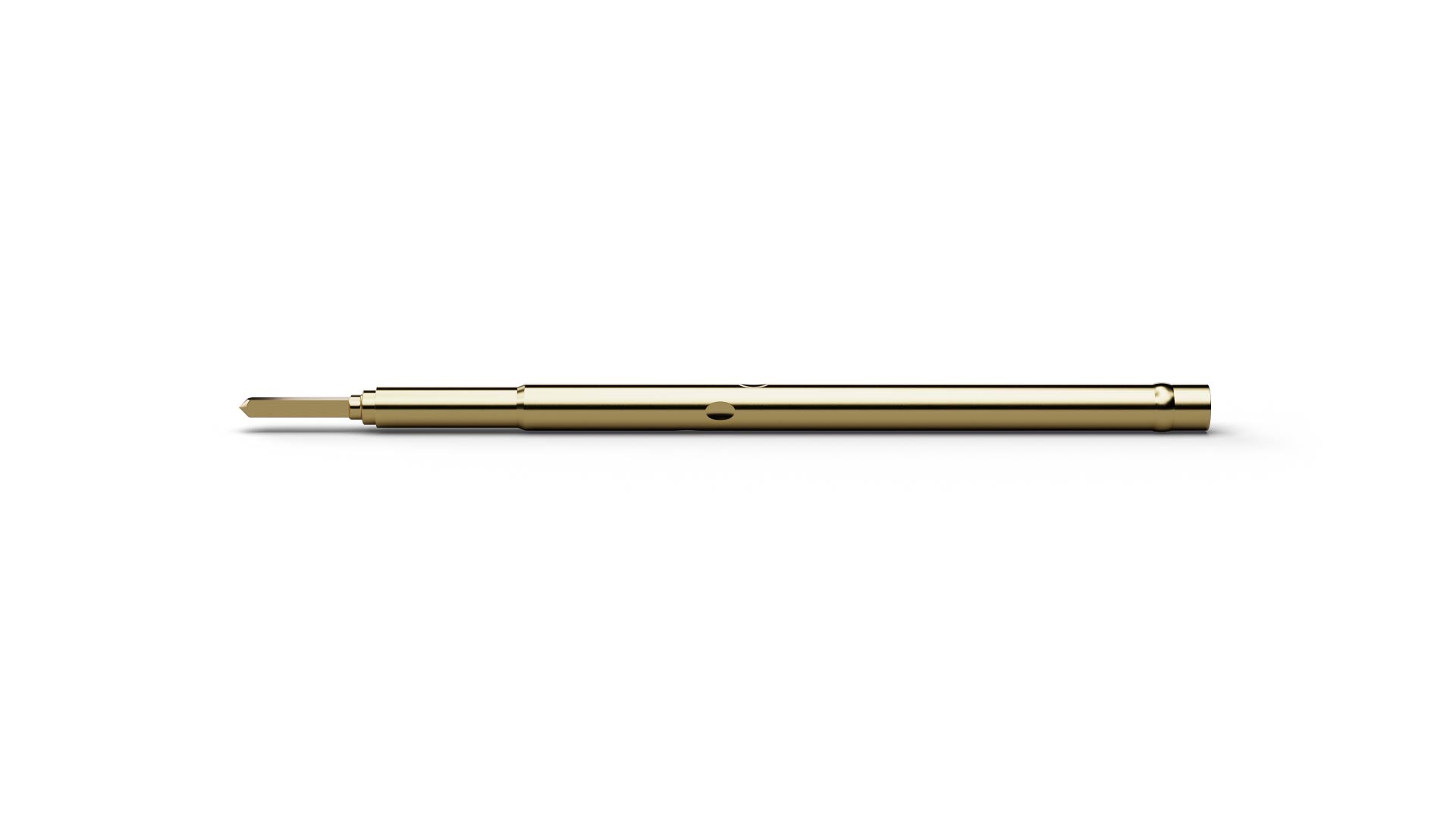

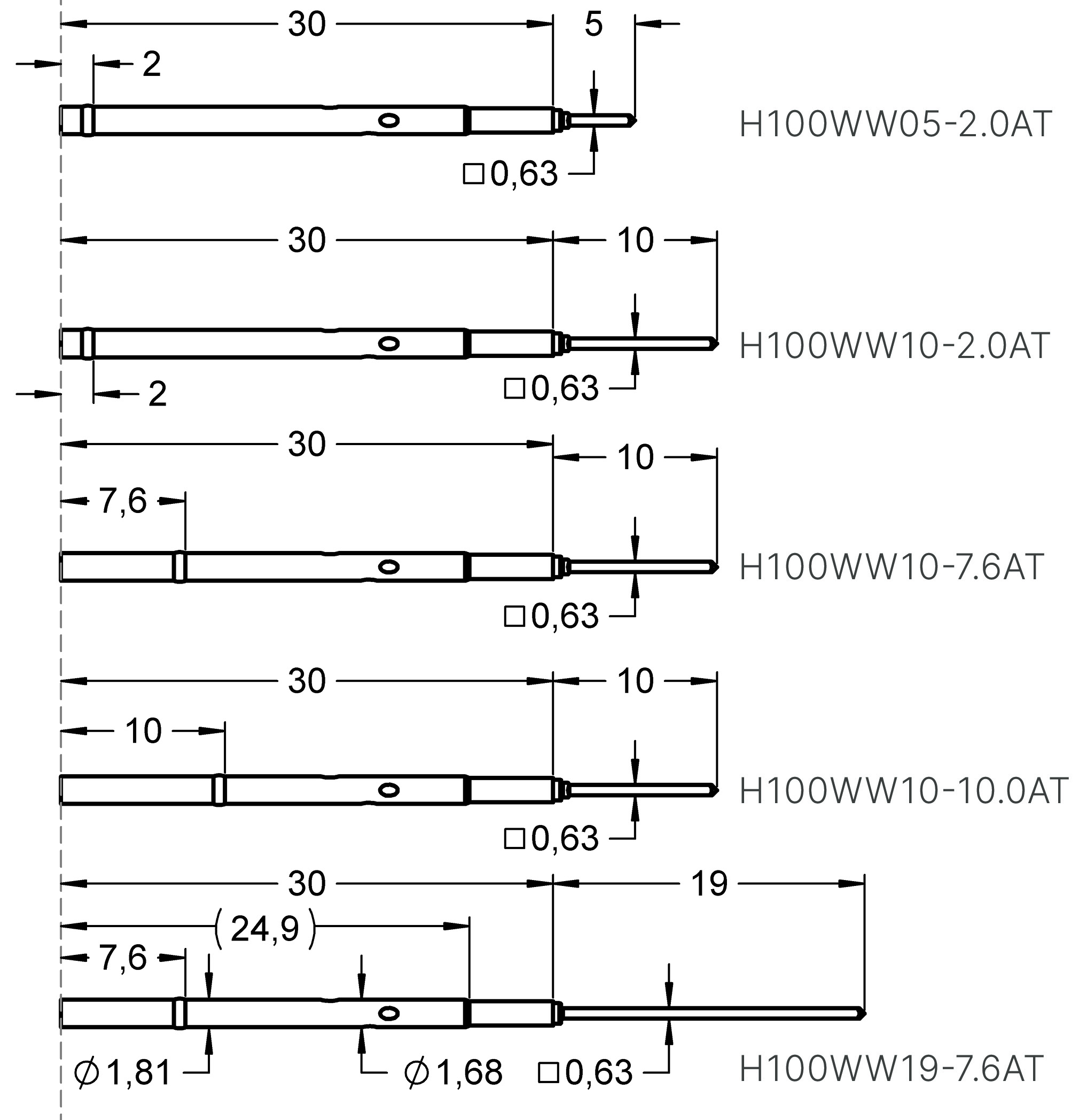

H100WW05-2.0AT (item number 1014852) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H100WW05-2.0AT guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data includes pitch 2.54 mm / 100 mil, outside diameter 1.68 mm, length 35 mm, connection type wire-wrap connection. When selecting H100WW05-2.0AT, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
