Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F722 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 11 |
| Hauteur hors tout (mm) | 4.3 |
| Diamètre du style de pointe (mm) | 1.8 |
| Diamètre du fût (mm) | 1.65 |
| Diamètre du collet (mm) | 2.3 |
| Diamètre de la bague de serrage (mm) | 2.3 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Beryllium copper |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 40 |
| Force du ressort (cN) | 100 |
| Course nominale (mm) | 1.5 |
| Course maximale (mm) | 2.2 |
| Précision de pointage +/- (mm) | 0.08 |
| Filetage | M1,6X0,2 |
| Taille d’outil (mm) | 1,7 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

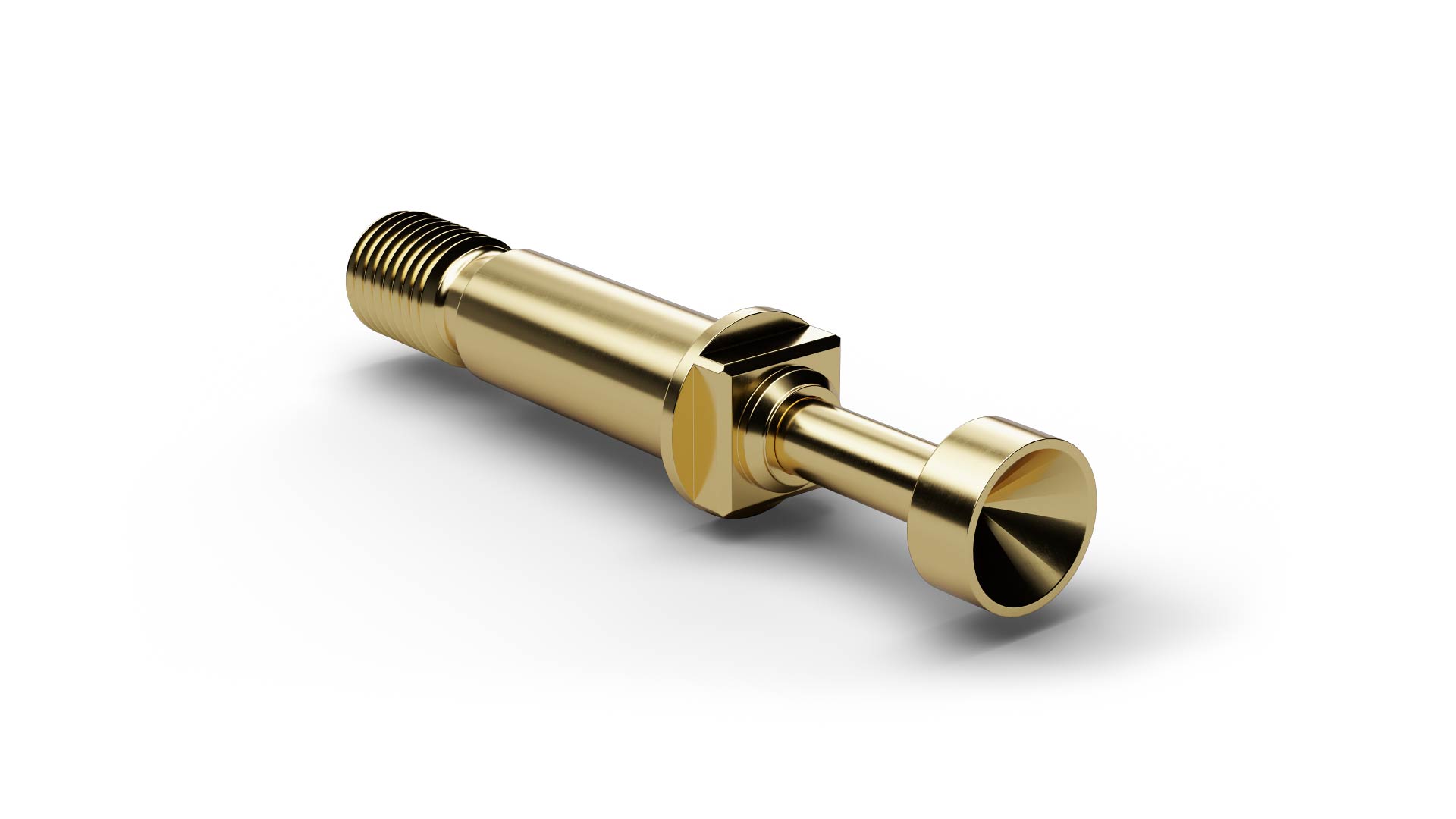

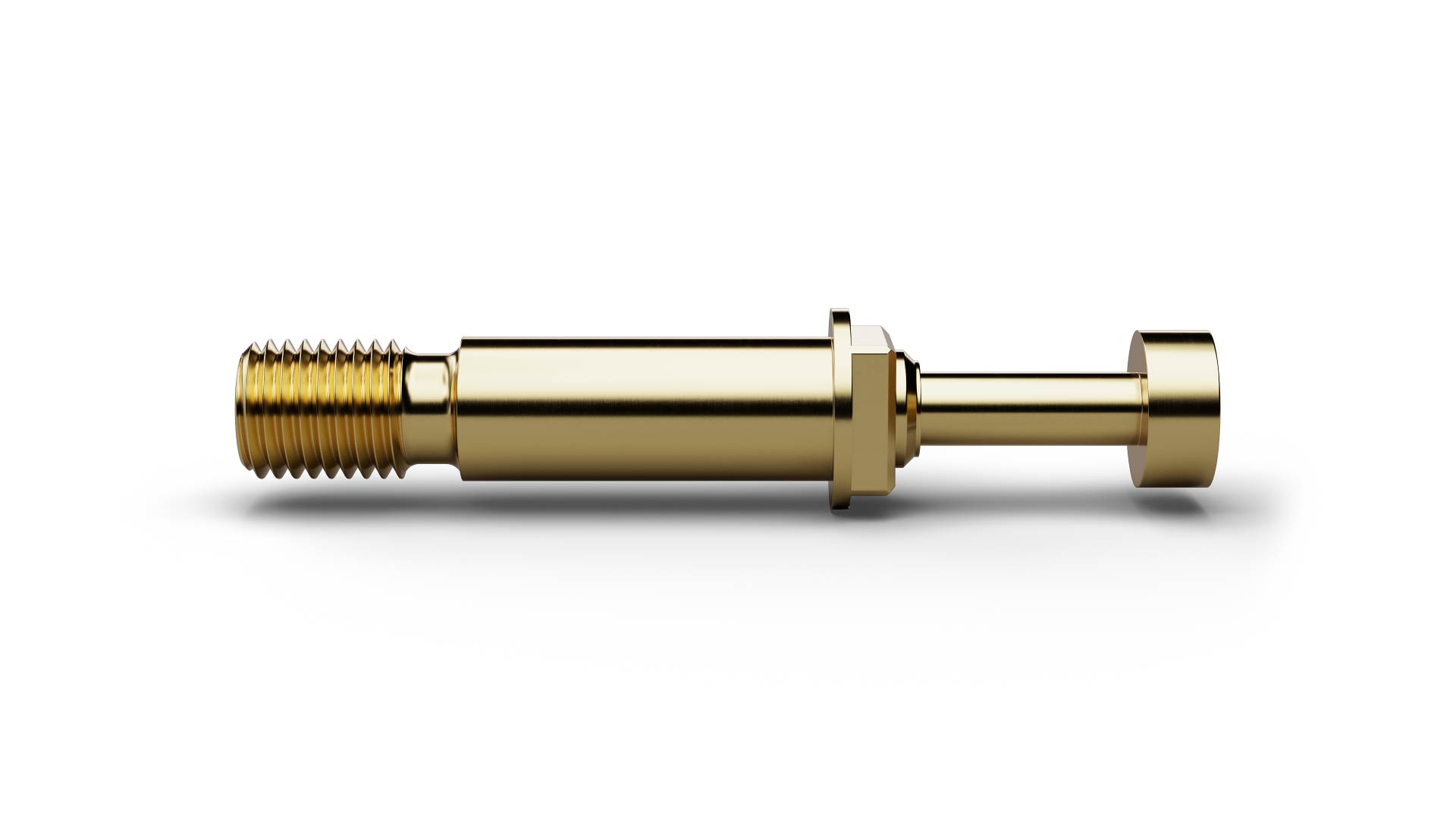

The Basic Threaded Probe F72205B180G100 (item number 1014956) is a spring-loaded Contact Probe with threaded installation. The threaded mounting of F72205B180G100 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F72205B180G100 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. On F72205B180G100, the M1.6 x 0.2 thread provides a defined mechanical seat and is useful where vibration or lateral forces can act on the probe. On F72205B180G100, a pitch of 2.54 mm / 100 mil is combined with 100 cN spring force and 1.5 mm nominal travel. The electrical rating of F72205B180G100 combines 5 A continuous current with 25 mΩ typical contact resistance.
