Données techniques
| Généralités | |
|---|---|
| Type/famille | P / P197 |
| Définition complémentaire | Spacer |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 3 |
| Diamètre extérieur (mm) | 2.6 |
| Matériaux et surfaces | |
|---|---|
| Matériau, Revêtement | Bronze, Uncoated |
Graphiques
Beschreibung des Produkts

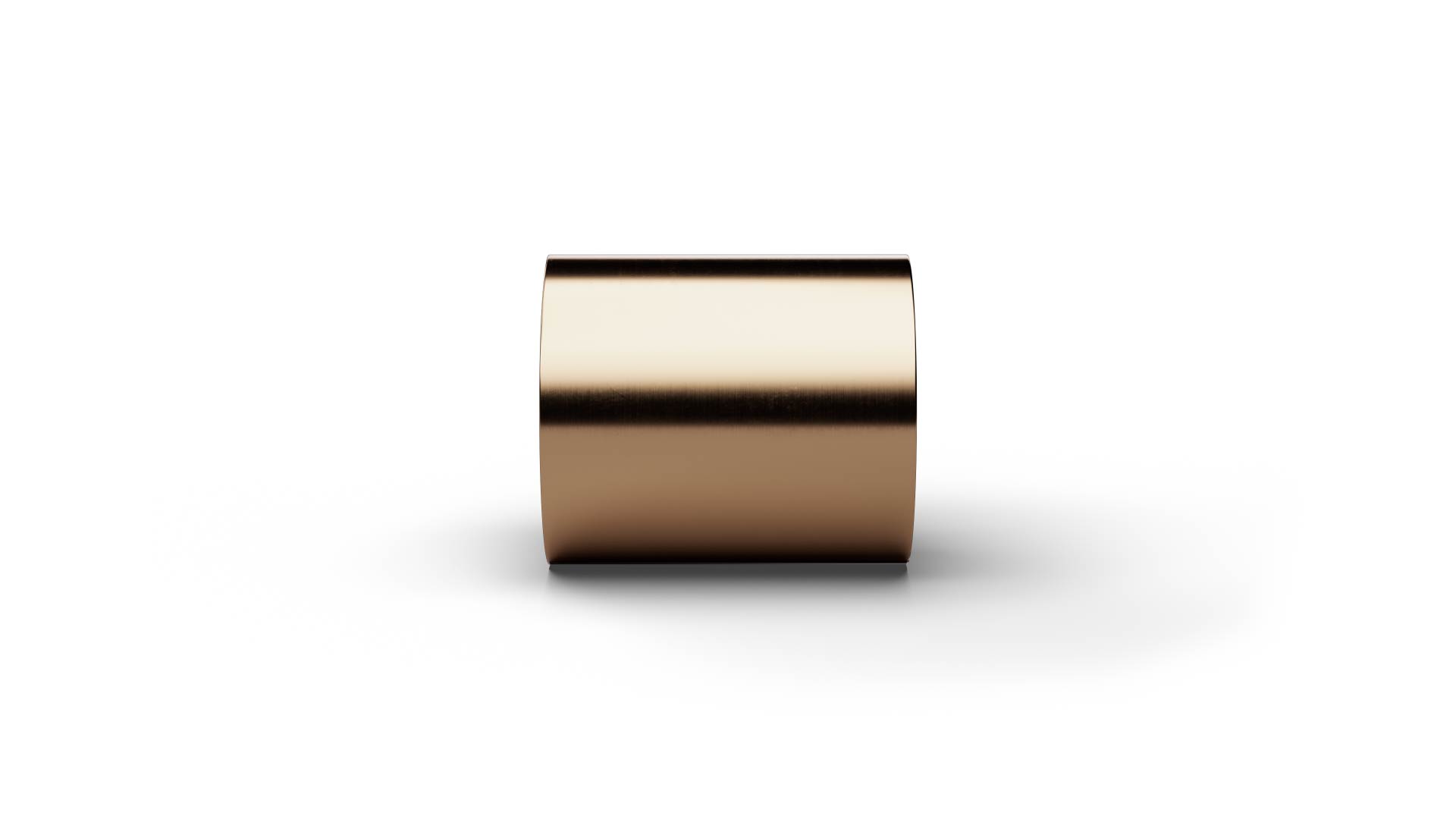

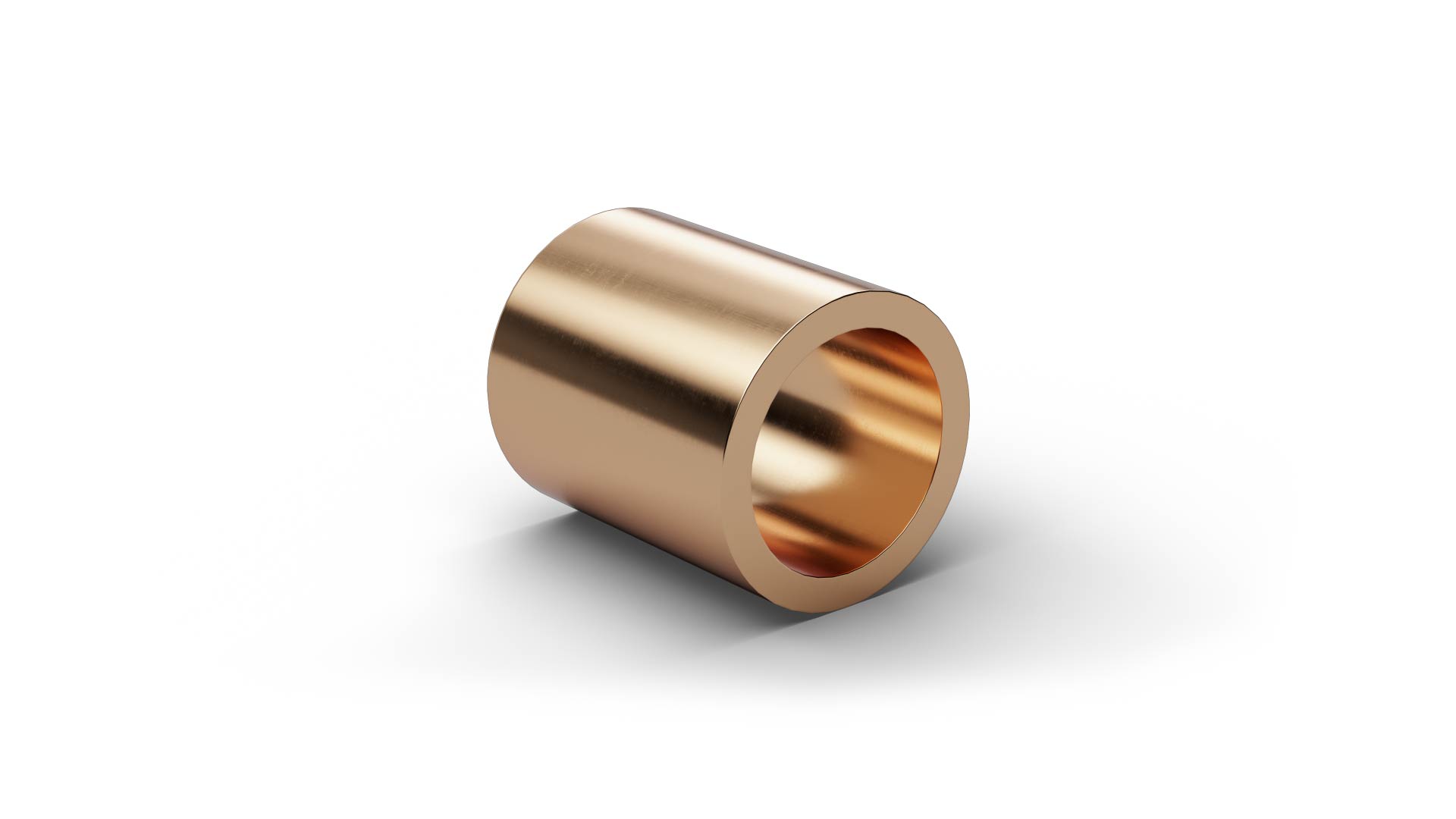

The receptacle DSP197L030 (item number 1015628) guides and positions the compatible Pogo Connector in a defined location within the fixture or contacting assembly. DSP197L030 is designed as a spacer Receptacle for the corresponding contacting arrangement. Key installation dimensions are outside diameter 2.6 mm, length 3 mm. The Receptacle DSP197L030 is made of bronze and is uncoated.
