Données techniques
| Généralités | |
|---|---|
| Type/famille | H879 |
| Pas (mm/mil) | 2,54 / 100 |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 13 |
| Diamètre de la bague de serrage (mm) | 2.35 |
| Diamètre extérieur (mm) | 2.15 |
| Hauteur du collet (mm) | 0.2 |
| Filetage interne | 2,0X0,25 |
| Matériaux et surfaces | |
|---|---|
| Matériau, Revêtement | Brass, Gold |
| Spécifications mécaniques | |
|---|---|
| Filetage interne | 2,0X0,25 |
Graphiques
Beschreibung des Produkts

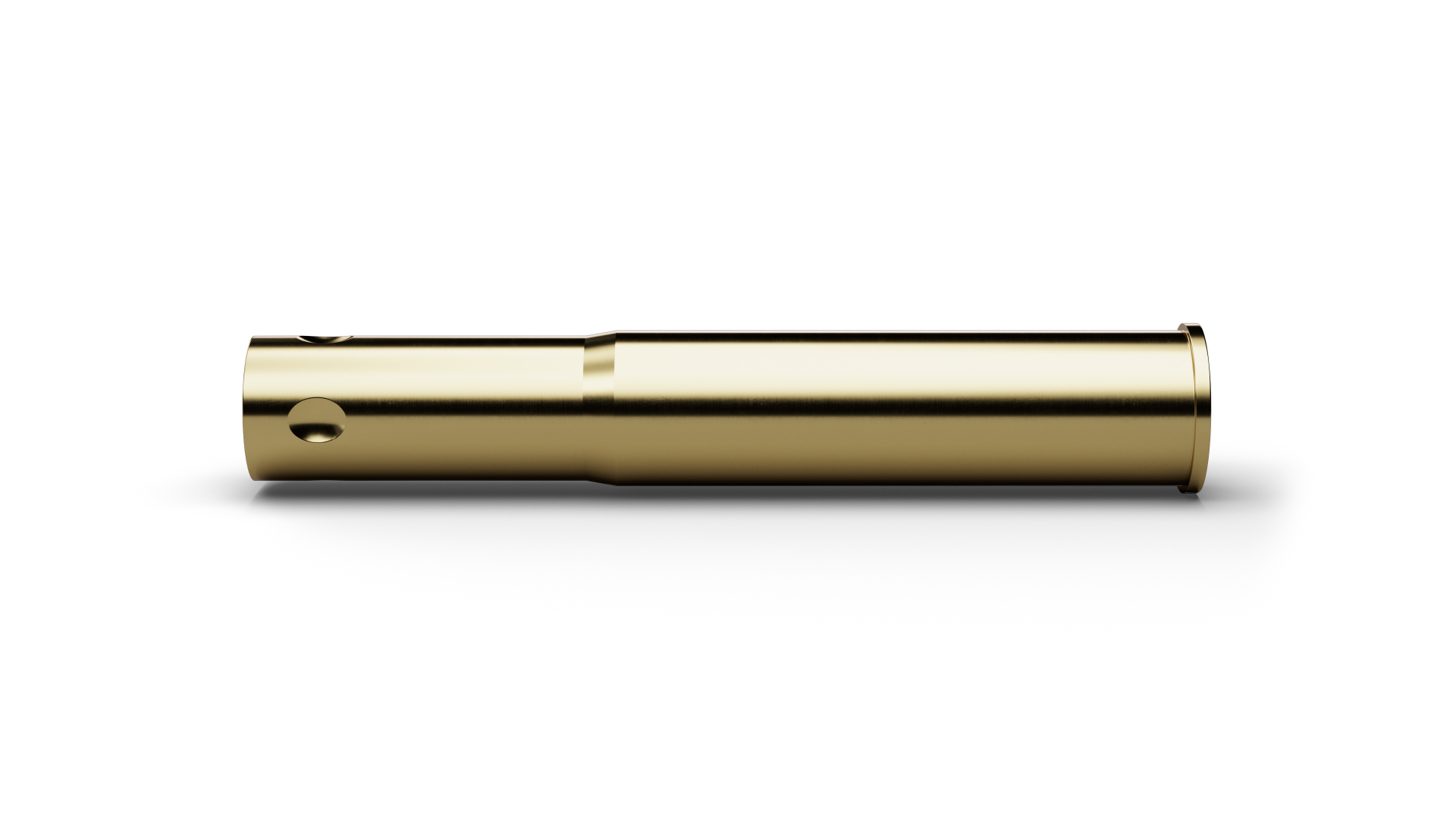

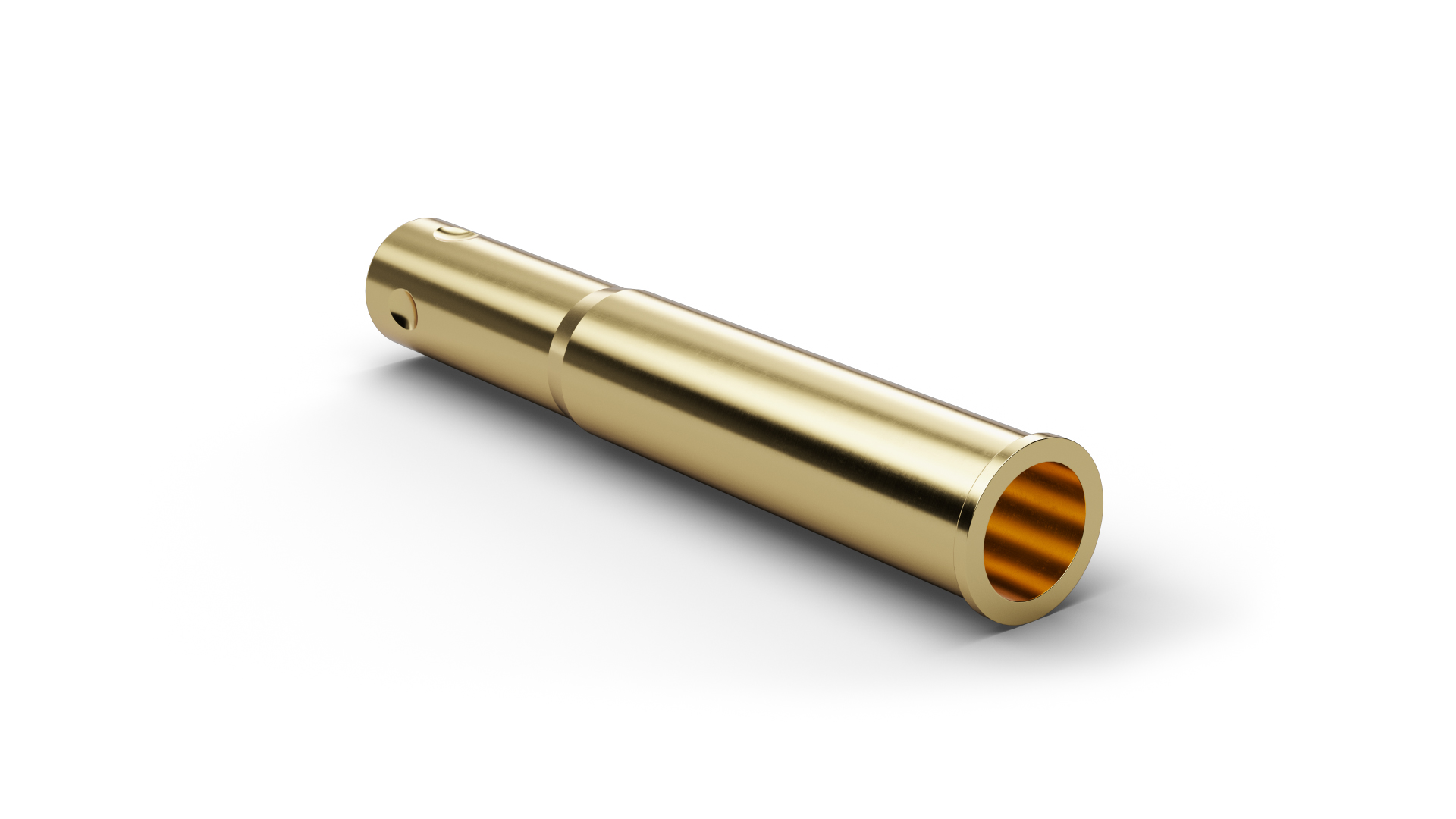

The receptacle H879 (item number 1017237) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H879 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H879, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
