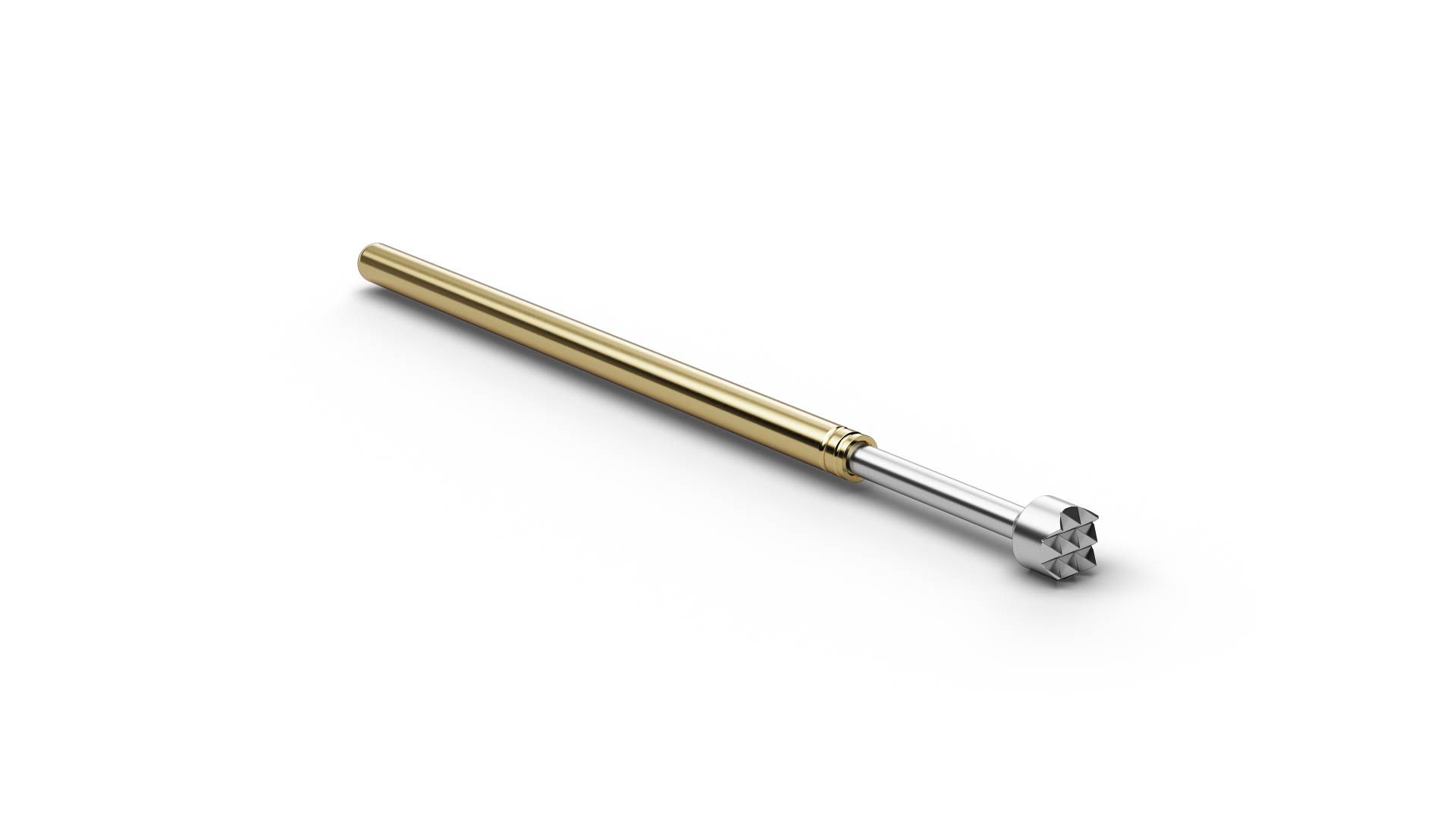

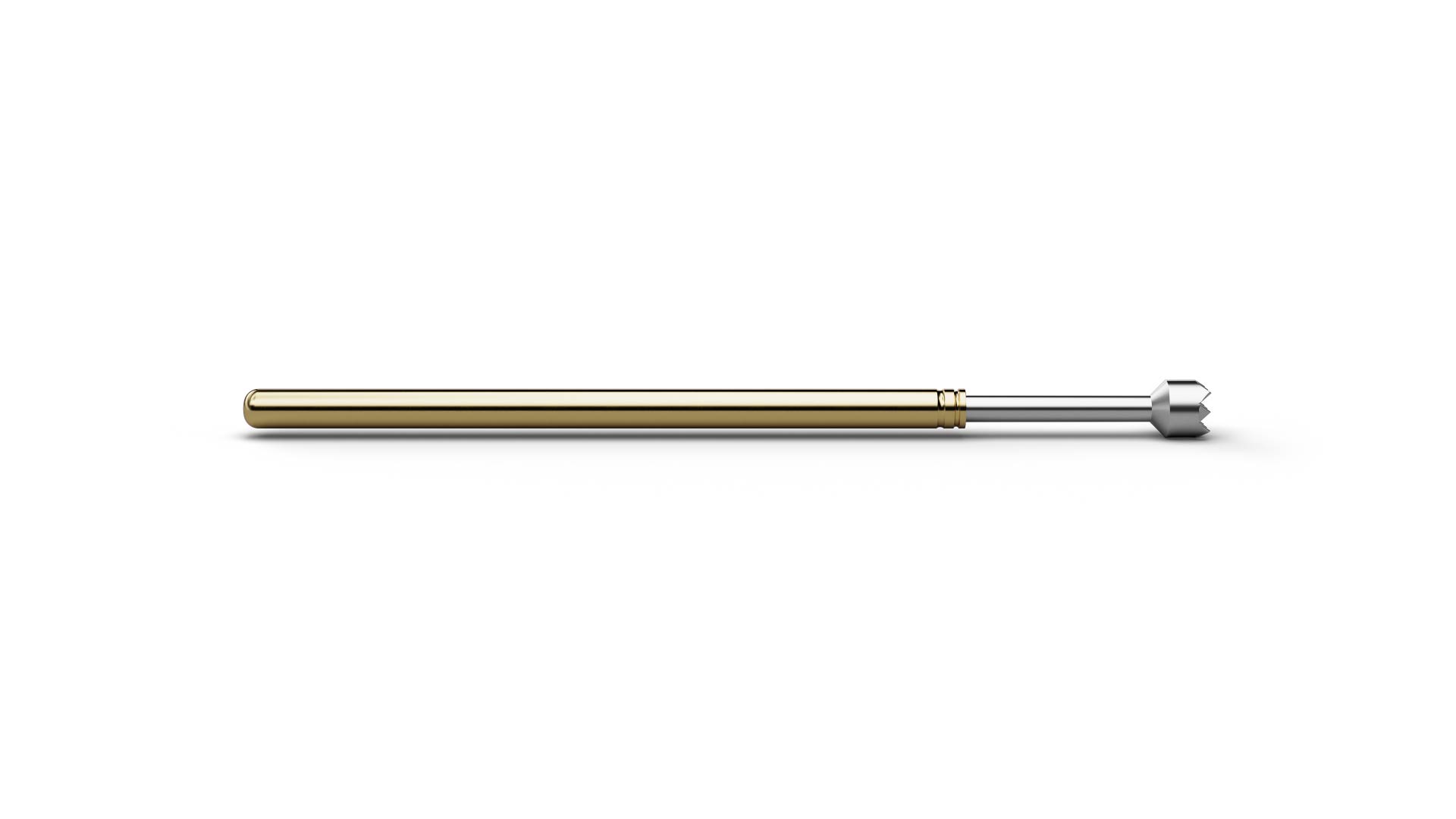

As a Basic Contact Probe, F10006B200P300HP (item number 1019980) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F10006B200P300HP combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F10006B200P300HP combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm. F10006B200P300HP operates with 300 cN spring force and 4.3 mm nominal travel. The electrical rating of F10006B200P300HP combines 5 A continuous current with 40 mΩ typical contact resistance. On F10006B200P300HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
