Données techniques
| Généralités | |
|---|---|
| Type/famille | H733 |
| Définition complémentaire | Knurl |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 27 |
| Diamètre de la bague de serrage (mm) | 3.2 |
| Diamètre extérieur (mm) | 3 |
| Diamètre moleté (mm) | 3.06 |
| Hauteur du collet (mm) | 0.2 |
| Matériaux et surfaces | |
|---|---|
| Matériau, Revêtement | Brass, Gold |
| Spécifications mécaniques | |
|---|---|
| Connexion | Solder Connection |
Graphiques
Beschreibung des Produkts

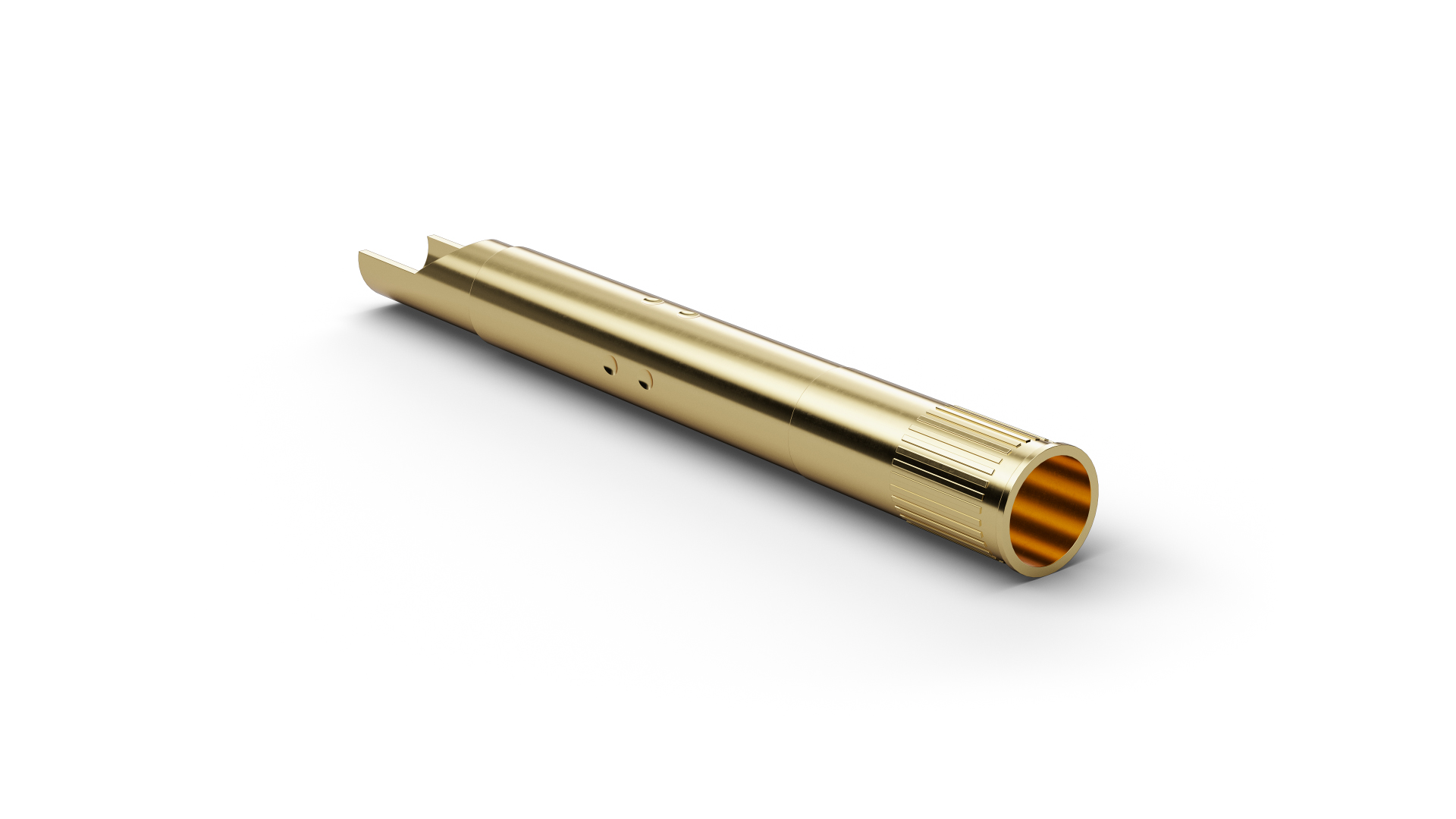

The receptacle H733LARDS1 (item number 1022713) guides and positions the compatible threaded probe in a defined location within the fixture or contacting assembly. The Receptacle H733LARDS1 includes a knurled section for mechanical retention in the mounting bore. The electrical connection of H733LARDS1 uses a solder connection. Key installation dimensions are outside diameter 3 mm, length 27 mm. The Receptacle H733LARDS1 is made of brass and is gold-plated.
