Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F075 |
| Pas (mm/mil) | 1,90 / 75 |
| Température | -45°C...+80°C |
| Définition complémentaire | IK03 |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33.4 |
| Hauteur hors tout (mm) | 8.1 |
| Diamètre du style de pointe (mm) | 1.2 |
| Diamètre du fût (mm) | 1.02 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 06 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Progressive |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 110 |
| Force du ressort (cN) | 280 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 4 |
| Résistance de contact typique (mΩ) | 20 |
Graphiques
Beschreibung des Produkts

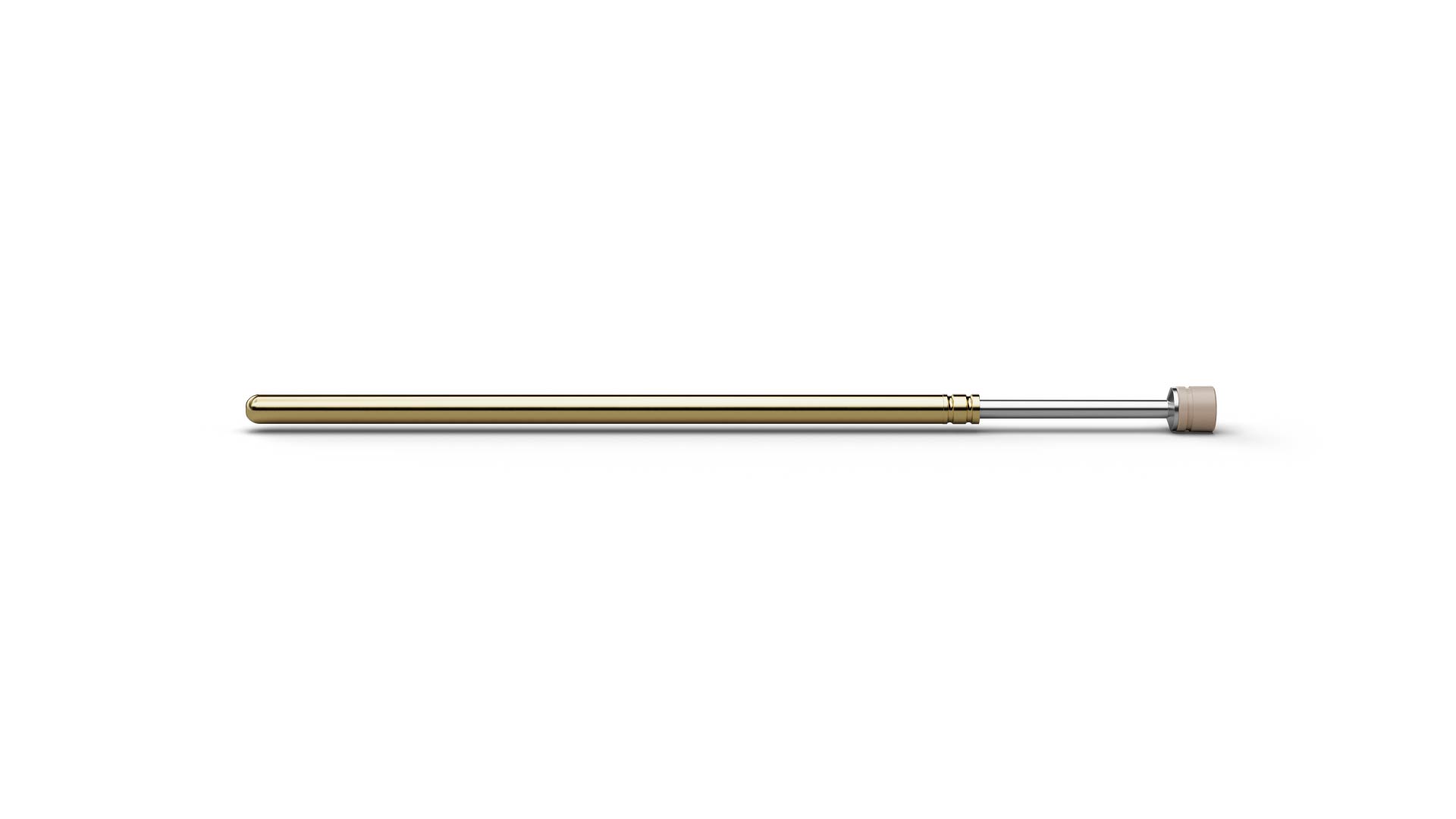

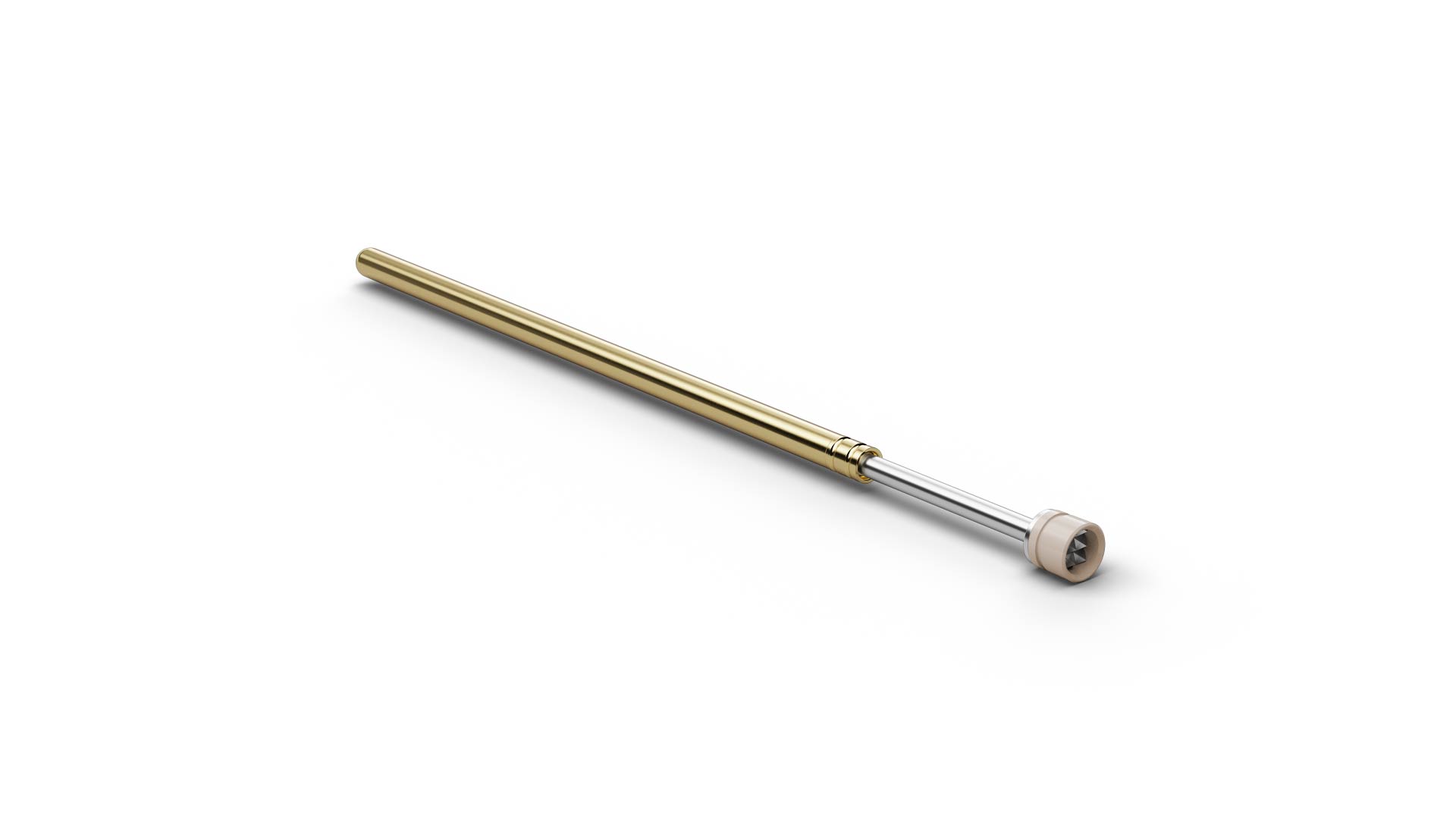

As a Basic Contact Probe, F07506B120P280IK03 (item number 1026390) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F07506B120P280IK03 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F07506B120P280IK03 combines a pitch of 1.9 mm / 75 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.2 mm. F07506B120P280IK03 operates with 280 cN spring force and 4.3 mm nominal travel. F07506B120P280IK03 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07506B120P280IK03 is made of beryllium copper and uses Progressive Coating.
