Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F727 |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 64.5 |
| Hauteur hors tout (mm) | 25.2 |
| Diamètre du style de pointe (mm) | 2 |
| Diamètre du fût (mm) | 1.65 |
| Diamètre du collet (mm) | 2 |
| Diamètre de la bague de serrage (mm) | 2 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 06 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 50 |
| Force du ressort (cN) | 150 |
| Course nominale (mm) | 12 |
| Course maximale (mm) | 14.5 |
| Précision de pointage +/- (mm) | 0.08 |
| Filetage | M1,6 |
| Taille d’outil (mm) | 1,7 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

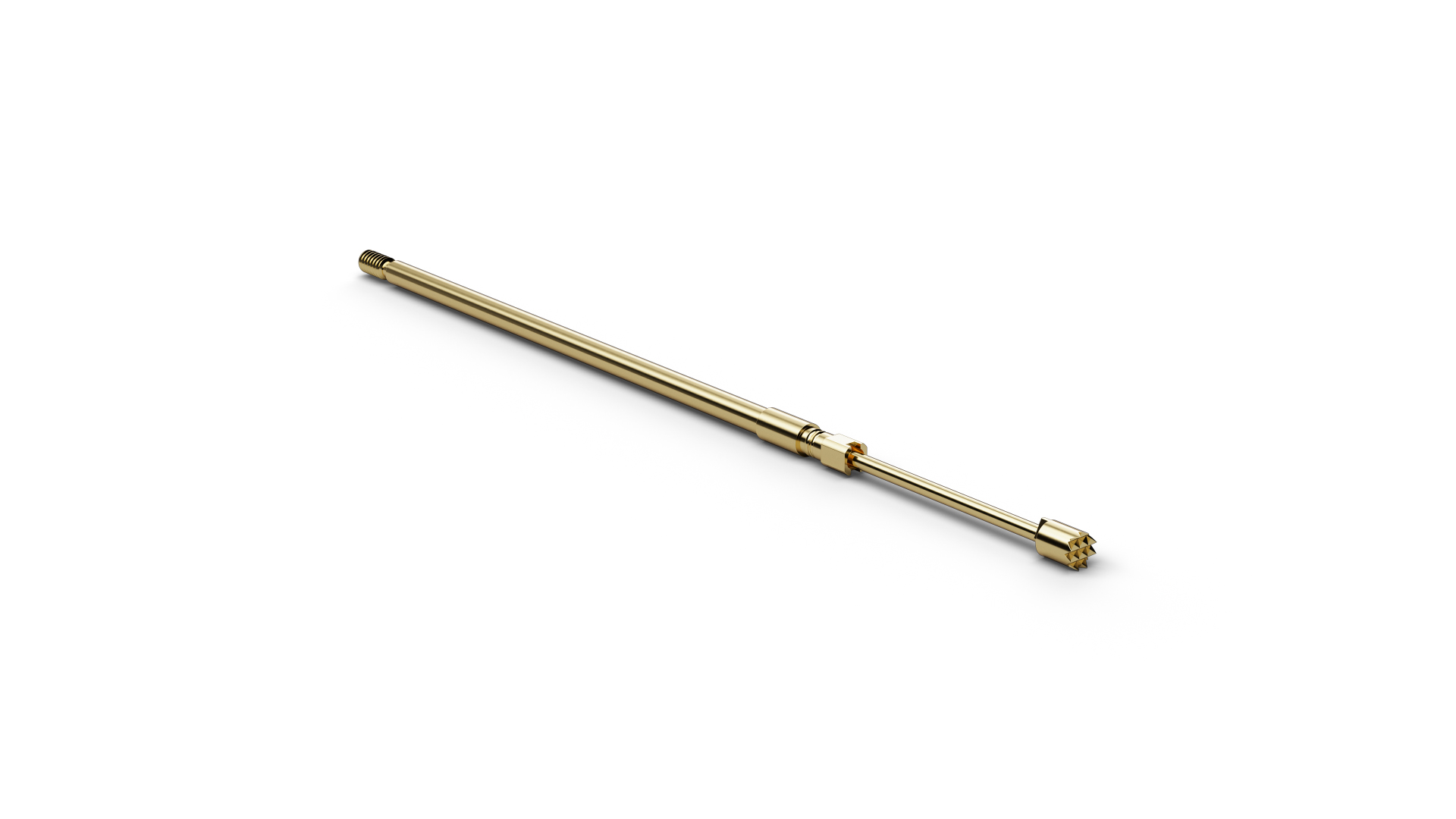

F72706B200G150 (item number 1027514) is a threaded Contact Probe for fixtures where the probe must remain securely in its installed position. The threaded mounting of F72706B200G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F72706B200G150 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F72706B200G150 is installed using a M1.6 thread. F72706B200G150 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm. Spring force is 150 cN at a nominal travel of 12 mm.
