Données techniques

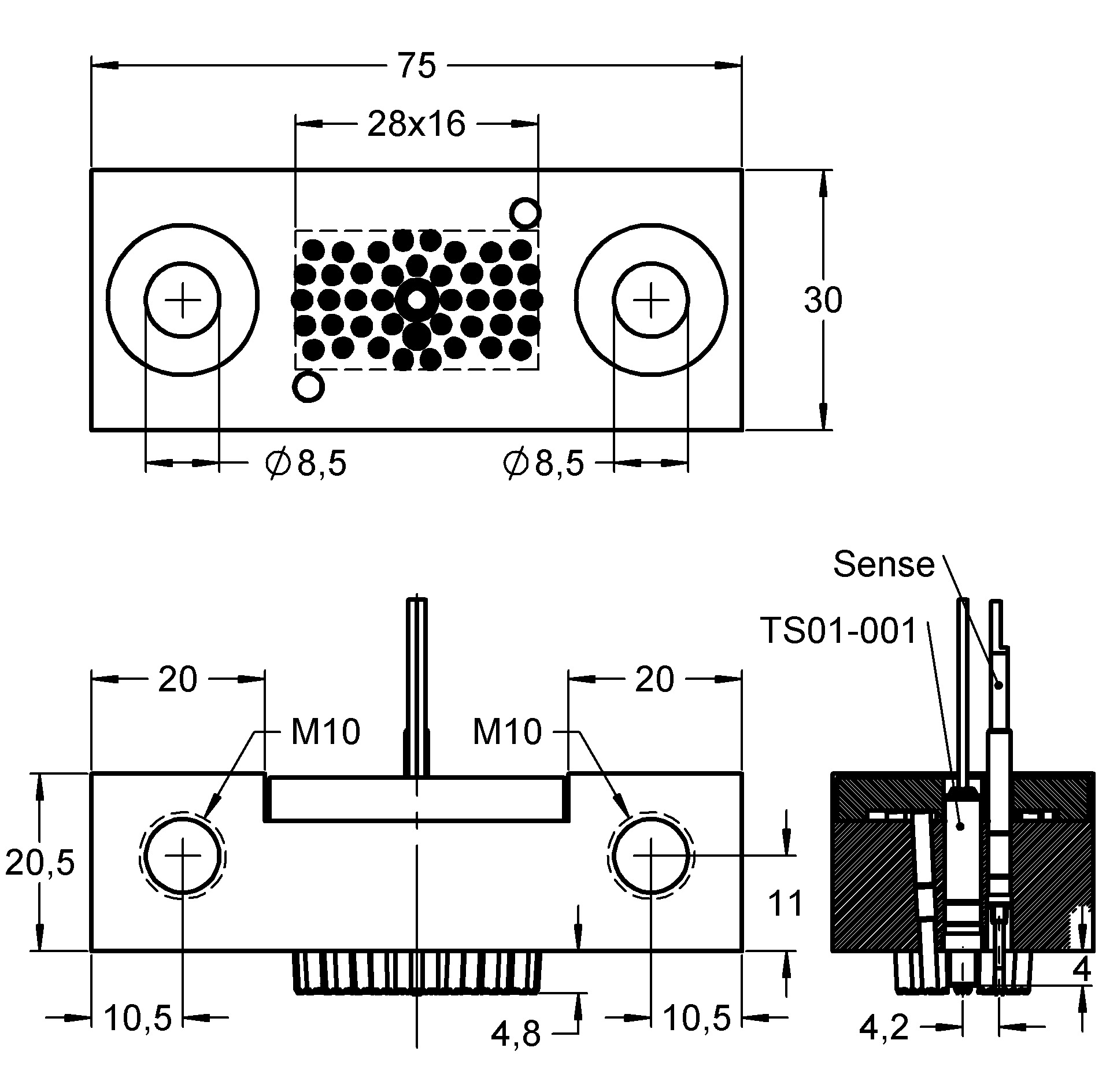

| Généralités | |
|---|---|
| Type/famille | HCB280 |
| Température | -45°C...+200°C |
| Définition complémentaire | A |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 75 |
| Hauteur hors tout (mm) | 5 |
| Diamètre du style de pointe (mm) | 1.8 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 6 |
| Matériau de la pointe | Beryllium copper |
| Revêtement de la pointe | Gold |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du bloc | Aluminium |
| Revêtement du bloc | Silver |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 7000 |
| Force du ressort (cN) | 24500 |
| Course nominale (mm) | 4 |
| Course maximale (mm) | 5 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 600 |

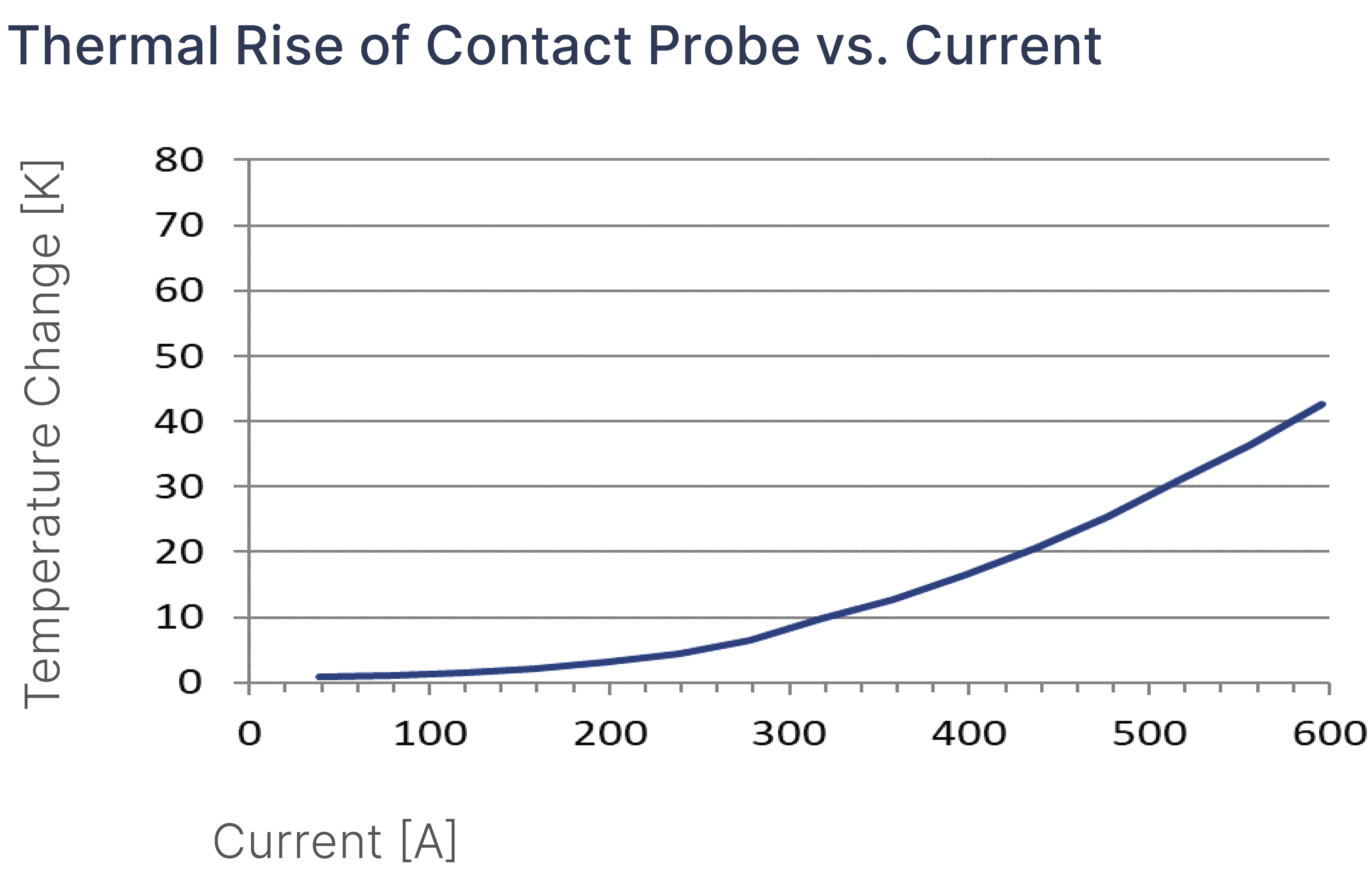

Graphiques

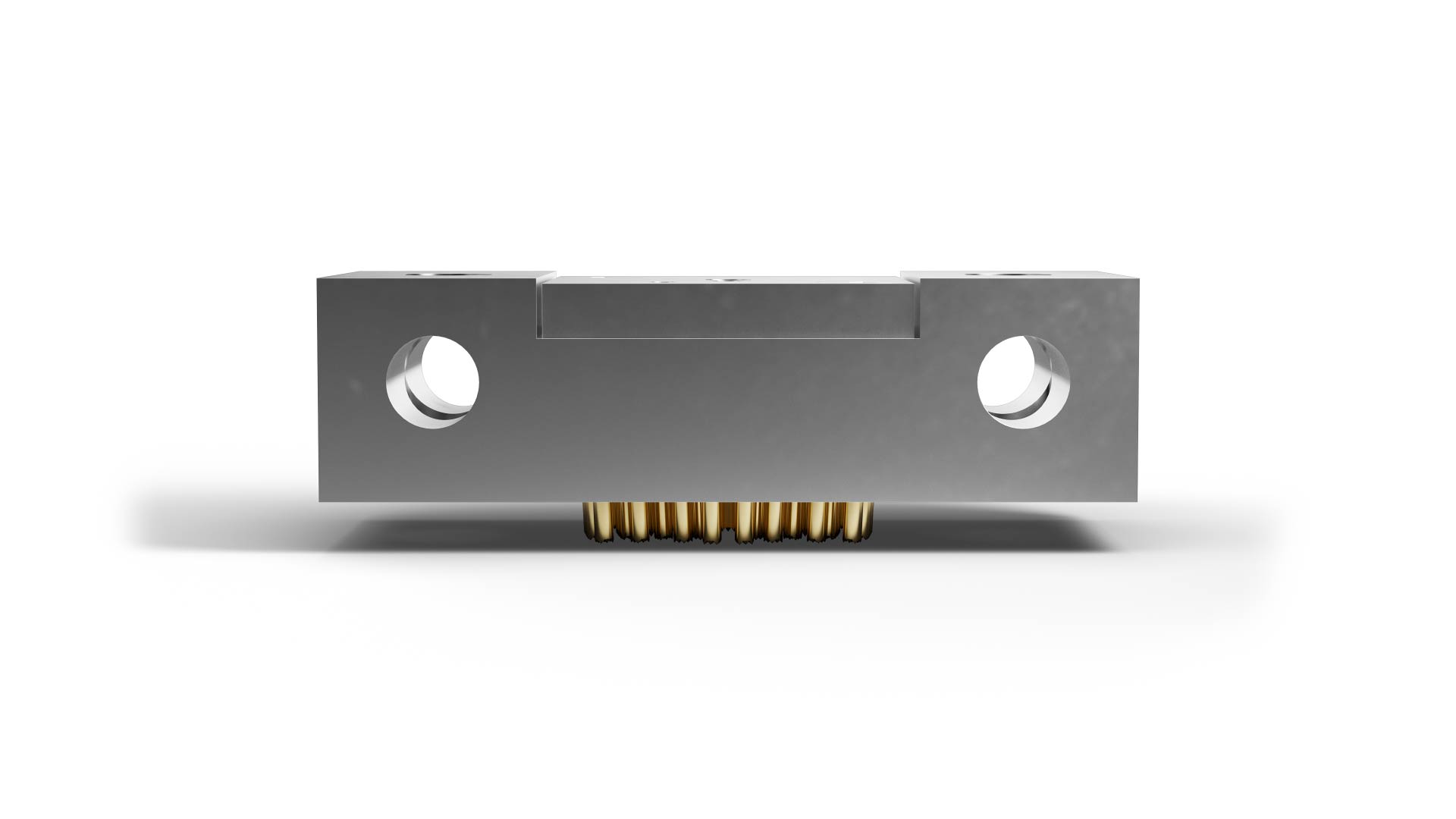

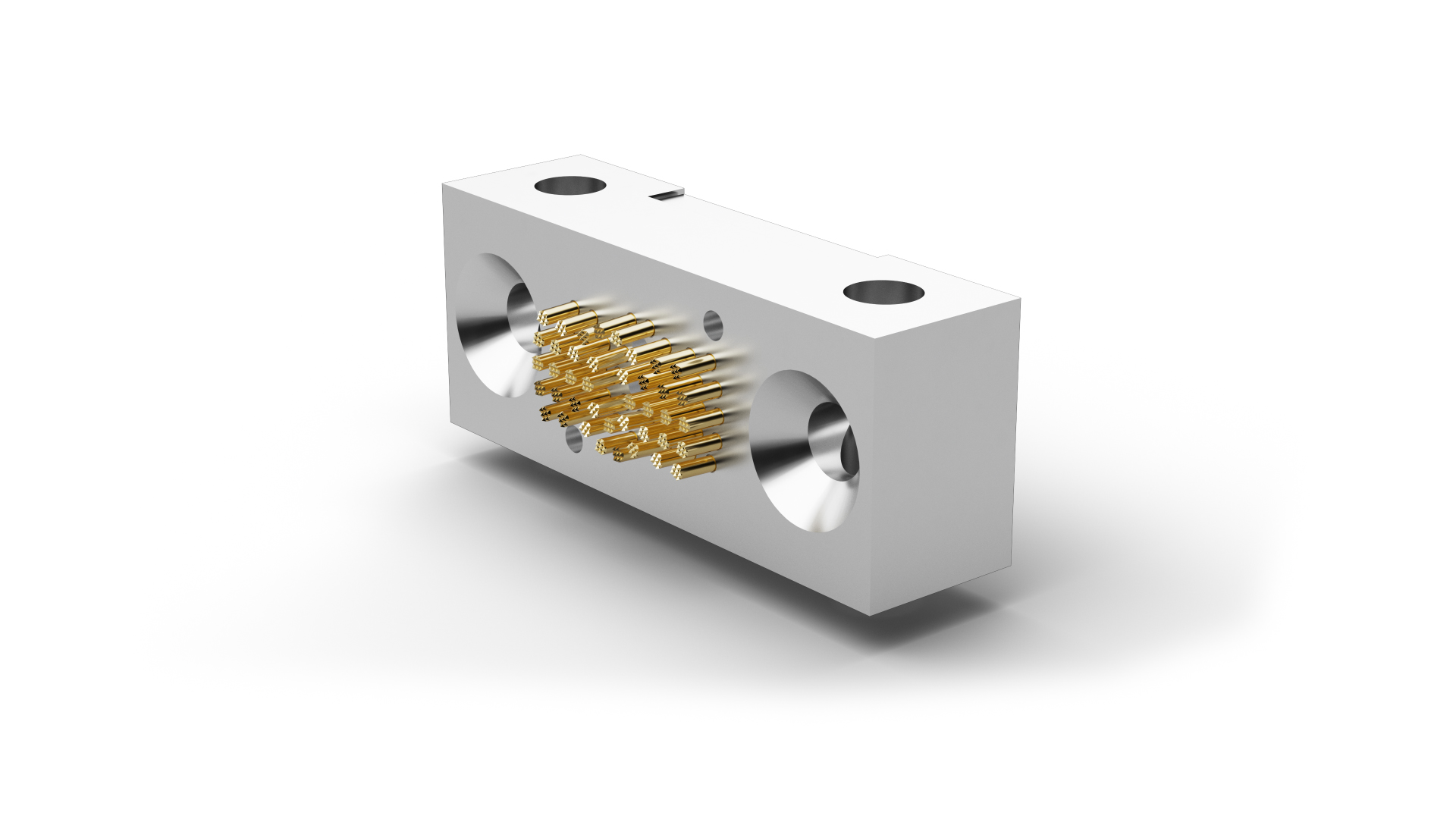

Beschreibung des Produkts
The High Current Block HCB280A6ALS245 (item number 1033721) is a connection element for test setups carrying high electrical currents. HCB280A6ALS245 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB280A6ALS245, the block design integrates robust current contacting into a defined interface; current rating, contact resistance and thermal conditions are central to fixture design. The intended application area for HCB280A6ALS245 includes battery contacting. The continuous-current rating of HCB280A6ALS245 is 600 A. HCB280A6ALS245 operates with 24500 cN spring force and 4 mm nominal travel.
