Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F100HP |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33.3 |
| Hauteur hors tout (mm) | 8.4 |
| Diamètre du style de pointe (mm) | 0.6 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 10 |
| Matériau du piston | Steel |
| Revêtement du piston | Progressive |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 200 |
| Force du ressort (cN) | 300 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 40 |
Graphiques
Beschreibung des Produkts

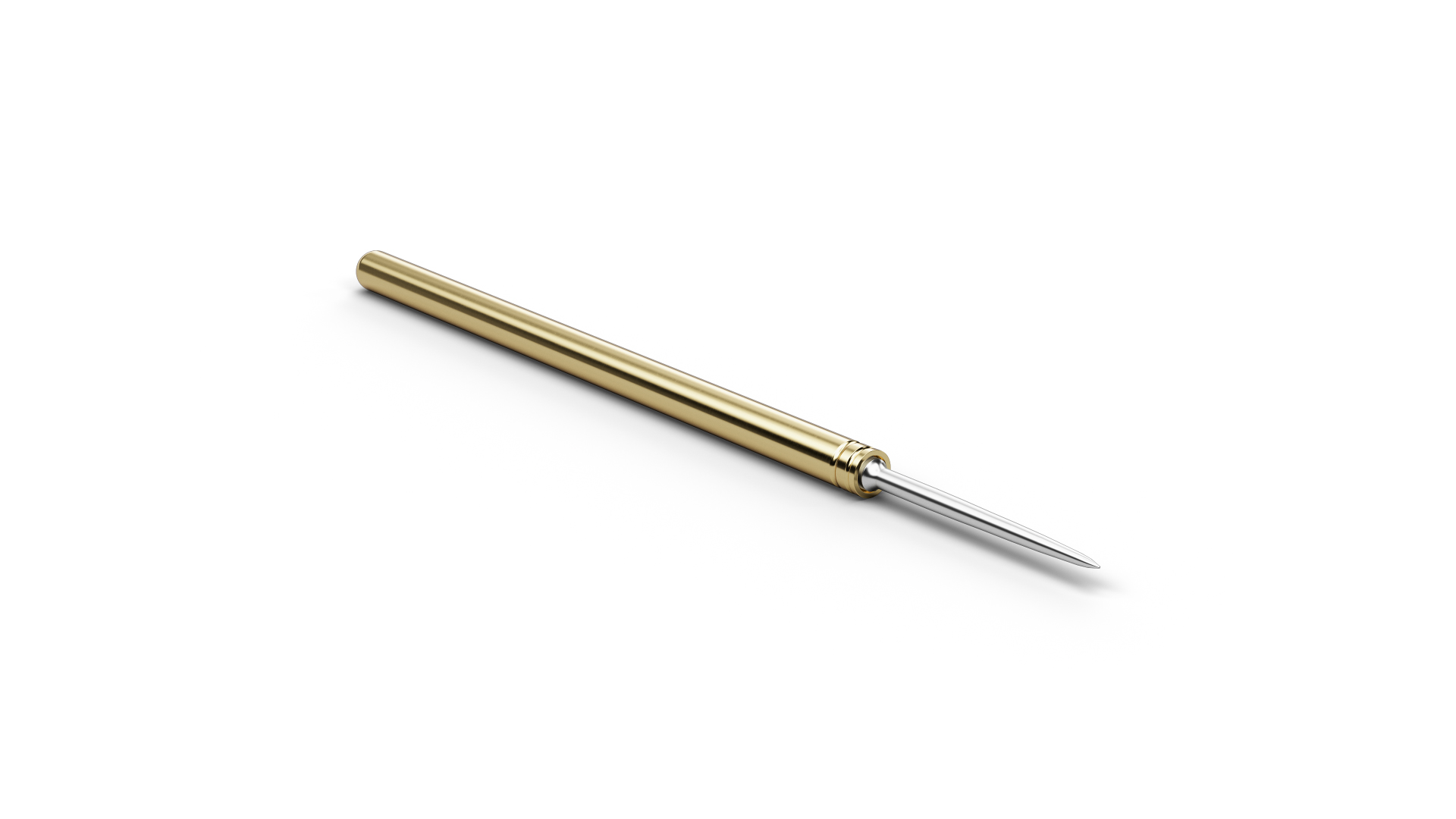

F10010S060P300HP (item number 1039808) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 10 (Flexible needle), F10010S060P300HP combines ICT/FCT use with a geometry intended for solder pads and vias. F10010S060P300HP combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.6 mm. For F10010S060P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. F10010S060P300HP is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. On F10010S060P300HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
