Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F829 |
| Pas (mm/mil) | 1,27 / 50 |
| Température | -45°C...+80°C |
| Dimensions | |
|---|---|

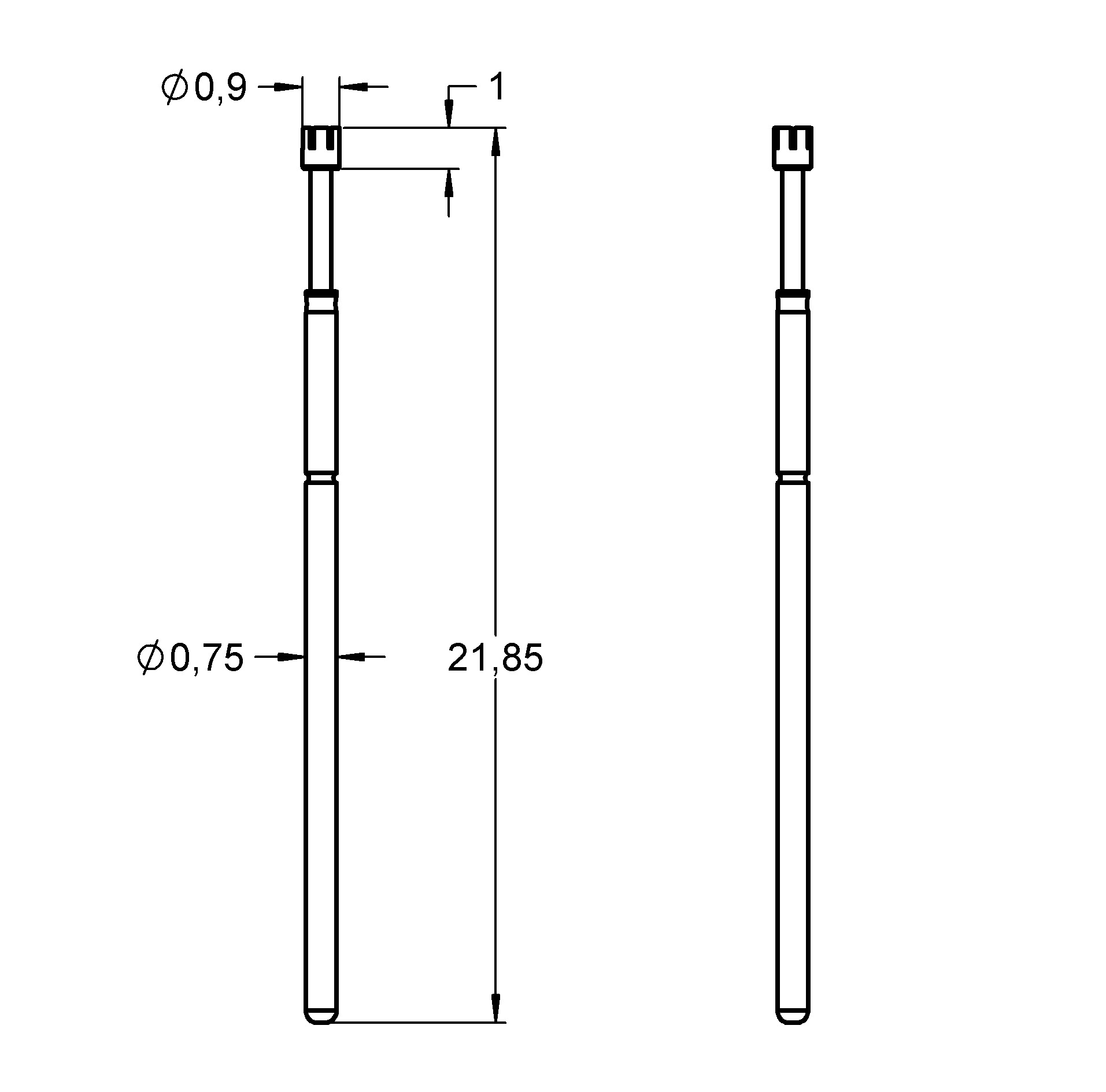

| Longueur totale (mm) | 21.85 |
| Hauteur hors tout (mm) | 4 |
| Diamètre du style de pointe (mm) | 0.9 |
| Diamètre du fût (mm) | 0.75 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 55 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Gold |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Gold |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 50 |
| Force du ressort (cN) | 12 |
| Course nominale (mm) | 2 |
| Course maximale (mm) | 3 |
| Précision de pointage +/- (mm) | 0.05 |
| DUT | HSD-M |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 3 |
| Résistance de contact typique (mΩ) | 25 |
Graphiques
Beschreibung des Produkts

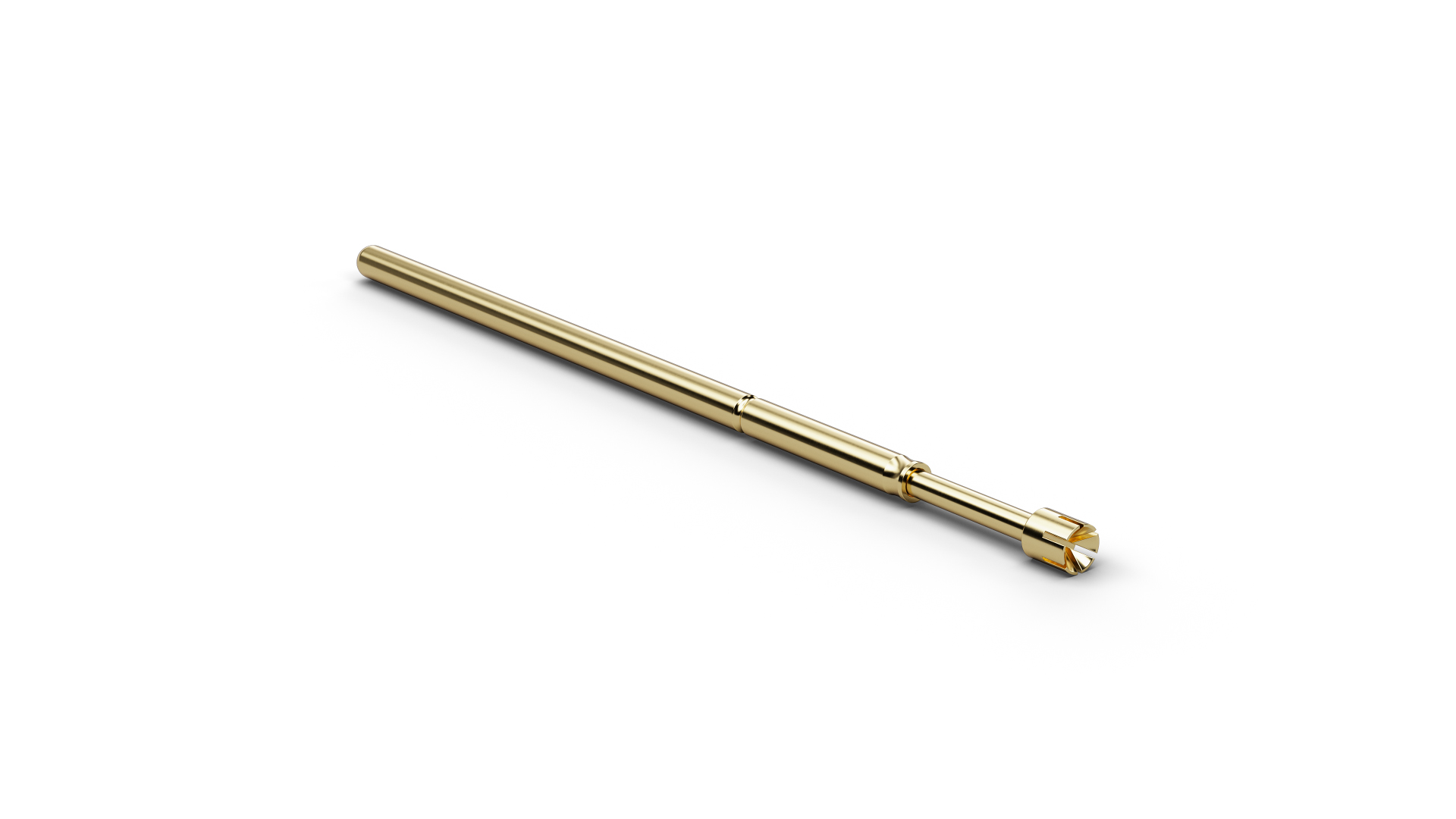

F82955B090G120 (item number 1043433) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 55 (Concave stepped (self-cleaning)), F82955B090G120 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F82955B090G120 combines a pitch of 1.27 mm / 50 mil with tip style 55 (Concave stepped (self-cleaning)) and a tip diameter of 0.9 mm. Spring force is 12 cN at a nominal travel of 2 mm. The electrical rating of F82955B090G120 combines 3 A continuous current with 25 mΩ typical contact resistance. The plunger in F82955B090G120 is made of beryllium copper and is gold-plated.
