Données techniques
| Généralités | |
|---|---|
| Type/famille | HC200 |
| Température | -45°C...+200°C |
| Définition complémentaire | D |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 46.9 |
| Hauteur hors tout (mm) | 24 |
| Diamètre du style de pointe (mm) | 20 |
| Diamètre du fût (mm) | 22 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 06 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Longtime Gold |
| Matériau du fût | Plastic |
| Revêtement du fût | Uncoated |
| Matériau du ressort | High-grade steel |
| Revêtement du ressort | Uncoated |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 3500 |
| Force du ressort (cN) | 7000 |
| Course nominale (mm) | 5.6 |
| Course maximale (mm) | 7 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 300 |
| Résistance de contact typique (mΩ) | 0.2 |
Graphiques
Beschreibung des Produkts

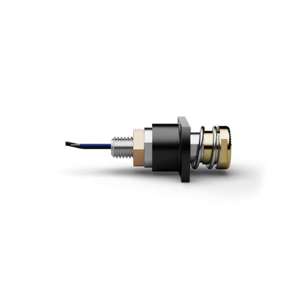

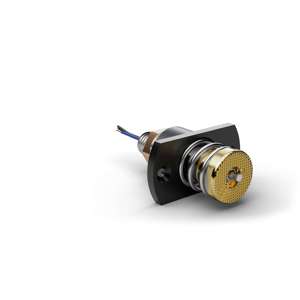

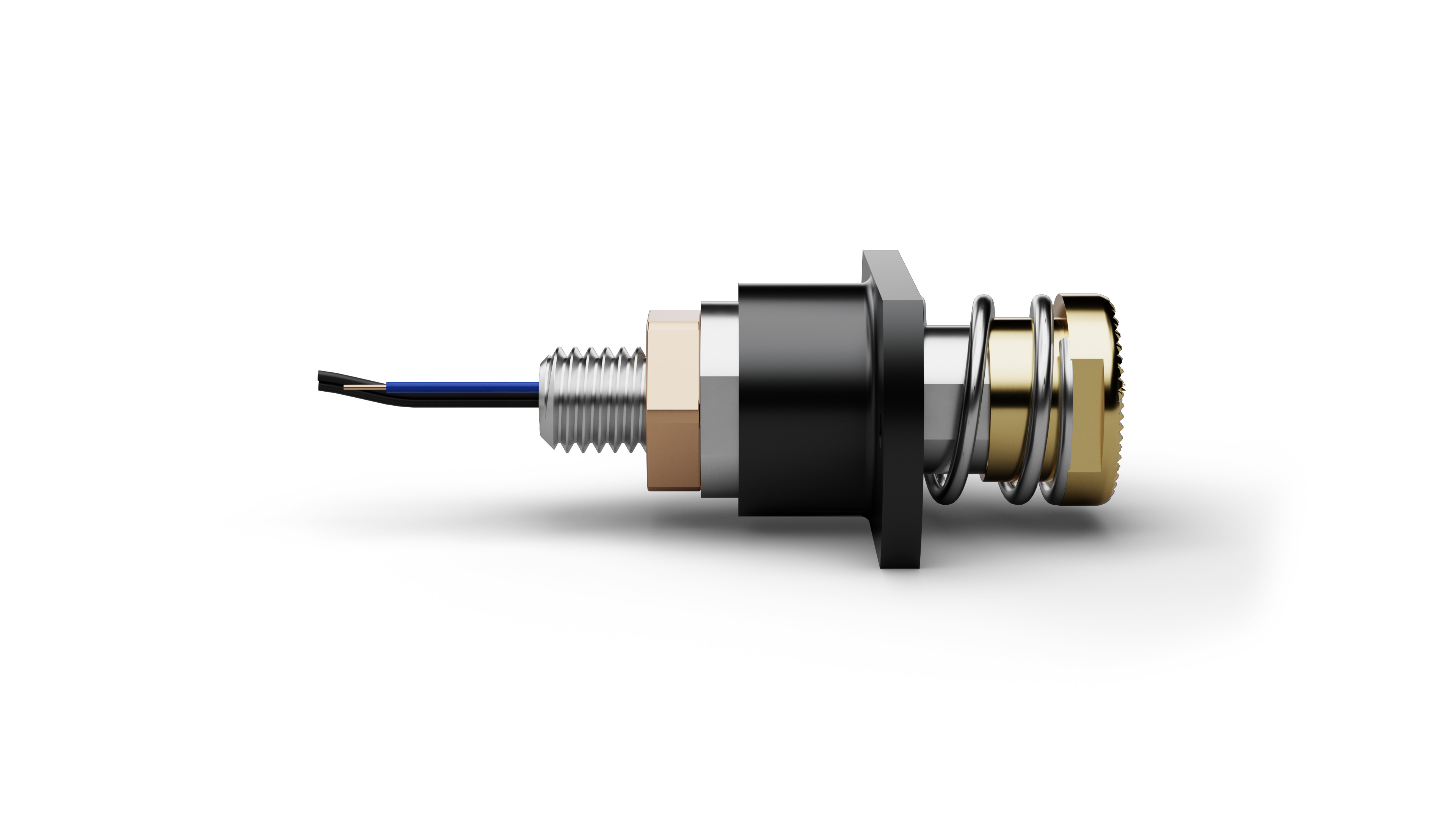

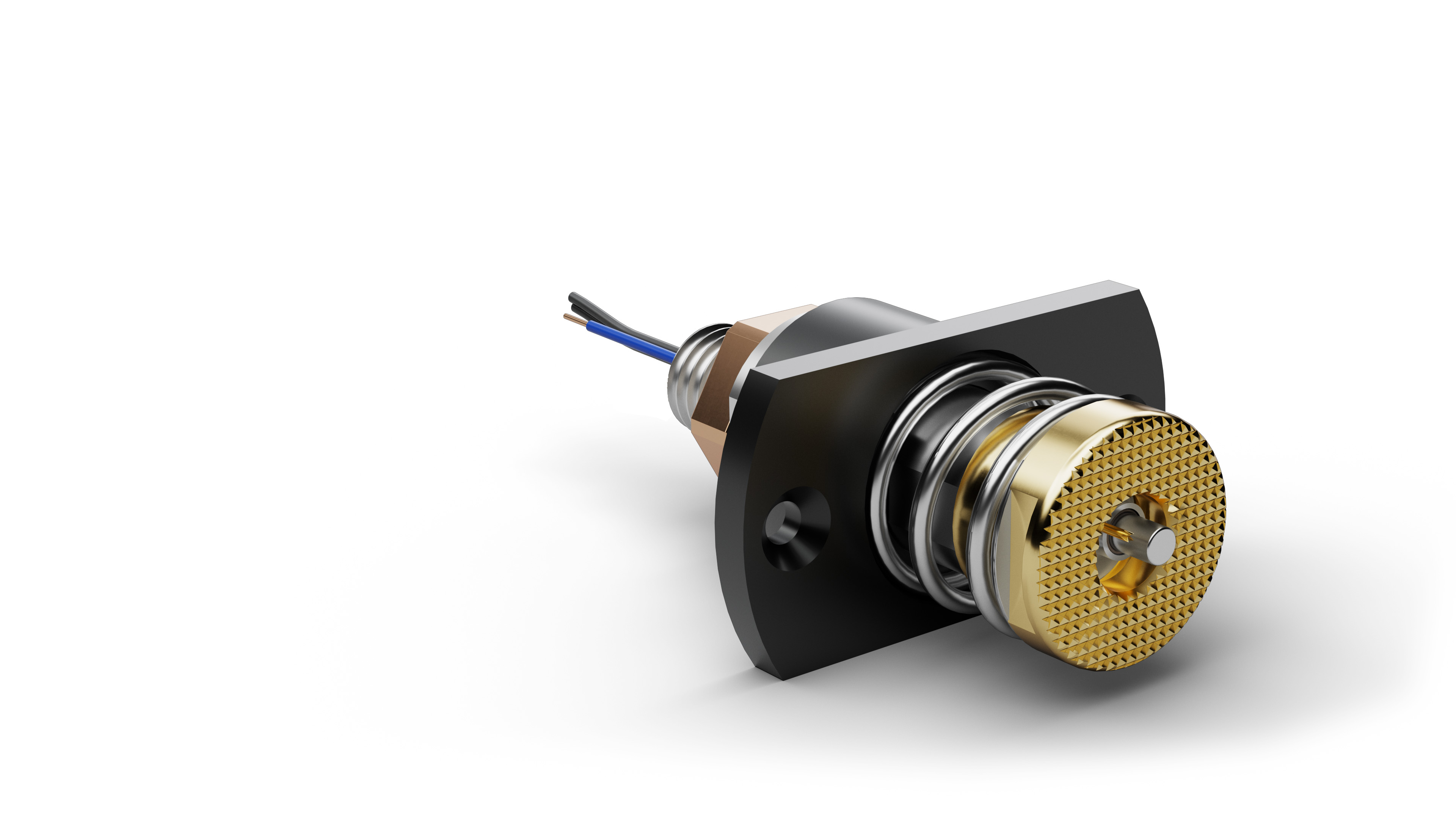

The High Current Probe HC200D06G73NTCF (item number 1125168) is designed for safe transmission of high electrical currents in test and contacting applications. HC200D06G73NTCF focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HC200D06G73NTCF, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HC200D06G73NTCF includes battery contacting. HC200D06G73NTCF is rated for 300 A continuous current with a typical contact resistance of 0.2 mΩ. HC200D06G73NTCF operates with 7000 cN spring force and 5.6 mm nominal travel.
