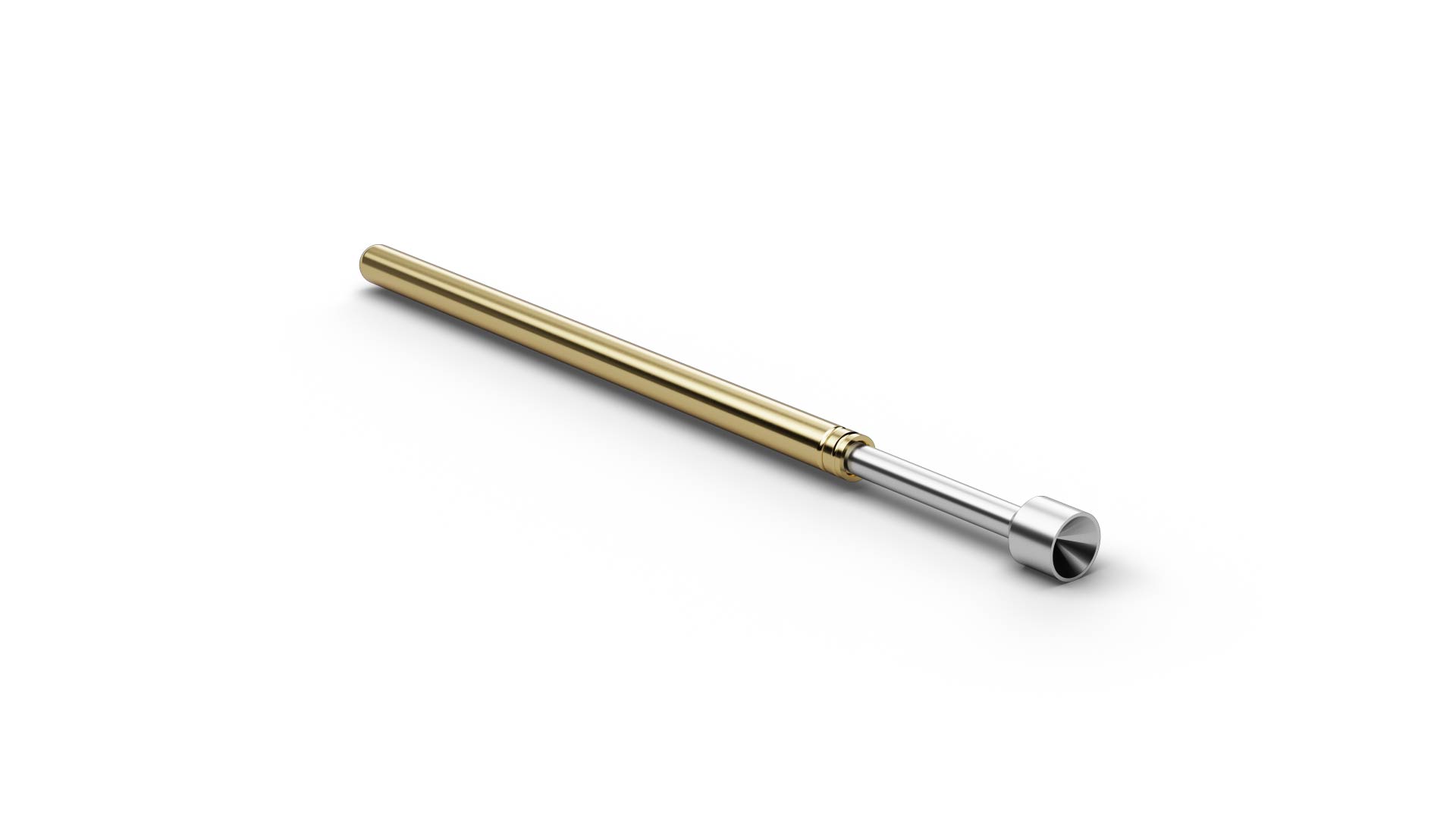

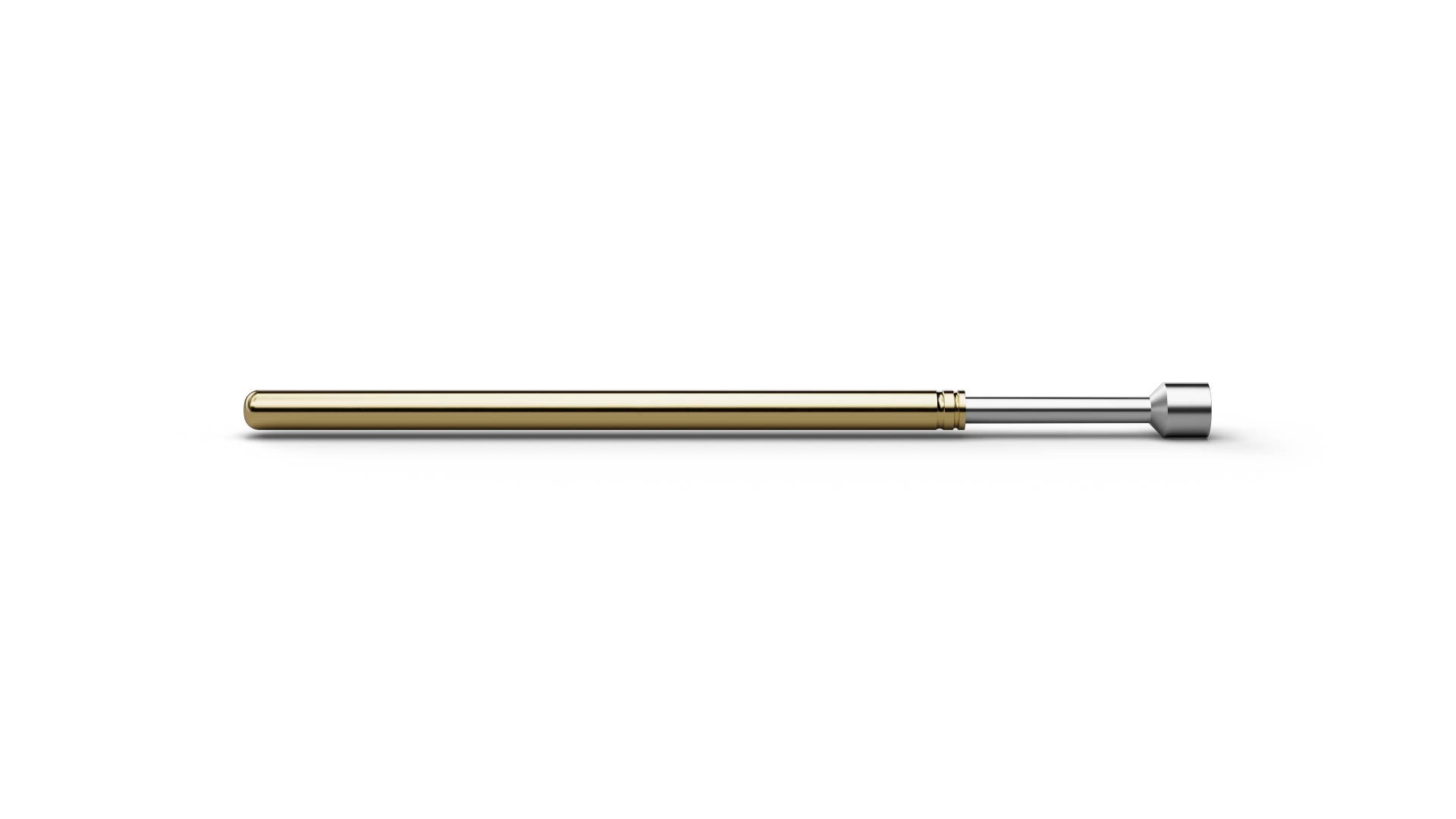

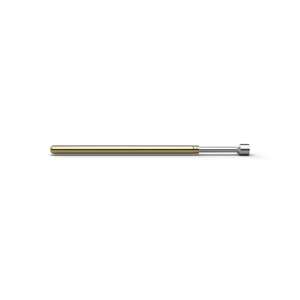

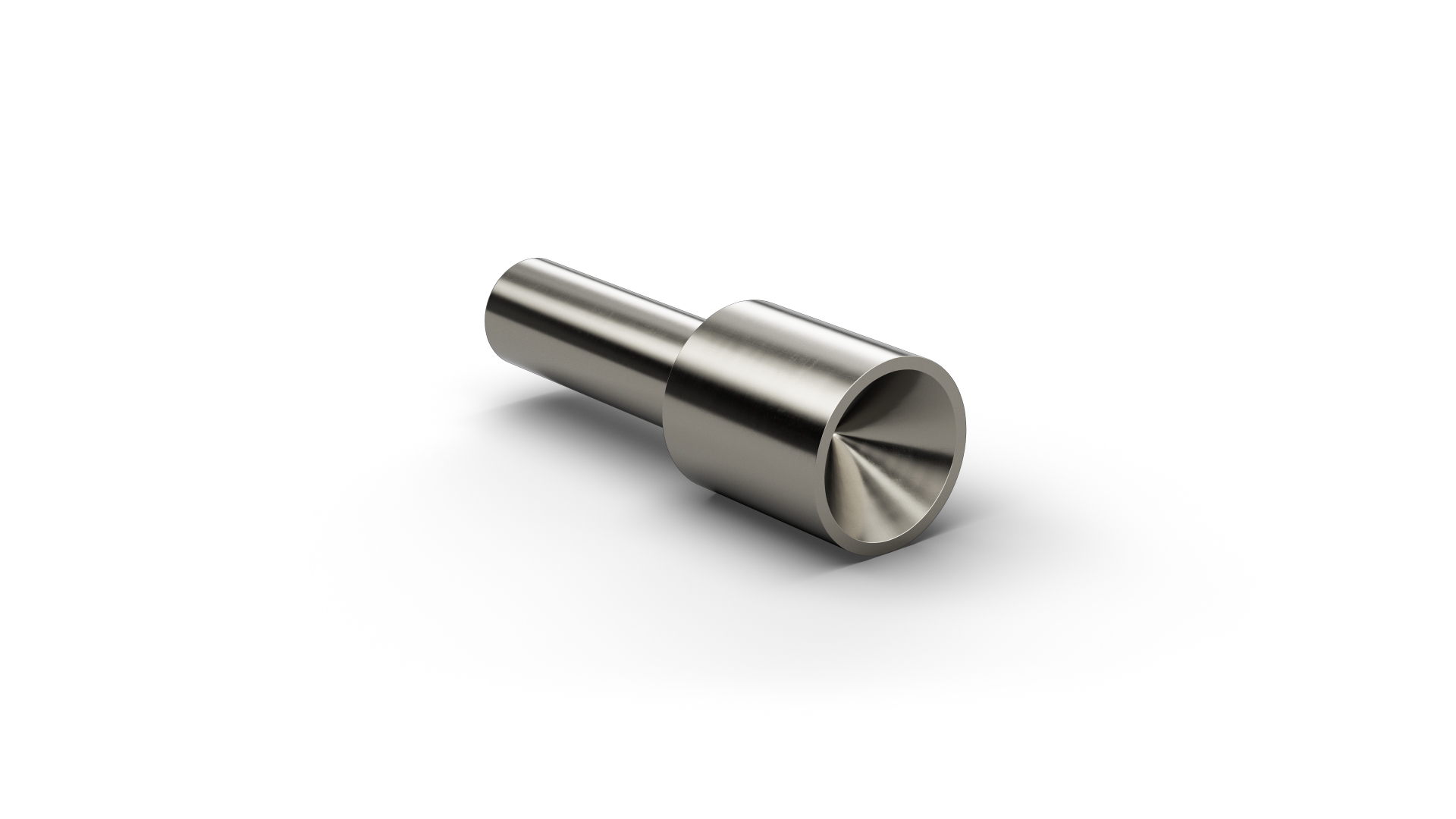

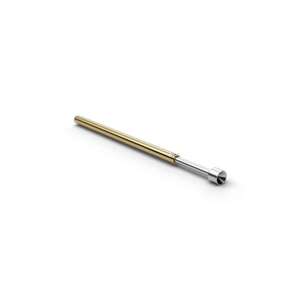

F10005S190P200HP (item number 1135050) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 05 (Concave stepped), F10005S190P200HP combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F10005S190P200HP combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.9 mm. F10005S190P200HP operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F10005S190P200HP combines 5 A continuous current with 40 mΩ typical contact resistance. The P/HP configuration of F10005S190P200HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
